Technische gegevens

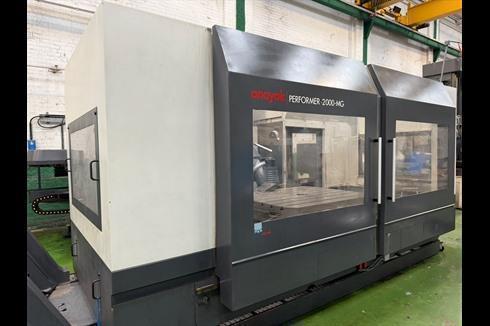

ANAYAK Performer 2000 MG9 Bed Type Milling Machine with 4th Axis Table. Heidenhain iTNC530. Year 2011

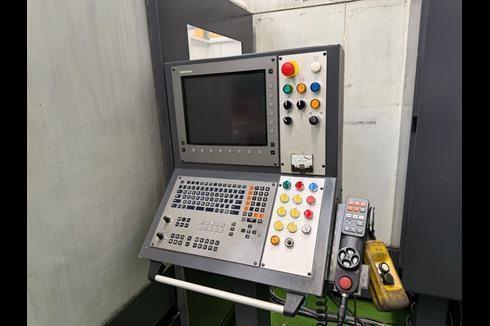

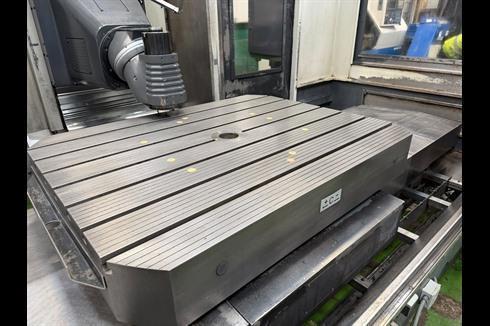

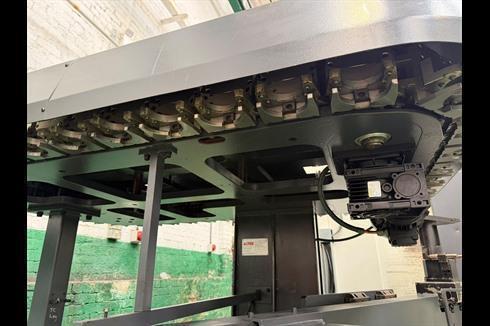

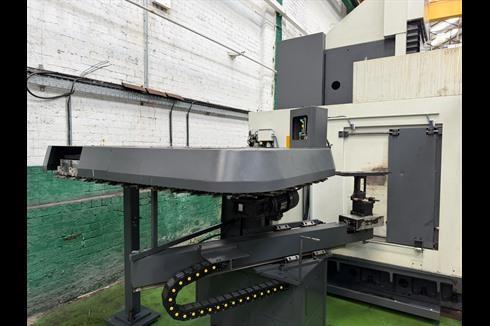

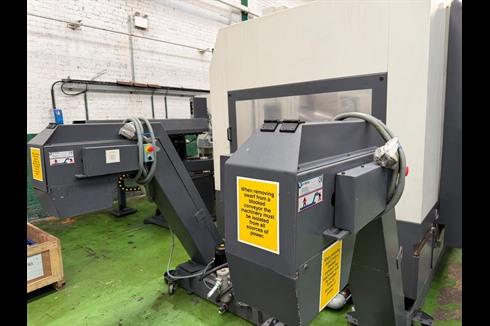

Longitudinal movement X axis 2,000 mm. Cross movement Y axis (capacity 1,010 mm ) 1,250 mm. Vertical movement Z axis1,100 mm. Rotary Table (MG9) Size 1,250 x 1,600 mm. Table thickness 200 mm. Max. weight on table 7,000 kg. Number of T slots 7. Central T slot size 22 mm H7. Rest of T slots 22 mm H12. Pitch of T slots 160 mm. Rotating torque 7,000 Nm. Maximum tangential torque 16,000 Nm. Table rotation C axis (continuous) 360.000 positions. Spindle taper DIN 69871.SK50. Speed range 60 to 4.000 rpm. Spindle power 24/38 kW. Feeds 0-10.000 mm/min. Rapids 20,000 mm/min. Feed “C” axis 5 rpm. Toolchanger 40 positions. Max. diameter of tools 150 mm. Max. diameter using all tools 120 mm. Max. tool weight 15 kg. Max. tool length 350 mm. Coolant capacity 30 litres/minute. Auto Universal Head. Twin Swarf Conveyors. Heidenhain iTNC530.
Machine dimensions L x W x H 5500mm x 4000mm x 2900 mm. Approximate weight 16000kg.
