Technische gegevens

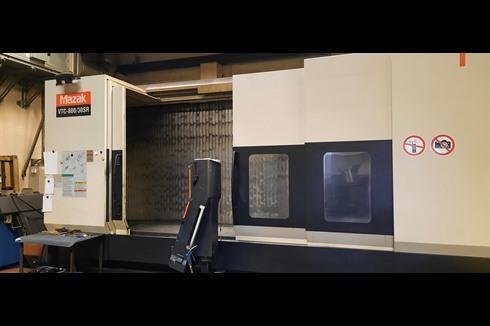

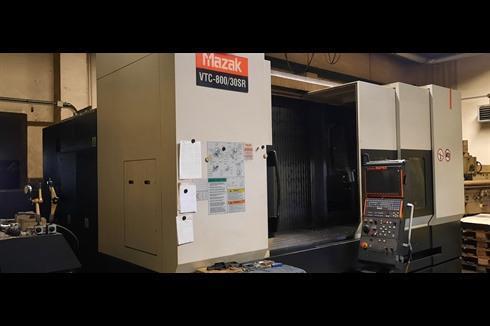

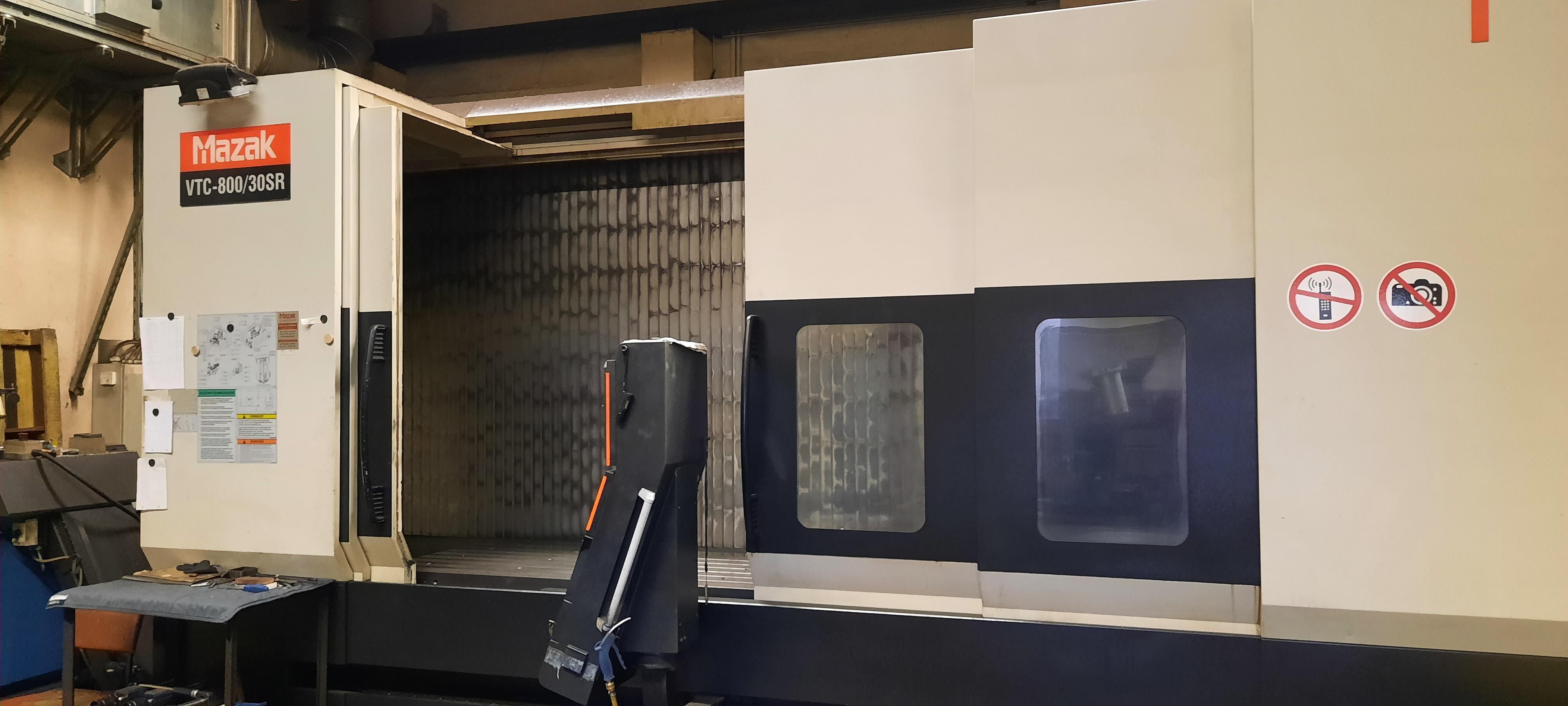

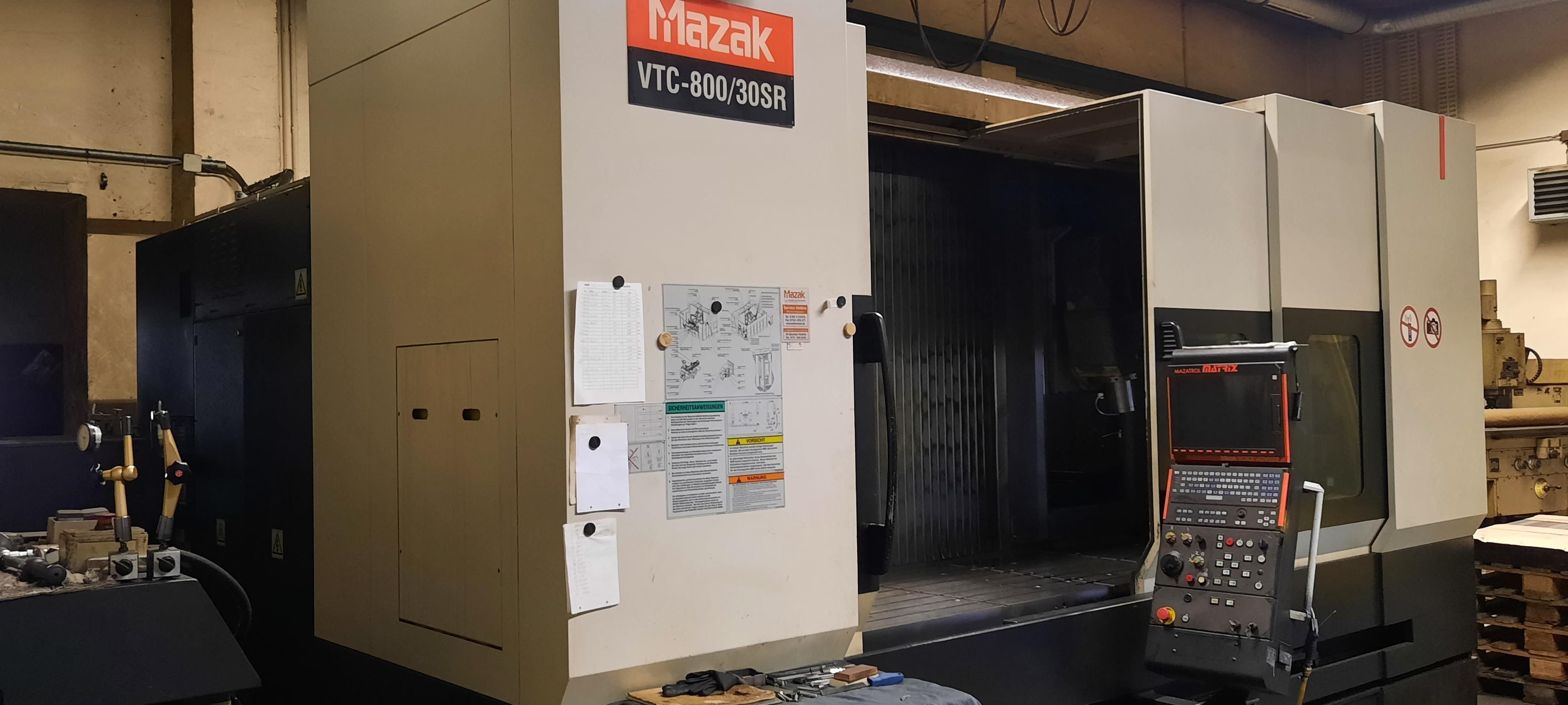

5-axis CNC machine (VMC)MAZAK - VTC 800 / 30 SR
MACH-ID 9144
Make: MAZAK
Type: VTC 800 / 30 SR
Control: Mazatrol Matrix Nexus
Year: 2009
Complex machining
RMP60 Measuring probe
Synchronical threading cutting
Chip conveyor
IKZ 15 Bar Coolant
Working hours 12700 H
NC Table 500 mm with 360.000 Pos
X - Travel: 3000mm
Y - Travel: 800mm
Z - Travel: 720mm
B - Axis: 110°
Table Length: 3500mm
Table Width: 820mm
Table load: 2500
Table Ø: 500mm
Feed rate X-Axis: 50000mm/min.
Feed rate Y-Axis: 50000mm/min.
Feed rate Z-Axis: 50000mm/min.
Spindle Taper: 40ISO/Bt/Mk
Power on spindle: 26kW
Speeds / ranges: 18000Rpm
ATC / revolver: 30
Coolant through spindle / Bar:15
Number of controlled axis: 5
Chip conveyor: Yes
Coolantsystem: Yes
Length: 5250mm
Width: 3550mm
Height: 3152mm
Weight: 15800kg

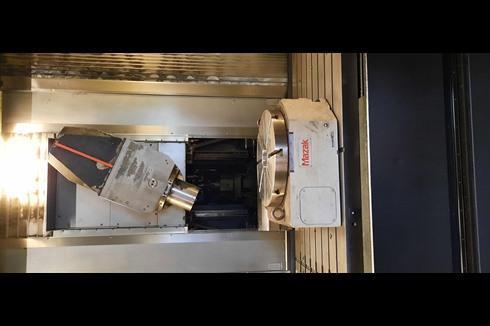

The Mazak VTC-800/30SR is an advanced 5-axis vertical machining center designed for precision machining of large and complex workpieces. It features a vertical traveling column and a swiveling B-axis head, allowing for milling at various angles.
Key Specifications:
- X-axis travel: 3000 mm
- Y-axis travel: 800 mm
- Z-axis travel: 720 mm
- Table size: 3500 mm x 820 mm
- Max. table load: 2500 kg
- Spindle: BT40, up to 12,000 rpm, 26 kW power
- B-axis range: ±110°
- Tool magazine: 30 positions (optional 48)
- Rapid travel (X/Y/Z): 50 m/min

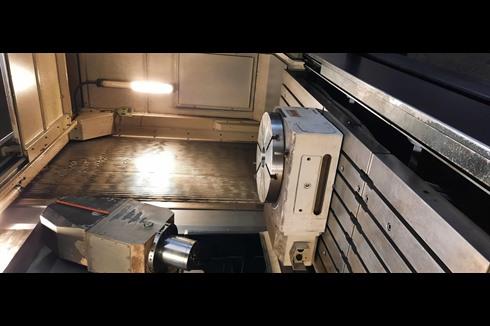

The optional NC rotary table enables full 5-axis simultaneous machining, ideal for applications in aerospace, mold making and other industries where precision and flexibility are essential. The machine can also be equipped with a center partition, making it possible to machine on one side while a new workpiece is being placed on the other side, increasing productivity.
In short, the VTC-800/30SR offers a combination of power, precision and versatility for demanding machining applications.
