Technische gegevens

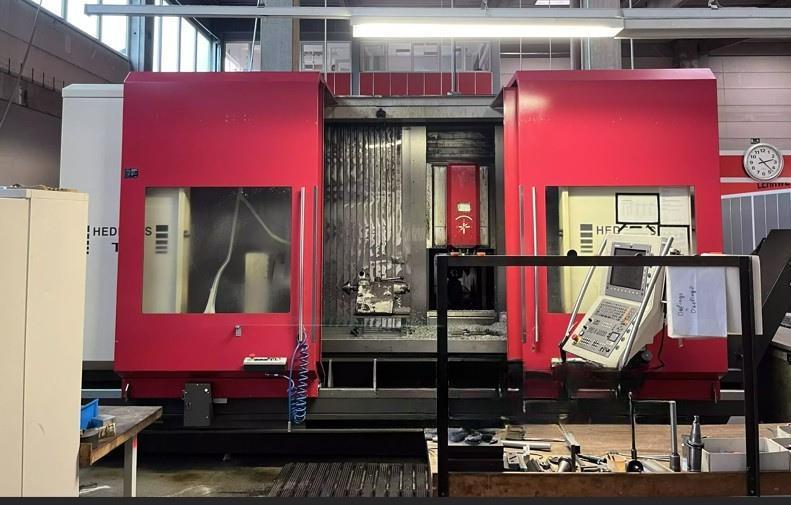

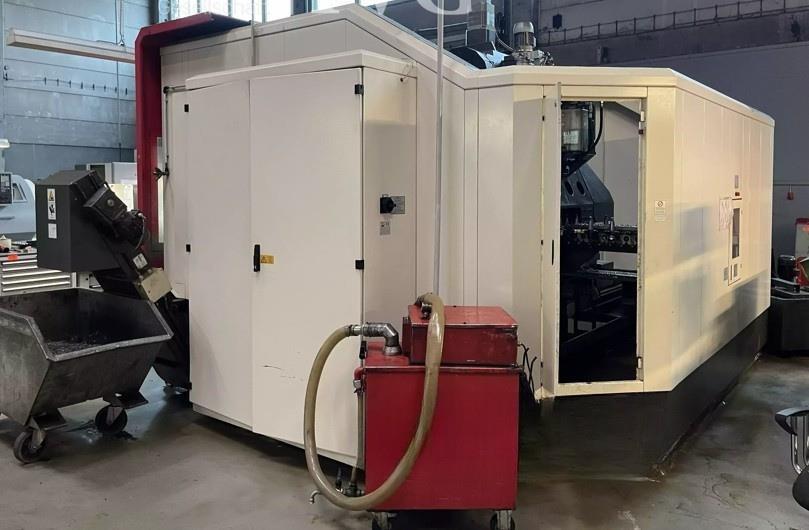

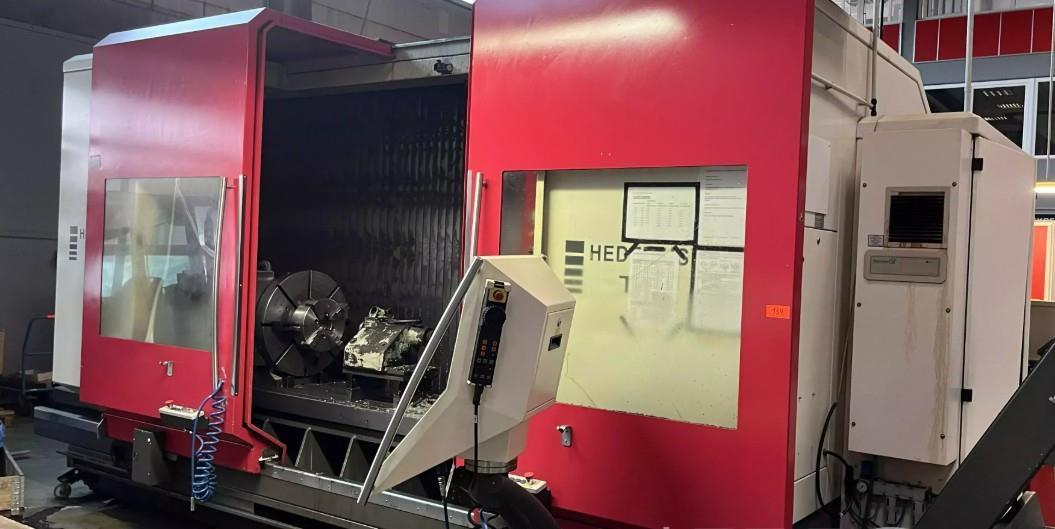

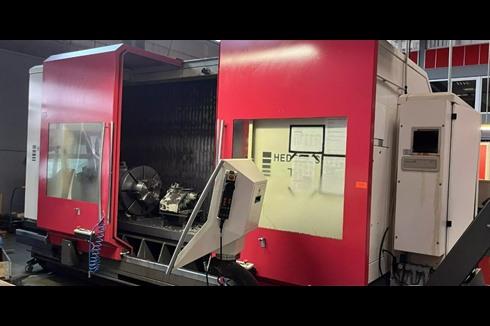

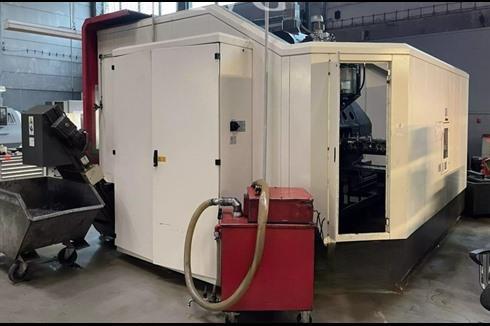

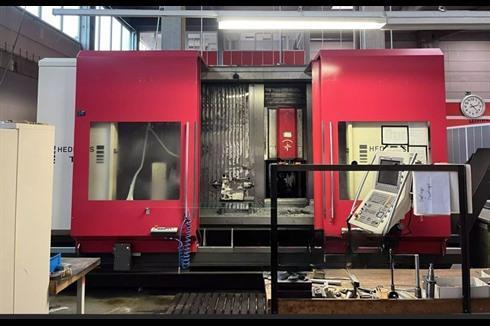

5-axis CNC machine (VMC)Hedelius - Tiltenta T6-2300
MACH-ID 9147
Make: Hedelius
Type: Tiltenta T6-2300
Control: HeidenHain iTNC530
Year: 2005
Optional NC-Rotary Table
Working area 750 x 550 mm
Table load 800 Kg
Torq on table 1600 Nm
Rotation speed 22 Rpm
2 x 850 mm pendel job
HeidenHain HR 410 handwheel
HeidenHain iTNC530
X - Travel: 2300mm
Y - Travel: 630mm
Z - Travel: 810mm
A - Axis: - 92 to + 92°
B - Axis: 360.000°
Table Length: 2900mm
Table Width: 630mm
Table load: 2000
Feed rate X-Axis: 60000mm/min.
Feed rate Y-Axis: 60000mm/min.
Feed rate Z-Axis: 60000mm/min.
Spindle Taper: 40ISO/Bt/Mk
Power on spindle: 26,5kW
Speeds / ranges: 12000Rpm
ATC / revolver: 40
Coolant through spindle / Bar:20
Number of controlled axis: 5
Chip conveyor: Yes
Coolantsystem: Yes
Length: 7500mm
Width: 3250mm
Height: 3250mm
Weight: 16800kg
Hedelius Tiltenta T6/2300 is an advanced 5-axis CNC machining centre designed for precision machining of medium to large workpieces. It combines a swivelling main spindle with an integrated NC rotary table, ensuring versatility and accuracy.
Key specifications:
- X-axis travel: 2300 mm
- Y-axis travel: 600 mm
- Z-axis travel: 695 mm
- Spindle power: 35 kW
- Max. speed: 12,000 rpm
- Tool magazine: 40 positions
- Tool holder: DIN 69871-A40
- Control: Heidenhain iTNC 530
- Max. workpiece weight on rotary table: 900 kg
This machine is ideal for applications in aerospace, mould making and general engineering, where precision and flexibility are essential. The combination of a swiveling spindle and a powerful rotary table enables complex workpieces to be machined in a single clamping operation, increasing efficiency and reducing setup times.
