Technische gegevens

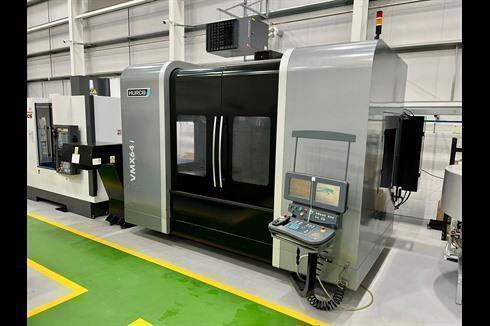

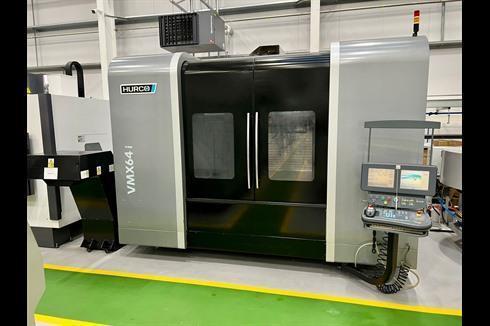

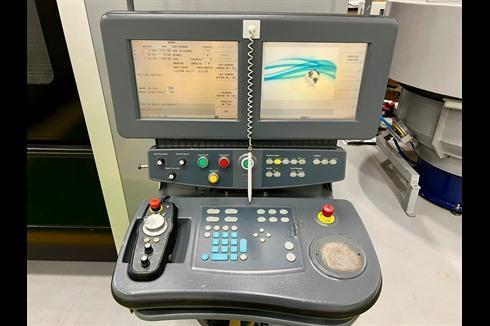

HURCO VMX64i Vertical Machining Centre with Max Control. Year 2013

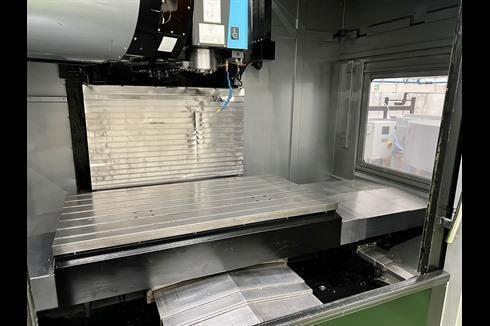

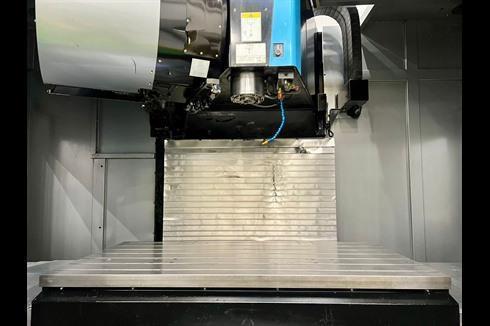

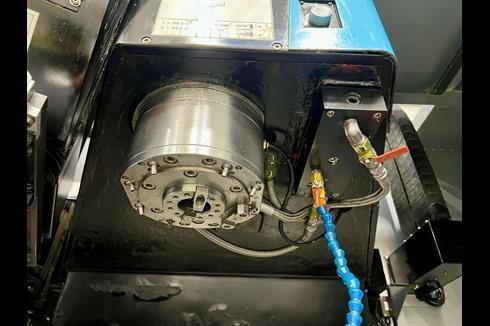

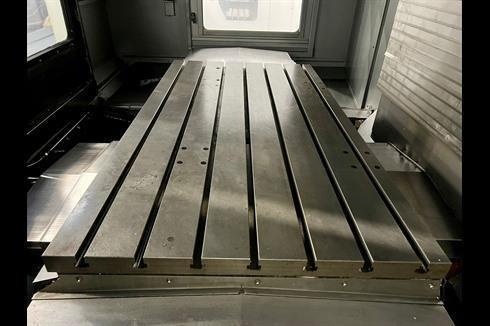

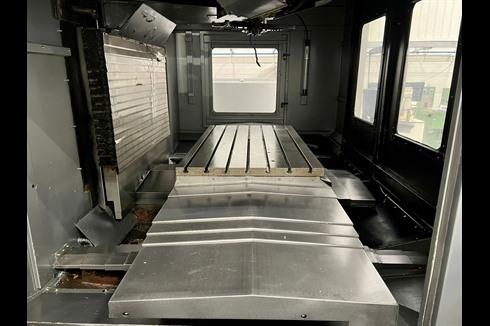

Table size 1676mm × 889mm. Travels X/Y/Z 1625/864/762. T-Slot Size 7 x 18mm. Max. Weight on Table 2,722 kg. Spindle Nose to Table (min/max) 127mm/890 mm. Spindle Taper BT40. Maximum Spindle Speed 12,000 rpm. Spindle Power (peak – 1 min) 22.2 kW. Spindle Torque (peak – 1 min) 353 Nm @ 750 rpm. Number Of Tools 32. Max Tool Diameter 125mm. Max Tool Length 300mm. Max Tool Weight 15Kg. Rapid Traverse X/Y/Z Axis 18/18/13.5 m/min. Max Programmable Feedrate 13.5 m/min.
Machine dimensions L x W x H 6338mm x 4496mm x 3335mm. Approximate weight 14,600 kg
Handelaar: GM MACHINERY LTD
Prijsaanvraag
