Technische gegevens

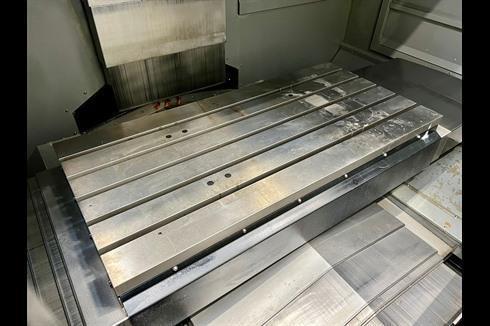

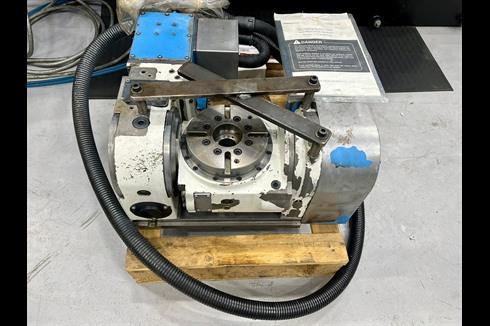

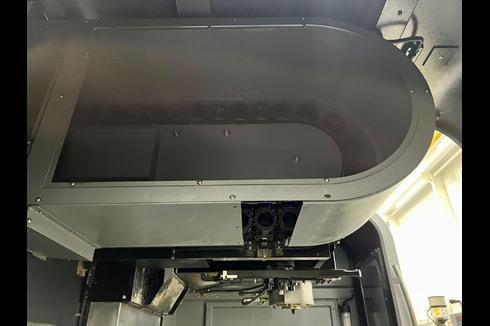

Travels X/Y/X 1067/610/610mm. T-Slot Size 5 x 18mm. Max. Weight on Table 1750Kg. Table Size 1,270 x 610mm. Spindle Nose to Table 152mm. Max Spindle Speed 12,000RPM. Spindle Power 18Kw. Spindle Torque 237 Nm @ 1450 rpm. Tool Type BT40. Number of tools 40. Max Tool Diameter 80mm. Max Tool Length 300mm. Max Tool Weight 7Kg. Rapid Traverse X,Y,Z Axis 38, 38, 32 m/min. Max Programmable Feedrate 20 m/min. Helical Ramp. Simultaneous 5 Axis Machining. Ulti-motion. Tool Change optimization. 5 Axis Trunion Table. Sward Conveyor. Filtermist.
Dimensions L x W x H 3864 x 3729 x 2917mm.
Weight 6760Kg
Handelaar: GM MACHINERY LTD
Prijsaanvraag
