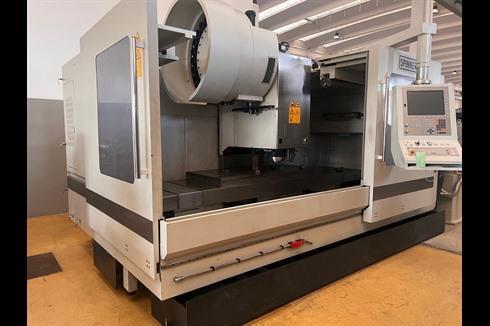

Spinner - MVC 1600-B

Spinner - MVC 1600-B
  • Spinner - MVC 1600-B
  • Spinner - MVC 1600-B
  • Spinner - MVC 1600-B

Prijsaanvraag

Technische gegevens

  • Tafellengte1800 mm
  • Tafelbreedte800 mm
  • Langs X1600 mm
  • Dwars Y800 mm
  • Vertikaal Z700 mm
  • Posities ATC24
  • Aantal pallets0
  • CNC MerkHeidenhain
  • CNC Model620

BOX GUIDEWAYS
OPTICAL LINES

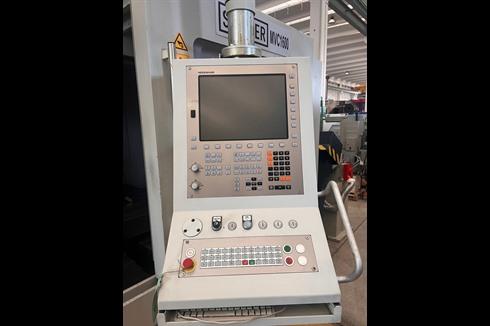

Numerical control HEIDENHAIN 620
X-axis travel mm 1.600
Y-axis travel mm 800
Z-axis travel mm 700
Rapid traverse mm/min 18

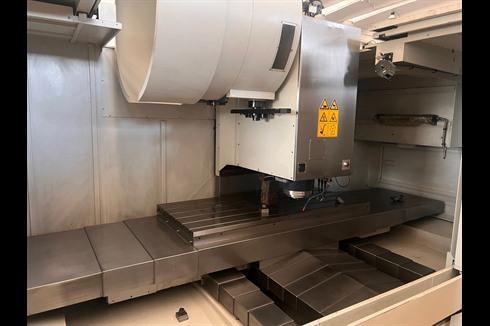

Table dimensions mm 1.800 x 800
Max workpiece weight Kg 2.000
Spindle connection ISO 50 Din 68971
Spindle speed rpm 6.000
Power kW 37
Total installed power kW 40
Maximum spindle speed rpm
Automatic tool changer 24 positions
Dimensions m (L x W x H) 4.26 x 3.33 x 2.85
Weight kg 12.000
EQUIPPED WITH:
Chain type chip converyor
Through spindle coolant pump GRUNDFOS 20 bar with separate tank and paper filter

USED MACHINE
YEAR 2016

Handelaar: BENTIVOGLIO MACCHINE UTENSILI S.R.L

BENTIVOGLIO MACCHINE UTENSILI S.R.L
