  • MerkDeckel
  • Type/ModelDC 50 V
  • Voorraad nummer13503
  • Bouwjaar1993
  • Verkoopprijs€ 000
  • WebsiteDC 50 V

Technische gegevens

  • Tafellengte mm
  • Tafelbreedte mm
  • Langs X mm
  • Dwars Y mm
  • Vertikaal Z mm
  • Posities ATC
  • Aantal pallets
  • CNC Merk
  • CNC Model

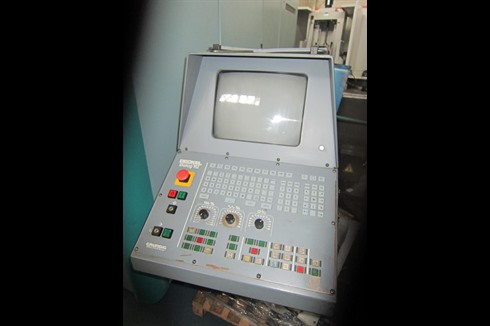

Control: GRUNDIG DIALOG 112
Technical data
Table length: 700 mm
Table width: 400 mm
Longitudinal travel (X-axis): 650 mm
Transversal travel (y-axis): 500 mm
Vertical travel (z axis): 500 mm
Tool changer:
Number of tools: 20
Spindle nose SK: 40
Vertical spindle speeds:
stepless
from: 20 rpm
up to: 8000 rpm
Feeds:
longitudinal from: 0 mm/min
up to: 10000 mm/min
transversal from: 0 mm/min
up to: 10000 mm/min
vertical from: 0 mm/min
up to: 10000 mm/min
Rapid traverse:: 15 m/min
Voltage 50 Hz 3x: 380 Volt
Spindle motor: 15 kW
Total power required: 35 kW
Machine's weight about: 6500 kg
Overall dimensions machine:
Length: 4000 mm
Width: 3000 mm
Height: 3000 mm
Various accessories:
Dividing attachment 4th axis
