EMCO - FB 450 MC

• Afdrukken
• Toevoegen aan favorieten

• MerkEMCO
• Type/ModelFB 450 MC
• Voorraad nummer9402
• Bouwjaar2019

Technische gegevens

• Tafellengte800 mm
• Tafelbreedte400 mm
• Langs X450 mm
• Dwars Y400 mm
• Vertikaal Z350 mm
• CNC MerkSiemens
• CNC Modelx

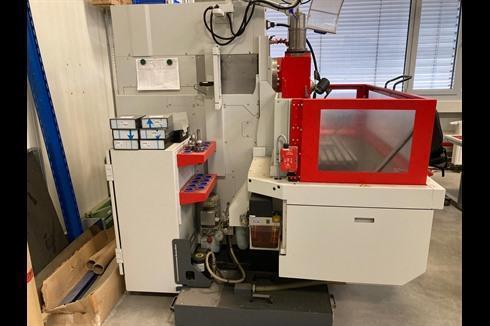

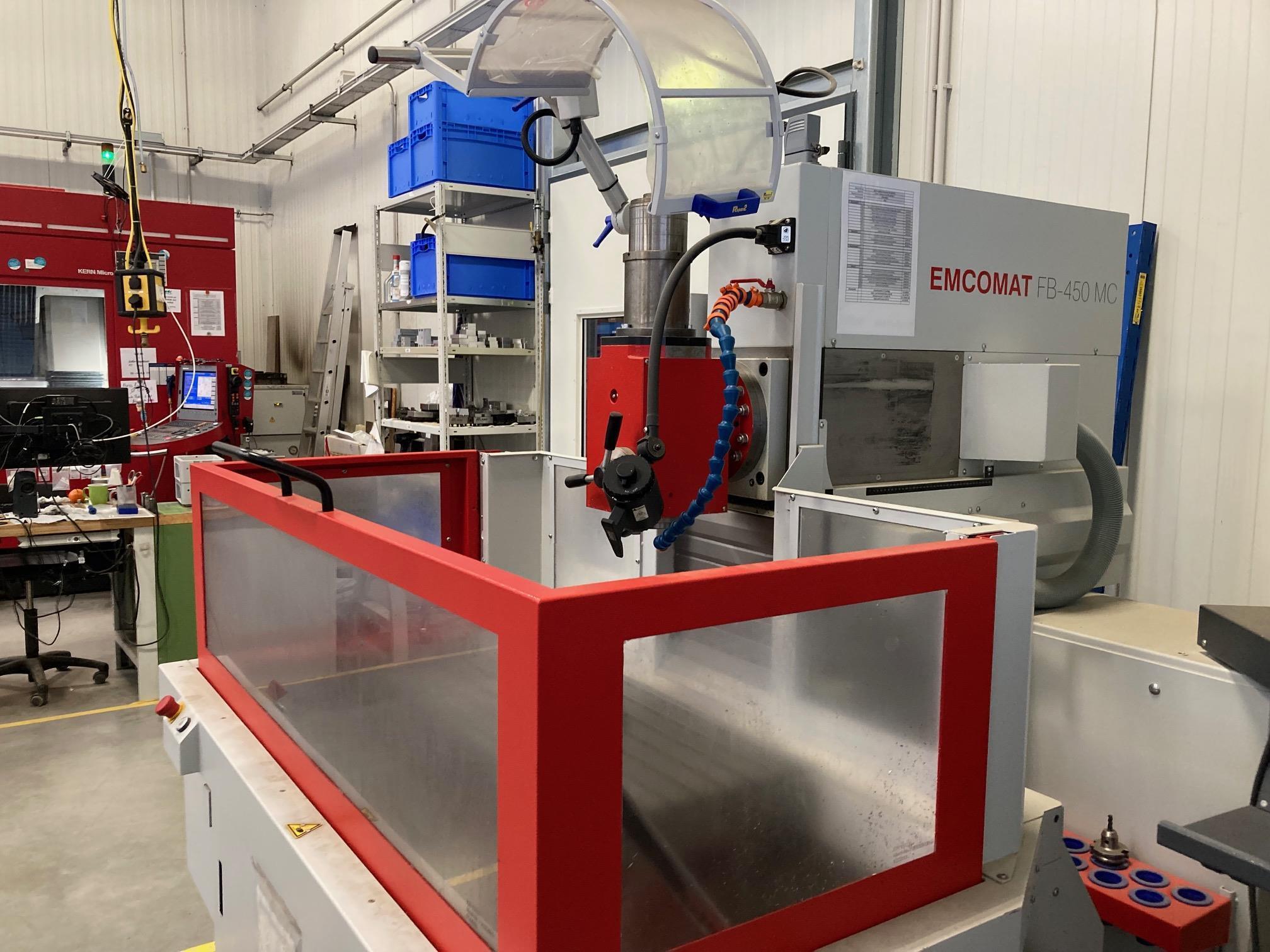

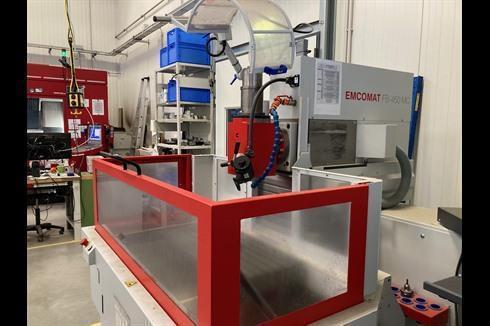

CNC milling machineEMCO - FB 450 MC
MACH-ID 9402
Make: EMCO
Type: FB 450 MC
Control: Siemens 828D ShopTurn
Year: 2019

Universal;milling machine with toolmaker precision
Small-batch production to complex workpieces

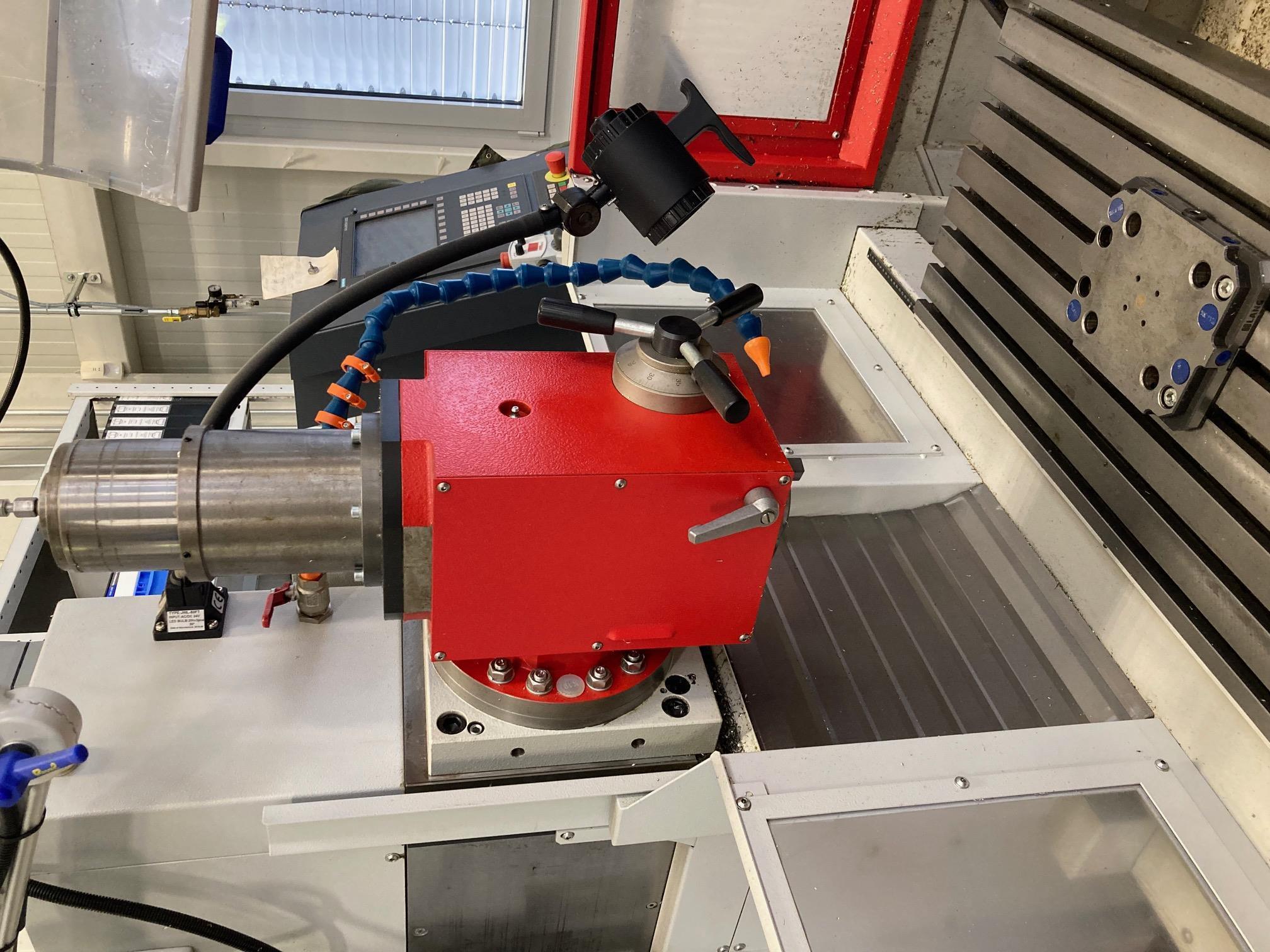

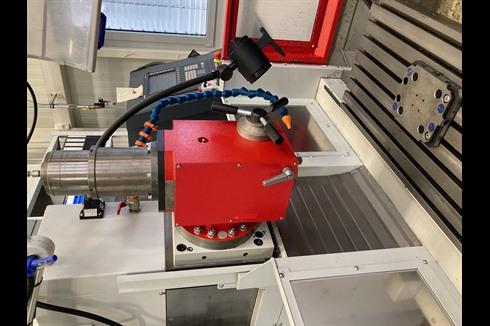

Vertical milling head with hydraulic tool clamping Y and Z Milling
Handwheel in all three axes
Linear guideways in all three axes
Workspace guard retractable with large chip shield
Main motor with spindle brake

X - Travel:     450mm
Y - Travel:     400mm
Z - Travel:     350mm

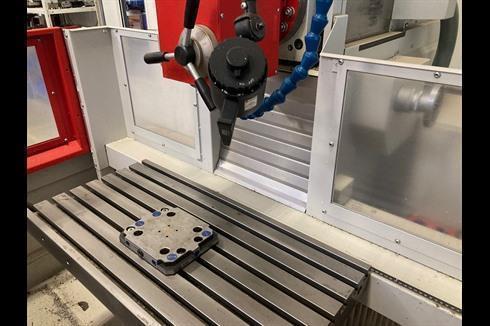

Table Length:   800mm
Table Width:    400mm
Table load:     300
Feed rate X-Axis:5000mm/min.
Feed rate Y-Axis:5000mm/min.
Feed rate Z-Axis:5000mm/min.
Spindle Taper:  40ISO/Bt/Mk
Power on spindle:10kW
Speeds / ranges:5000Rpm
Length:         1990mm
Width:          2300mm
Height:         2220mm
Weight:         2200kg

Handelaar: MACH4METAL BV

Prijsaanvraag
