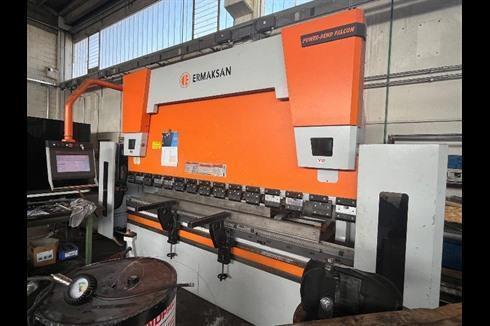

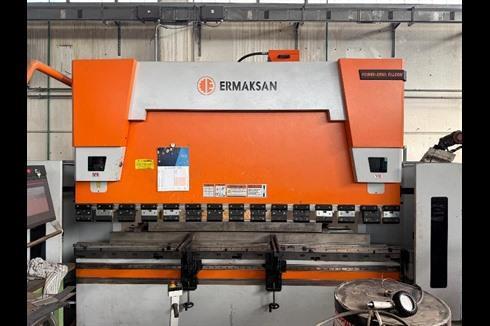

POWER BEND FALCON 3100x135 tons.
4-AXIS + BENDING TABLE
TECHNICAL CHARACTERISTICS:
Bending length 3100 mm
Programmable working force 135 tons
Controlled axes 5: Y1-Y2-X-R-C (bending table)
Distance between uprights 2600 mm
Approach speed 200 mm/s
Working speed 10 mm/s
Return speed 120 mm/s
Register travel (X-axis) 800 mm
Register speed (X-axis) 500 mm/s
R-axis travel 250 mm
R-axis speed 350 mm/s
Oil capacity 200 liters
Main motor power 11 kW
Travel (Y1-Y2 axes) 275 mm
Opening 550 mm
Recess depth 410 mm
Table height 900 mm
Table width 90 mm
Machine length with CNC arm 4250 mm
Machine height 2800 mm
Machine width without squares 2050 mm
Approximate weight without oil 8186 kg
GENERAL FEATURES:
-5 axes: 4 (Y1, Y2, X, R) + automatic table crowning, also controlled by the CNC
-HOERBIEGER hydraulic system
-SIEMENS electrical system
-Cylinders synchronized (Y1 and Y2) via optical scales
-Initial oil fill included
-Double linear guides for greater precision
-The X-axis moves along guides and ball screws
-LED lights
-Heavy 2-axis backgauge (X, R) with 2 manual tips
-Flat tips
-No lubrication system required as the blade holder slides on 4 bearings,
thus ensuring smooth movement Precise

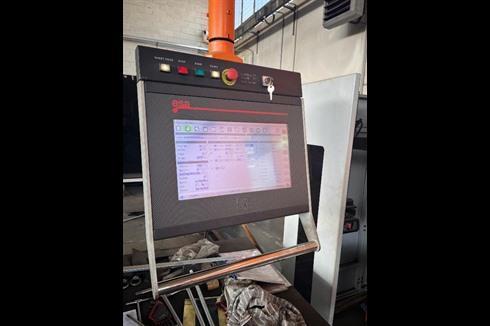

-ESA S640 2D touchscreen videographic CNC with 15" display
-WILA motorized mechanical crowning table, automatically controlled by the CNC
-Rear safety photocells
-DSP AP safety laser barriers with MCS (New Electronics)
-n.2 front support arms that slide along the entire length of the machine and are adjustable in height

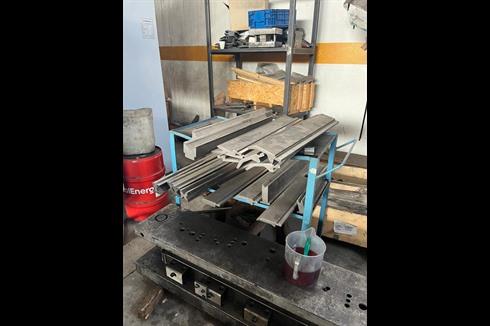

TOOLS:
Quick-release intermediate tools with lever (H 120 mm)
Upper tools
Lower tools
It can be equipped with:
- Additional tools
USED MACHINE
YEAR 2022
