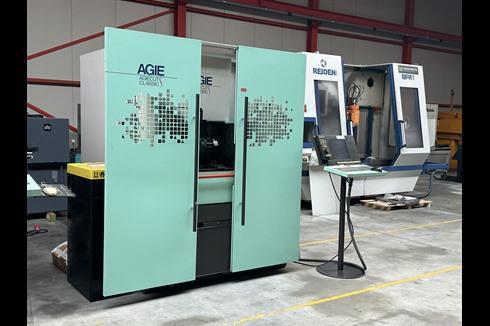

Agie - Classic 2S

  • MerkAgie
  • Type/ModelClassic 2S
  • Voorraad nummer7628
  • Bouwjaar2001
  • WebsiteClassic 2S

Technische gegevens

  • Langs X350 mm
  • Dwars Y250 mm
  • Vertikaal Z256 mm
  • Ampere14 A
  • CNC Merk_Unknown / Other
  • CNC Modelx

EDM machineAgie - Classic 2S
MACH-ID 7628
Make: Agie
Type: Classic 2S
Year: 2001

The AGIE AGIECUT CLASSIC 2S erosion machine, manufactured in 2003 in Austria, is used for machining details by electrical erosion in order to obtain complex and difficult-to-manufacture shapes. The extremely reliable and precise machine has the function of automatic wire threading with a diameter of up to 0.33 mm, which allows the processing of details with maximum dimensions (length x width x height) 750 x 550 x 250 mm and a weight of 450 kg.

X-Axis:                 350mm
Y-Axis:                 250mm
Z-Axis:                 256mm
Table size L x W / or ø:750 x 550mm
Table load:             450
Length:                 2000mm
Width:                  1700mm
Height:                 2200mm
Weight:                 2500kg

- feeds in the X/Y/Z axes: 350/250/256 mm- U/V auxiliary table feeds: 70/70 mm- maximum dimensions of the detail (length x width x height): 750 x 550 x 250 mm- maximum workpiece weight (immersion/rinsing): 200/450 kg- wire tension: 0-25 N- wire diameter: 0.2 - 0.33 mm- maximum cone thickness: 100 mm- maximum cone angle: ± 30°- V guide: 0° - 2°- automatic wire threading- power: 9kVA- rated current: 14 A- power supply: 3x 400V; 50 Hz- dimensions (length x width x height): 2000 x 1700 x 2200 mm- total weight of the AGIECUT CLASSIC 2S machine: 2500 kg
