Technische gegevens

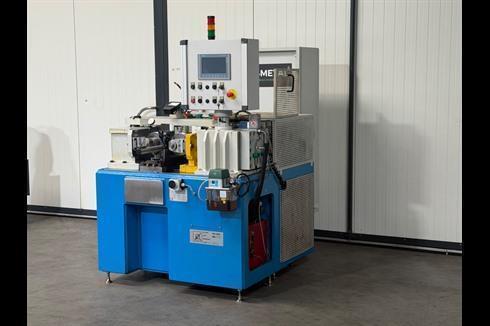

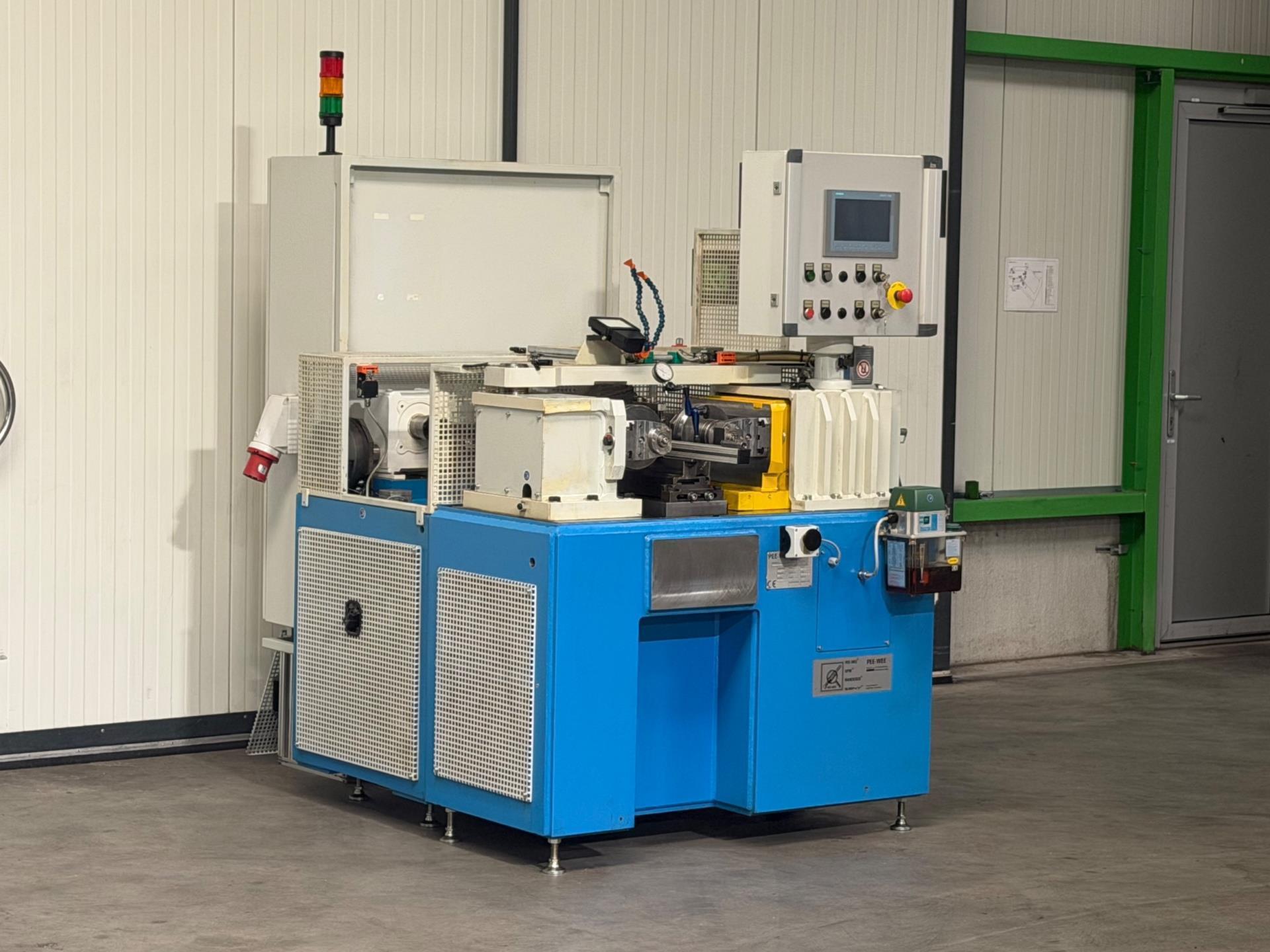

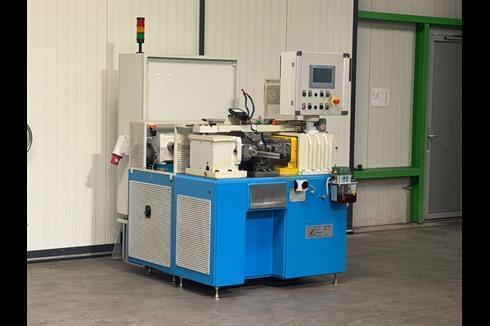

Treading machinePEE-WEE - P10CNC

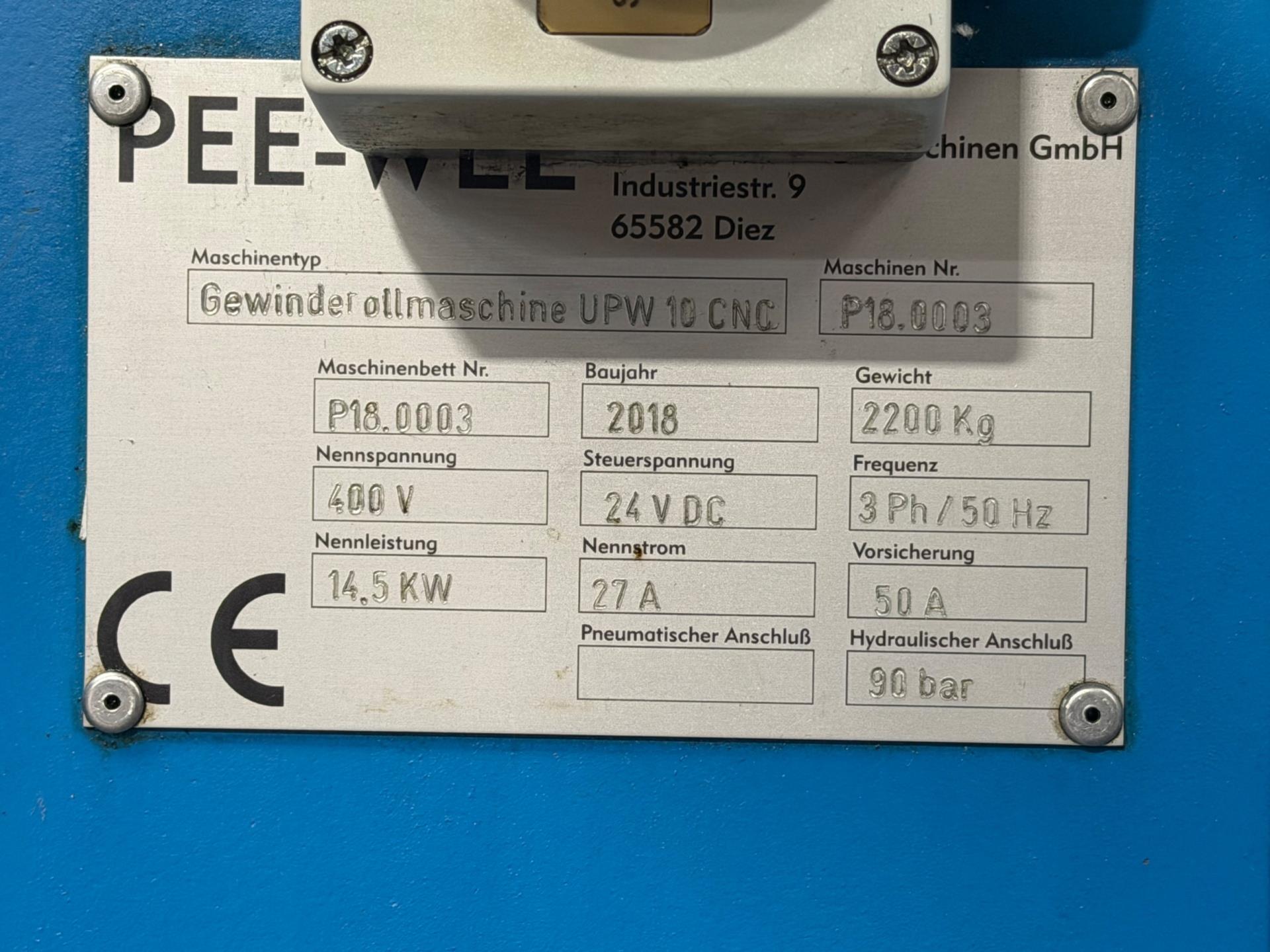

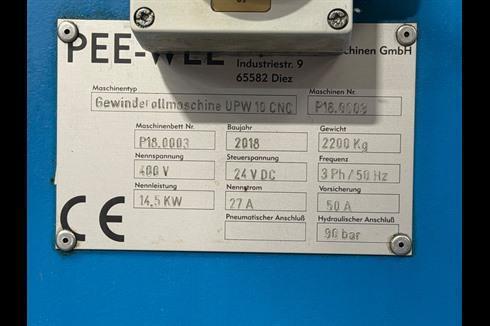

MACH-ID 9816
Make: PEE-WEE
Type: P10CNC
YOP: 2018

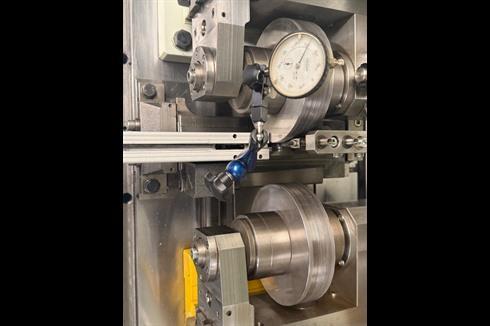

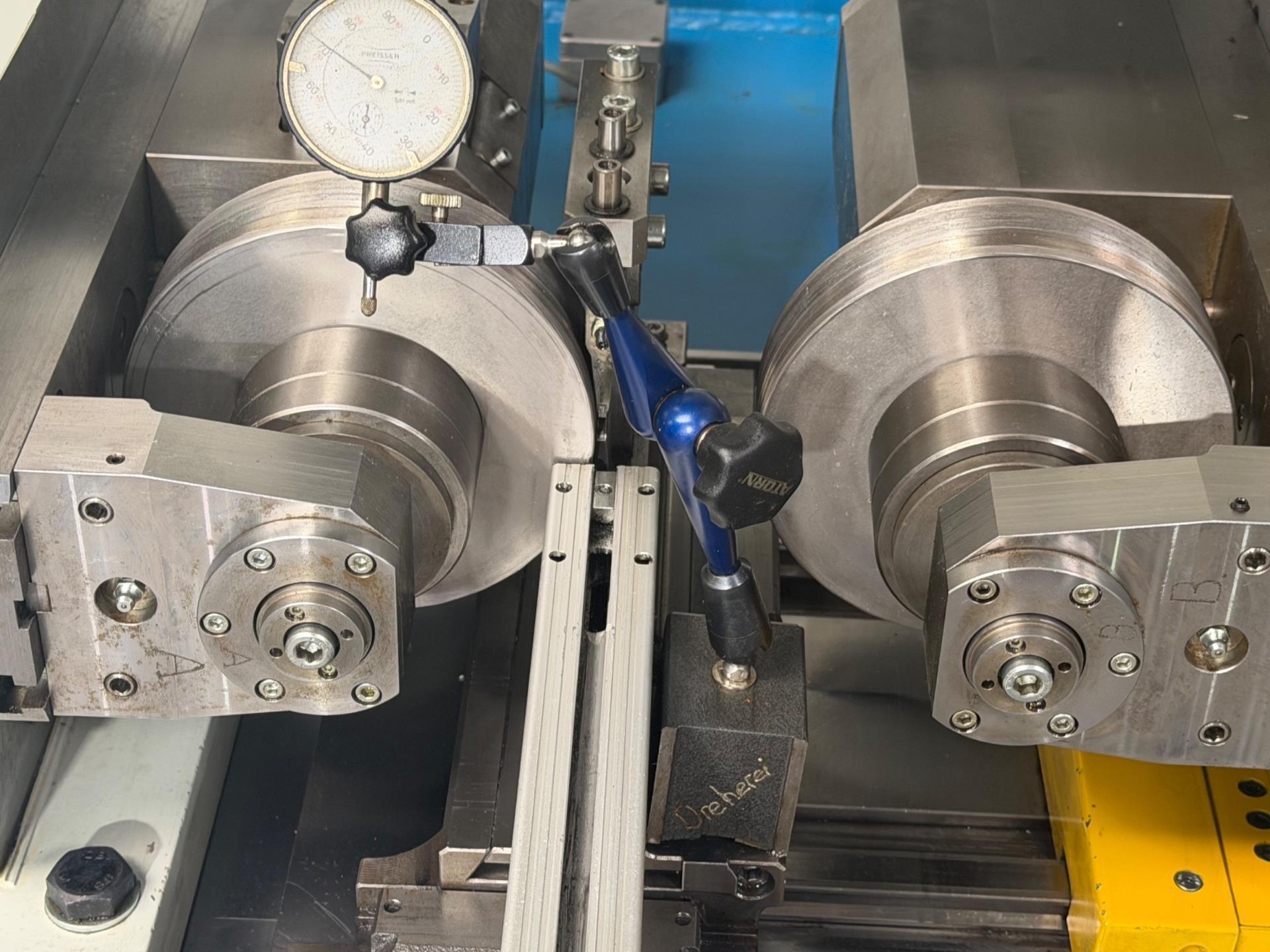

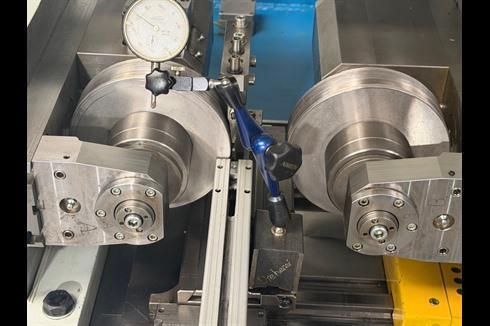

Roll set M14 x 1 PPS Ø 180 x 54 hole x 40 width
Roll set M14 x 1,50 Left PPS Ø 180 x 54 hole x 40 width
Roll set M14 x 1,50 PPS Ø 180 x 54 hole x 40 width
Roll set 1/4-28 UNF PPS Ø 180 x 54 hole x 40 width
Roll set 1/4-28 UNJF PPS Ø 180 x 54 hole x 40 width
Roll set 5/6-24 UNF PPS Ø 180 x 54 hole x 40 width
Roll set 5/6-24 UNJF PPS Ø 180 x 54 hole x 40 width
1 set universal linear guider 120 mm
1 set steady rest for to heavy workpiece
1 set HM support length 40 mm for 1/4, 5/16 and M14 Rolls

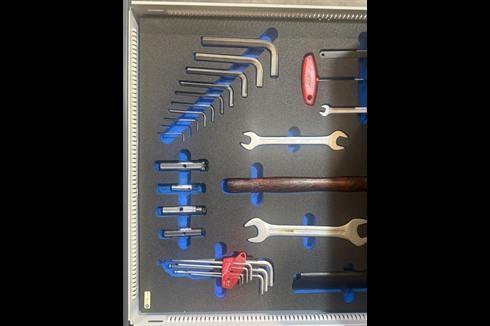

2 x cabinet with tool drawlers and work bench
1 set universal linear guider 120 mm
1 set steady rest for to heavy workpiece
1 set HM support length 40 mm for 1/4, 5/16 and M14 Rolls
2 x cabinet with tool drawlers and work bench
Miniumum pressure: 1T
Maximum pressure: 10T
Max. workpiece: 40Ø
Min. workpiece: 3Ø
Min. Threading lenght:20mm
Max. Threading length:120mm

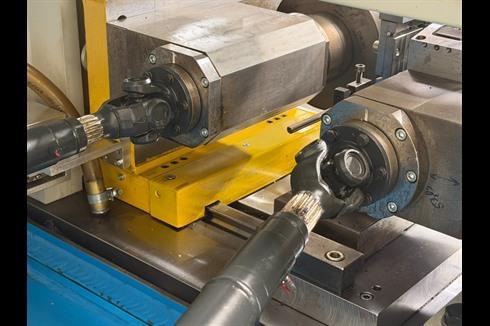

Shaft Ø: 54mm
Length: 1800mm
Width: 1300mm
Height: 1800mm
Weight: 2200kg
EE-WEE P10 CNC is mainly a cold-forming / thread-and-profile rolling machine. Instead of removing material like a lathe or grinder, two hardened dies press and roll the required shape into the workpiece.
Typical products you can make include:
External threads – metric, UN/UNC/UNF, fine threads, special threads.
Bolts, studs and threaded shafts – especially high-strength parts where rolled threads are preferred.
Splines and serrations – for small transmission shafts, steering components, couplings and similar parts.
Knurling – straight or crossed knurls for knobs, handles and press-fit areas.
Grooves and rings – circumferential grooves, retaining-ring features and special profiles.
Worm/profile forms – certain helical or special profiles, depending on tooling and machine configuration.
Automotive components – pins, shafts, fasteners and transmission-related components.
Aerospace/high-strength fasteners – rolled threads are attractive because the material grain flow isn't cut through.
The big advantage is strength and production speed. A rolled thread is generally stronger than a cut thread because the material is displaced rather than removed. You also get an excellent surface finish and can produce parts very quickly once the correct rolling dies are installed.
