Technische gegevens

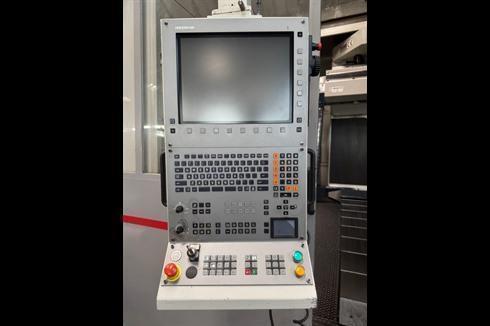

CNC control Heidenhain 530
Drilling depth (V) 2.000 mm
Longitudinal travel (X) 3.250 mm
Vertical travel (Y) 1.500 mm
Transversal (Z) tapping axis 500 mm
Workpiece approach (W) 500 mm
Rapid feed speed axes X, Y, V 8.000 mm/min

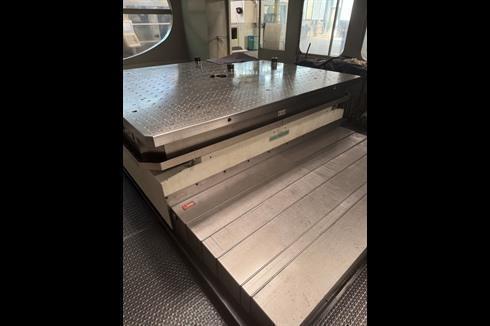

“IMSAUTOROTATION” rotary-sliding table 2.000 x 2.500 mm
Maximum table load (rotating workpiece-staffed on axis) 30.000 kg
Maximum load (stationary workpiece) 50.000 kg

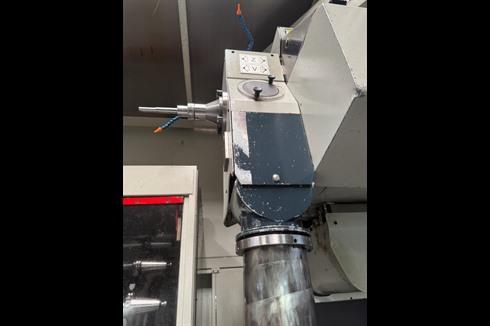

Drilling head inclination (C) +/- 20°
Spindle taper ISO 50
Spindle motor power for drilling and milling 17 kW
Spindle speed 4.200 rpm
Drilling section (from solid) min. drill diameter = mm (5) 6
Drilling section (from solid) max. drill diameter = mm (50) 40

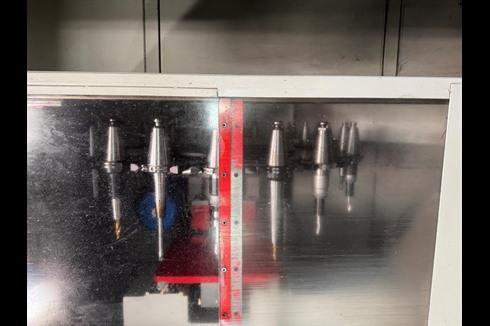

Tool magazine 20 stations
Floor space (approx. area) mm 6.000 x 8.000
Height mm 4.300
Total weight (approx.) Kg 45.000
Complete with:
Optical scales (X, Y)
Drilled plate mm 2.200 x 2.500 thickness 70
Gun drills with bushings
High pressure 80 bar
Full oil-tight enclosure
Chip conveyor
USED MACHINE
YEAR 2011
