Gildemeister - MF TWIN 65y

Technische gegevens

  • Draaidiameter mm
  • Draailengte mm
  • Posities revolverkop
  • Posities ATC
  • Aantal gestuurde assen
  • CNC Merk
  • CNC Model

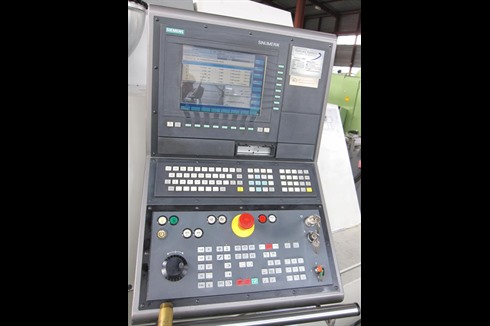

Control: SIEMENS SINUMERIK 840 D
Operating hours: 76500
Technical data
Number of spindles: 2
Number of revolvers: 2
Swing over bed: 240 mm
Spindle hole: 65 / 42 mm
Turning diameter: 200 mm
Bar diameter: 65 / 42 mm
Clamping chuck diameter: 200 mm
Turret carriage:
Longitudinal travel (Z-axis): 555 mm
Transversal strocke (X axis): 190 mm
Transversal travel (y-axis): +/-40 mm
Carriage:: 2
Longitudinal travel (Z-axis): 555 mm
Transversal strocke (X axis): 190 mm
Turret carriage:
Number of positions turret 1: 12
Number of positions turret 2: 12
Driven tools turret 1: 12
Driven tools turret 2: 12
Spindle speeds: 40-4000 rpm
Main spindle:
C axis (spindle,resolution): 0.025 °
Spindle speeds:
stepless
from: 25 rpm
up to: 5000 rpm
Torque max.: 200 Nm
Back spindle:
max. speed: 6300 rpm
Spindle motor: 28/21 kW
Voltage 50 Hz 3x: 380 Volt
Machine's weight about: 6500 kg
Overall dimensions machine:
Length: 4770 mm
Width: 2220 mm
Height: 1950 mm
Various accessories:
3-jaw chuck diameter: 2x mm
Collet chuck (number): HAINBUCH 2x
Set of jaws hard
Bar feeder: LNS Hydrobar
Type: HYS 6.42 HS / 4.4
C axis: 250 rpm
Y axis
Workpiece conveyor
Chip conveyor
Driven tools (number): 2x axiale/radiale
Driven tool holder radial (nbr.): 25
Driven tool holder axial (nbr.): 8
Tool holder fix (nbr.): 5
Tool holder for boring bars: 11
