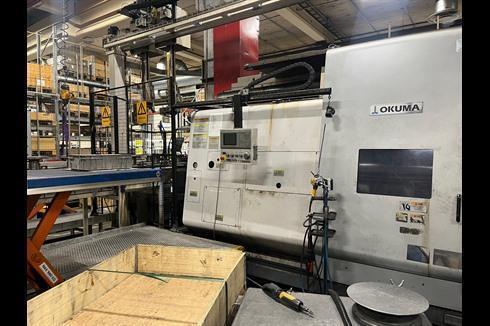

Okuma - Macturn 550

• Afdrukken
• Toevoegen aan favorieten

• MerkOkuma
• Type/ModelMacturn 550
• Voorraad nummer1147
• Bouwjaar2003

Technische gegevens

• Draaidiameter720 mm
• Draailengte2000 mm

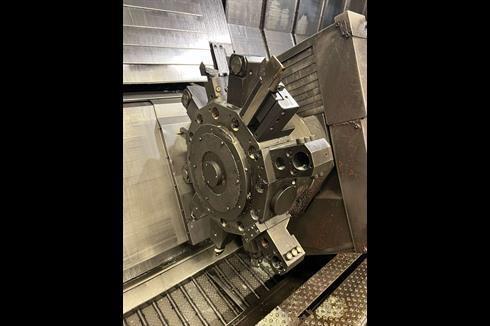

• Posities revolverkop12
• Posities ATC50
• Aantal gestuurde assen5
• CNC MerkOkuma
• CNC ModelOSP-E-100L

Okuma Macturn 550 x 2000
Y.o.M. 2003

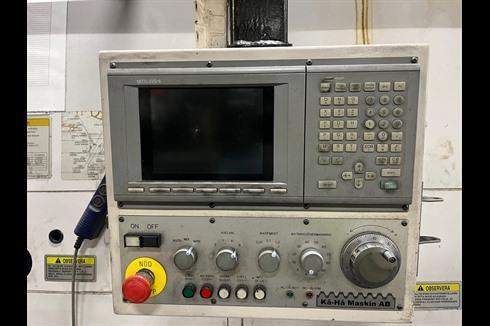

CNC OSP-E100L


Machine specifications

Between centers                                       2.000 mm
Swing over carrige                                  Dia 720 mm
Max machining dia                                  Dia 720 mm
Max work length                                     2000 mm
Travels X-axis                                         660 mm
Travels Z-axis                                          2100 mm
Travels Y-axis                                         250 mm (+110_-120)
Travels C-axis                                          360°(0,001° increment)
Travels B-axis                                          1° (360°)
Spindle speed                                           12-2800 rpm/min
Speed range                                             2 auto range
Spindle nose                                             JIS A2-11
Tapered bore                                            Dia 110 mm
Bearing dia                                               Dia 150 mm
M-spindle speed range                             40-5000 rpm/min
Rapid traverse                                          x 30m y 26 m z 30 m/min c200 rpm/min

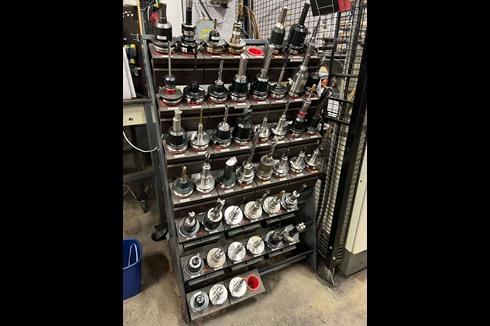

Tool shank                                               MAS BT50
Magazine capacity                                   50-tools
Max tool dia                                             Dia 130/230 mm
Max tool length                                       350 mm
Max tool mass                                         20kg
Tool selection                                          Random
Tailstock quill Dia                                   120 mm
Tailstock quill tapered bore                     MT No:5
Tailstock quill travel                                250 mm
Spindle motor                                          37/30 kw
Spindle torque                                          2264 Nm
M-tool motor                                           22/15 kw

Chip conveyor

Handelaar: SCANTOOL AB
