Technische gegevens
Control: SIEMENS SINUMERIK 840C
Technical data
Number of spindles: 2
Number of revolvers: 2
Spindle hole: 65 mm
Turning diameter: 200 mm
Turning length: 400 mm
Turret slide:
Number of positions turret 1: 14
Number of positions turret 2: 14
Driven tools turret 1: 14
Driven tools turret 2: 14
Spindle speeds: 6000 rpm
Power of driven tools: 5.5 kW
Inner cone DIN: 69 880
Indexing time: 0.4 sec
Upper turret head:
X axis: 155 mm
Y axis: 120 mm
Z axis: 400 mm
Lower turret head:
X axis: 105 mm
Z axis: 400 mm
Main spindle:
Internal spindle diameter: 60 mm
Spindle speeds:
stepless
up to: 6000 rpm
Back spindle:: HAINBUCH
max. speed: 6000 rpm
Internal spindle diameter: 60 mm
Spindle diameter: 160 mm
Back spindle stroke: 445 mm
Rapid traverse X: 22.5 m/min
Rapid traverse Z: 45 m/min
Rapid traverse Y: 7.5 m/min
Spindle motor: 39 kW
Voltage 50 Hz 3x: 400 Volt
Machine's weight about: 4800 kg
Overall dimensions machine:
Length: 2500 mm
Width: 2400 mm
Height: 2700 mm
Various accessories:
3-jaw chuck
Lamp

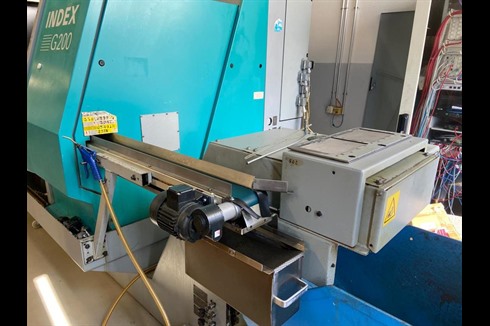

Bar feeder: LNS
Type: MINI-SPRINT
Interface serial port RS 232
Workpiece conveyor
Chip conveyor
Foot pedal
Set of steel holders
Set of toolholders
Rotating viewing window
