Colchester - COMBI 4000

  • MerkColchester
  • Type/ModelCOMBI 4000
  • Voorraad nummer21165
  • Bouwjaar1998
  • Verkoopprijs€ 000
  • WebsiteCOMBI 4000

Technische gegevens

  • Draaidiameter mm
  • Draailengte mm
  • Posities revolverkop
  • Posities ATC
  • Aantal gestuurde assen
  • CNC Merk
  • CNC Model


Control: FANUC 210i-T
Technical data
Distance between centres: 2000 mm
Turning diameter over cross-slide: 370 mm
Swing over bed: 554 mm
Spindle nose: D1-11
Spindle hole: 104 mm
Maximum turning length: 2000 mm
Cross slide:
Longitudinal travel (Z-axis): 1920 mm
Transversal strocke (X axis): 290 mm
Main spindle:
Taper in spindle:
Camlock: D1-6 CAMLOCK
Spindle speeds:
number (steps): 3
from: 16 rpm
up to: 1800 rpm
Taper in tailstock:
Morse taper: 6 MT
Spindle stroke: 178 mm
Spindle diameter: 95 mm
Rapid traverse:: 10 m/min
Spindle motor: 11 / 7.5 kW
Voltage 50 Hz 3x: 380 Volt
Machine's weight about: 4000 kg
Overall dimensions machine:
Length: 3300 mm
Width: 1800 mm
Height: 1700 mm
Various accessories:
3-jaw chuck diameter: 400 mm
4-jaw chuck diameter: 700 mm
Face plate diameter: 680 mm
Set of jaws
Set of jaws hard
Lamp
Tailstock

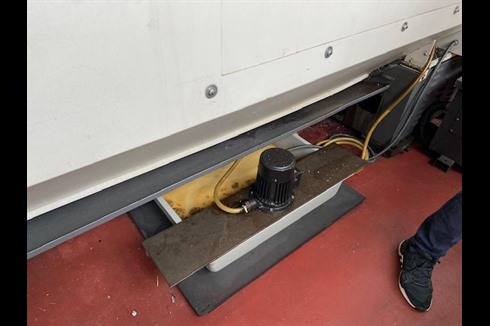

Coolant system: 90 l
Rotary centre
Steady
Drill chuck
Toolholders: MULTIFIX
Set of toolholders
Set of reducing bushes
Lathe chuck protection
