Технические данные
Schleifdurchmesser: mm
Schleiflänge: - mm
Spitzenhöhe: mm
Schleifbreite: - mm
Werkstückhöhe: mm
Steuerung: Fanuc
Gesamtleistungsbedarf: kW
Maschinengewicht ca: 1550 t
Raumbedarf ca: m

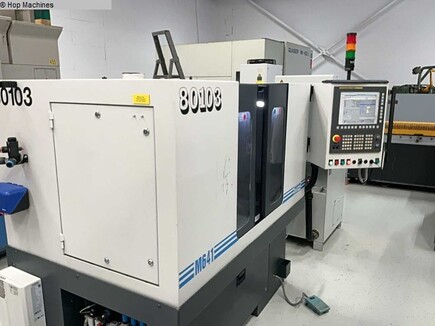

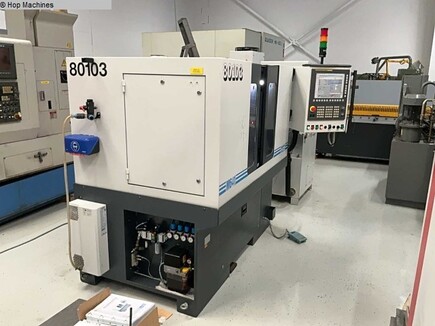

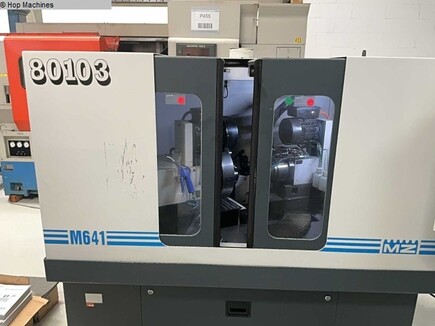

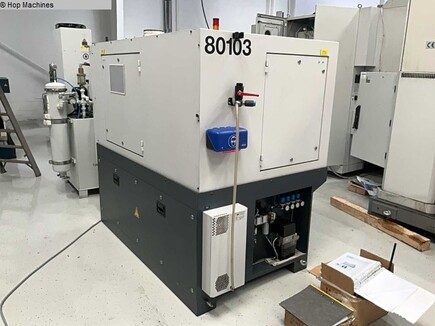

Technical Specifications M641
Feature Value
Workpieces Spheres (heads) up to Ø 64 mm
Cups/inserts up to Ø 64 mm
Spine products (vertebral disk implants)
Tools Turret head for max. 5 honing tools
Polishing with felt
Diamond spray system
Rotational speeds Tool: up to approx. 5,700 rpm (adjustable)
Workpiece: up to approx. 2,000 rpm (adjustable)
Swivel/tilt angle Adjustable via parameter: 0-72°
Contact pressure of tools Adjustable individually for each tool
Workpiece clamping Pneumatic three-jaw chuck
Measuring unit Marposs type P7/MHIS for internal and external measurement
Other features Automatic door

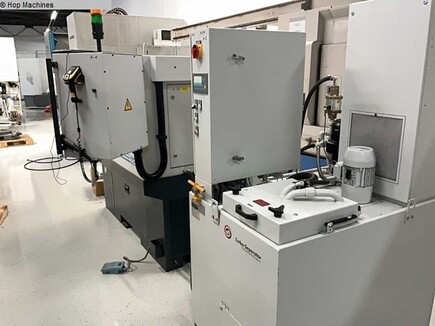

Coolant cleaning with turbo centrifuge
Dimensions (W × D × H) Without coolant system: approx. 1,800 × 1,700 × 1,730
mm
With coolant system: approx. 2,550 × 1,700 × 1,730 mm
Weight Approx. 1,750 kg
Die Daten für dieses Inserat wurden erstellt mit ModulMWS - die Maschinenverwaltung von LogoTech oHG.
