Технические данные
Workbench Column Drilling Machine CINCINNATI PE 32
Year of construction: 1997
Spindle: CM3
Spindle exit: 150 mm
Spindle speed: from 100 to 3800 RPM
Table travel X: 290 mm / Travel Y: 150 mm

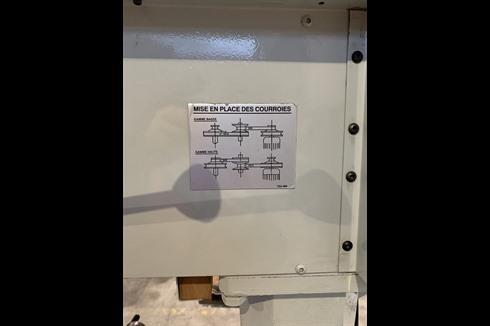

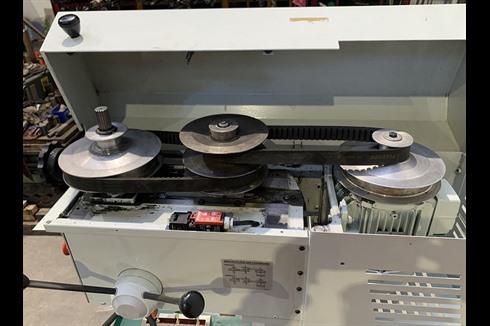

Speed variator by belt variator
Maxi height base/spindle nose: 500 mm
Mini height base/spindle nose: 260 mm
Throat depth: 300 mm
Spindle sleeve diameter: Ø 80 mm

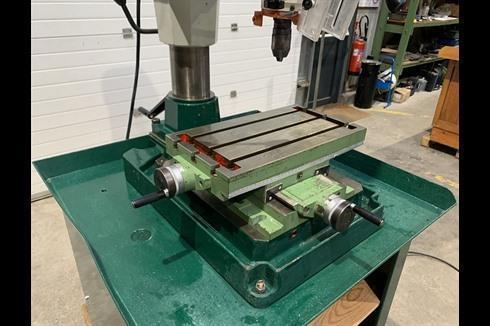

Equipped with one cross table dimensions: L 430 x W 240 mm
Voltage: 380 V
Width: 900 mm
Depth: 1100 mm
Total height on base: 2000 mm
Weight: approx 400 kg
Дилер: RETEC MACHINES SA
Запросить цену
