Hermle - C-42U

• Печать
• Добавить в фавориты

• ПроизводительHermle
• МодельC-42U
• Инвентарный номер1148
• Год выпуска2013

Технические данные

• Продольный ход - X800 mm
• Поперечный ход - Y800 mm
• Вертикальный ход - Z550 mm
• Емкость инструментального магазина85
• ЧПУ МаркаHeidenhain
• ЧПУ МодельiTNC530

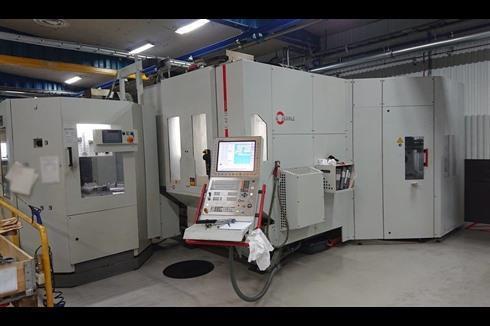

5-Axis CNC Vertical Machining Centre with 6-station Pallet Pool
Hermle C42U
New in 2013/2014
Heidenhain iTNC 530 CNC control

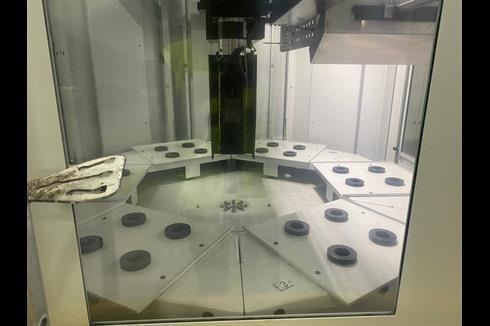

IHS Pallet system for 6 pallets (6 x workpiece fixtures)
Pallet size 400 x 400 mm

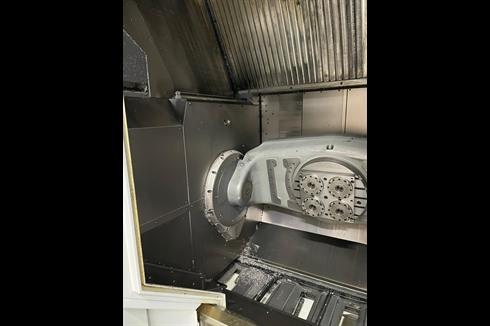

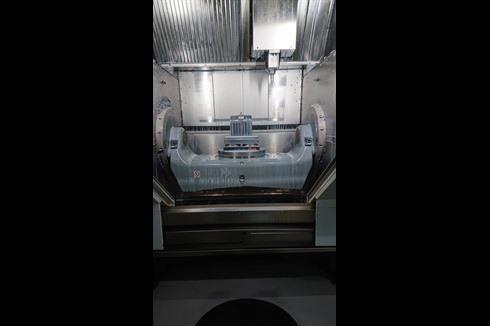

2-Axis NC Rotary Tilting Table
Rotating axis  C-Axis 360° - 0.001°
Tilting axis  A-Axis +/- 130° - 0.001°

Working travels:
X 800 mm
Y 800 mm
Z 550 mm

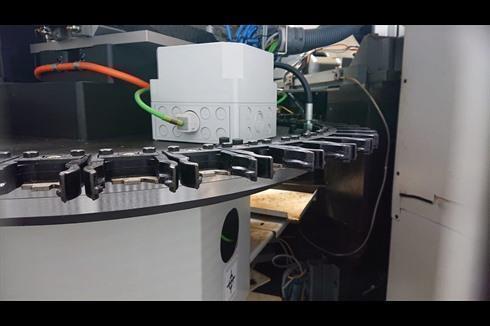

85 station ATC

Spindle speeds to 18000 rpm

New spindle replacement in 2019 and max. 300 hours run after replacement
FULLY CHECKED by a Hermle service engineer in 06.2024  (test report available)
Machine in EXCELLENT condition.

Video live call possible

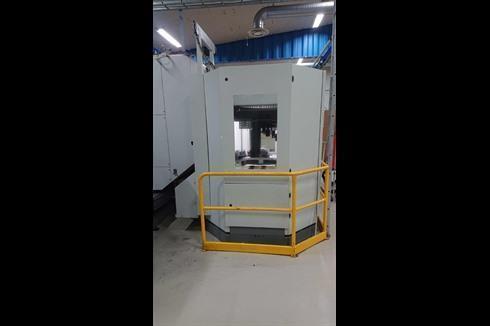

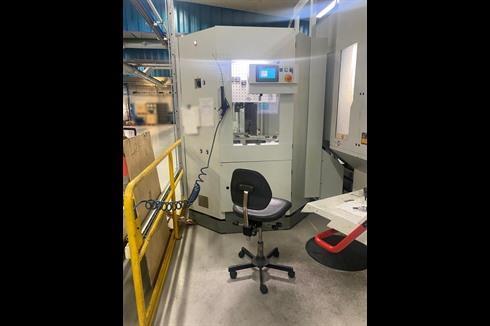

NOTE: The machine is fitted with an automation system to change pallets of 400 mm. These pallets are not included.
The previous owner used a “cone fixture” system, fitting their parts with the cone fixtures for automatic loading and unloading.
The “cone fixtures” are included.
