Dane techniczne

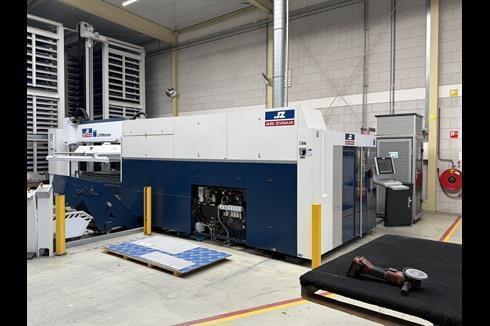

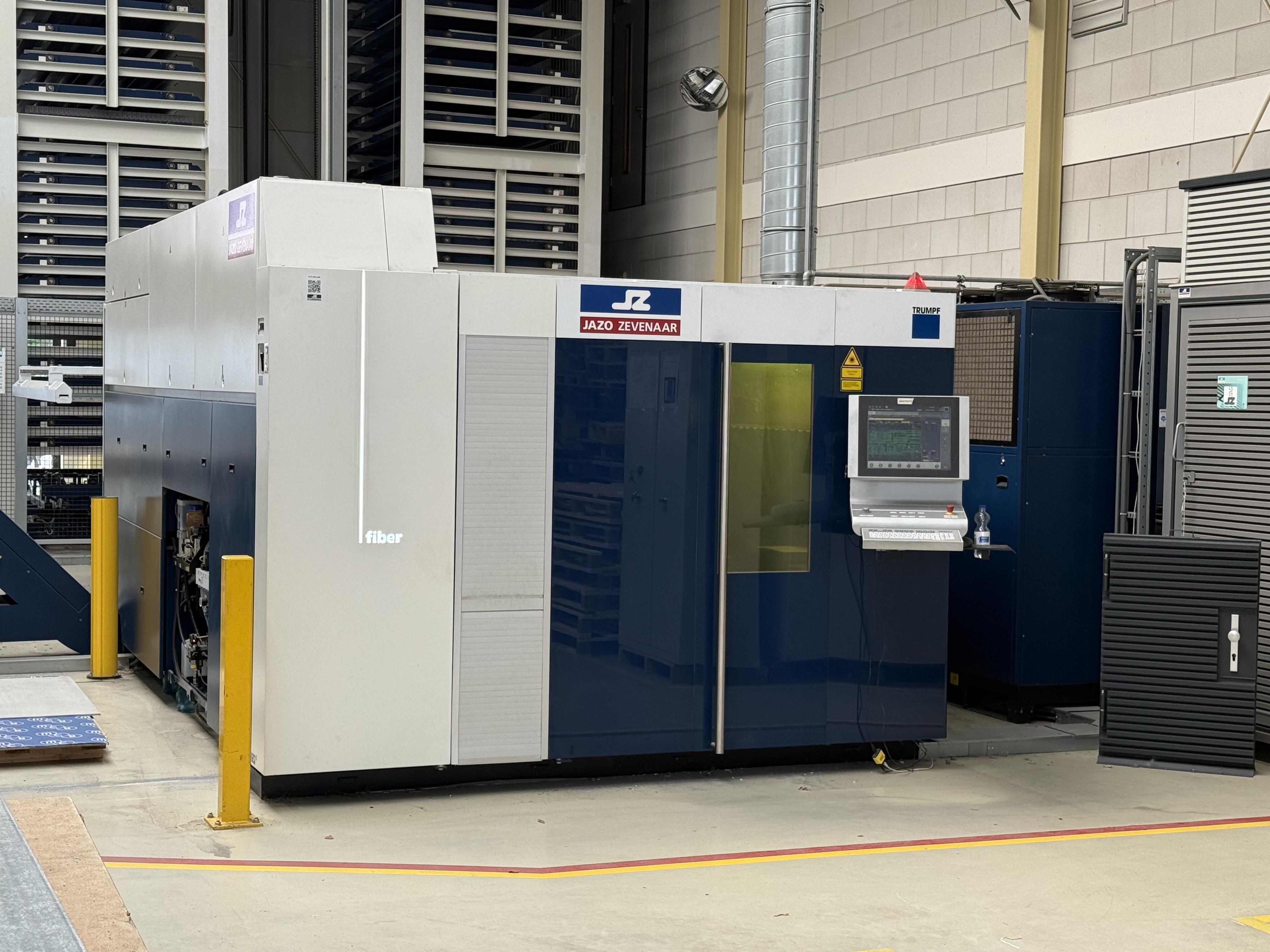

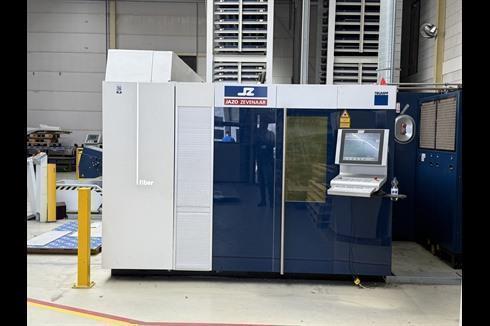

Laser cutterTRUMPF - TruLaser 3030
MACH-ID 9235
Make: TRUMPF
Type: TruLaser 3030
Control: TrueTops
Year: 2017
High speed cutting with precision
Tower and Sheetmaster NOT included
Low operation cost
Compact foot print

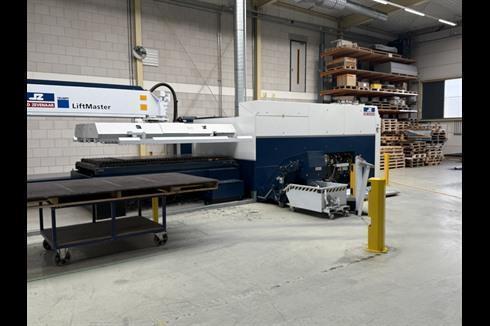

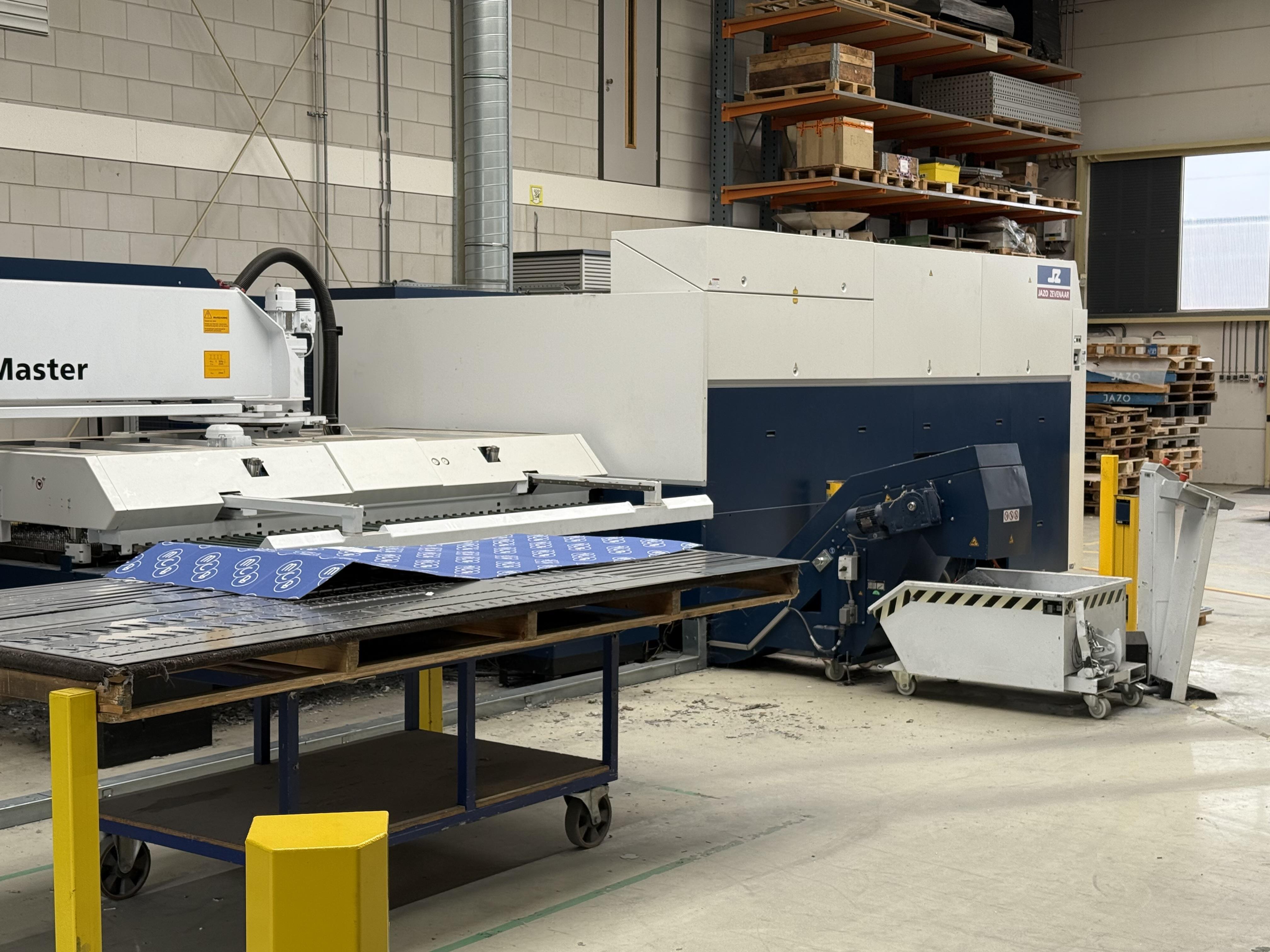

Change table ( liftmaster and tower not included
Possible to cut reflective material (copper, brass)
Mild steel : 20 mm
Stainless: 15 mm
Aluminium: 12 mm
Copper / Brass: 6 mm

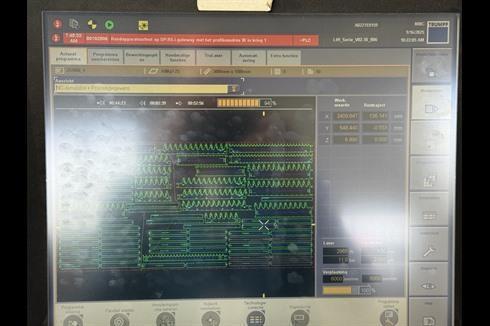

- User-friendly interface with graphical programming- Supports automatic nesting, cutting parameter libraries, and real-time diagnostics- Interfaces seamlessly with TRUMPF's automation modules and networking systems- Real-time control of laser, motion, and auxiliary systems
Working area X Axis: 3000mm
Working area Y Axis: 1500mm
Working area Z axis: 115mm
Table Length: 3000mm
Table Width: 1500mm
Power resonator: 3kW / Amp
Feed rate X-Axis: 170000mm/min.
Feed rate Y-Axis: 170000mm/min.
Feed rate Z-Axis: 170000mm/min.
Sheet master loading arm:No
Sheet tower storage: No
Control: TrueTops
Cutting hours: 25000H

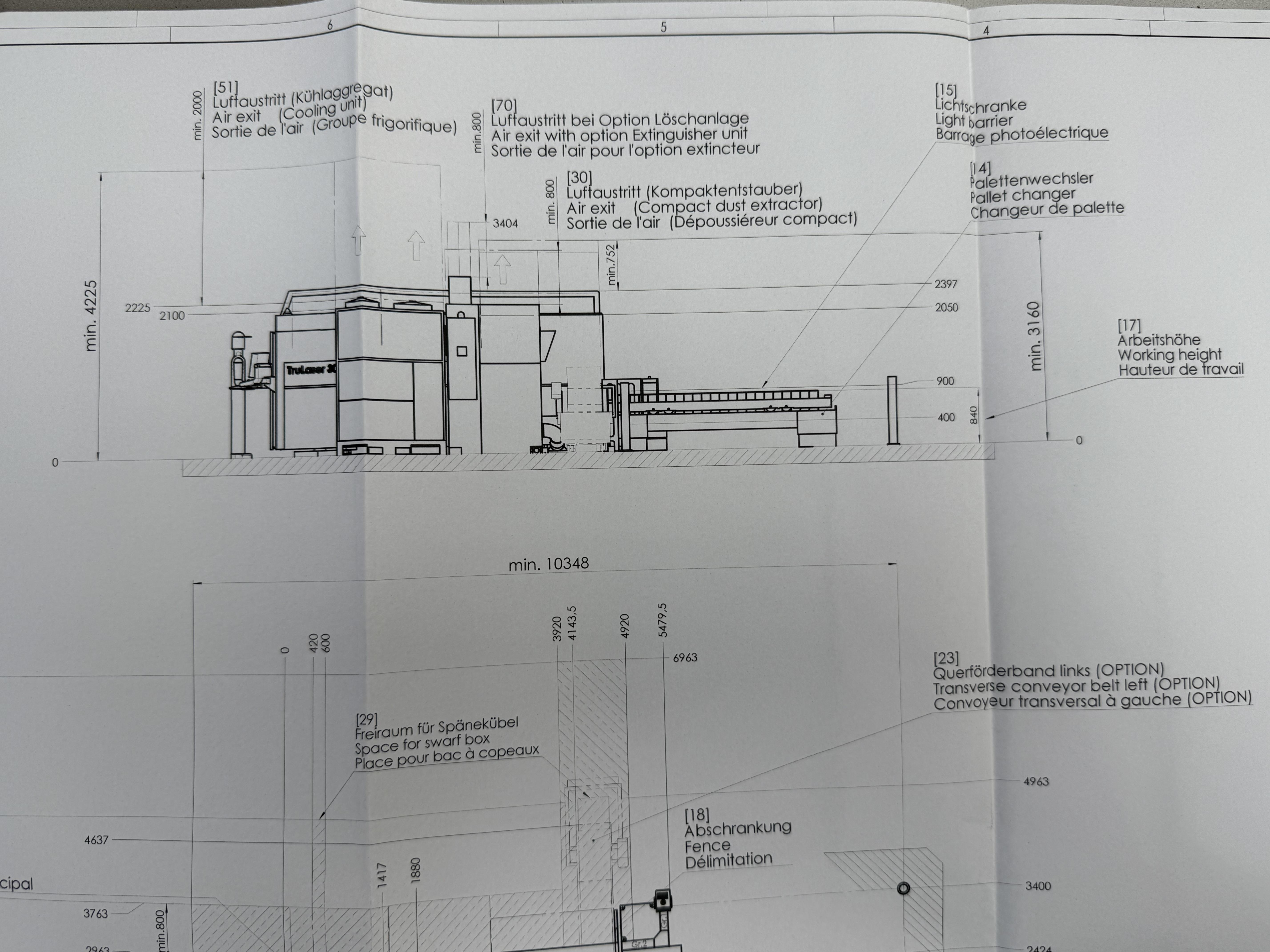

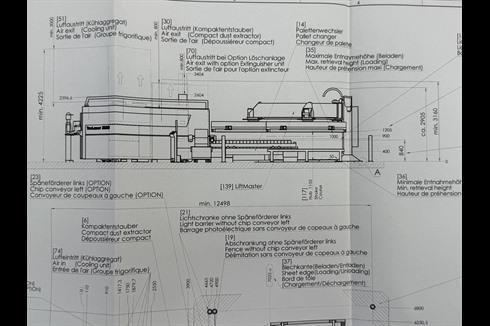

Length: 9000mm
Width: 5000mm
Height: 2200mm
Weight: 7650kg
Handlowiec: MACH4METAL BV
Zapytaj o cenę
