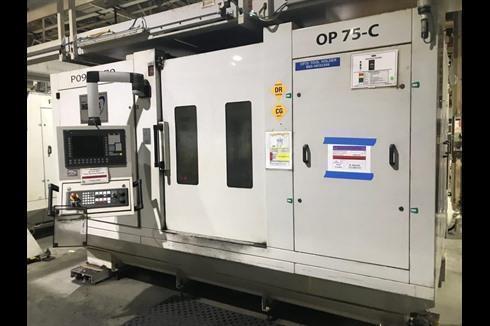

Ingersoll - AOHD-1050

  • ProducentIngersoll
  • Typ / ModelAOHD-1050
  • ID Numer24870
  • Rok produkcji2013
  • Witryna internetowaAOHD-1050

Dane techniczne

  • Srednica wiercenia0 mm
  • Glebokosc wiercenia0 mm
  • Stozek wrzeciona0
  • Ilosc glownic wiercacych0
  • CNC MarkaSiemens
  • CNC Modelu840D

Equipped with:

Siemens 840D Control
(2) Drill Heads
20-Tool Rack
HSK 50A Taper
(2) 7" 3-Jaw Chucks
(2) Tailstocks
(2) Steady Rests
Chip Auger
Chip Conveyor
Mist Collector
Hydraulic System
Q R Lube System
Air Compressor

Specifications:

Maximum Length: 1050 mm (41.3")
Minimum Length: 180.0 mm (7.1")
Maximum Stroke: 250.00 mm
Maximum Main Journal Diameter: 115.0 mm (4.5")
Maximum Pin Journal Diameter: 100.00 mm (3.9")
Maximum Swing Diameter: 250.0 mm (9.84")
X-Axis Travel: 1450 mm (57.1")
Y-Axis Travel: 150 mm (5.9")W/HSK 50
Z-Axis Travel: 305.0 mm (12.0")
A-Axis Travel: 360 Degree
B-Axis Travel: 90 Degree
Feed Rate (Z): 1 m/min Maxim (40"/min max)
Position Accuracy of X,Y,Z Axes: .010 mm (.00039")
Position Accuracy of A & B Axes: .03 Degree
Position Repeatability of X,Y,Z Axes: .005 mm (.0002")
Position Repeatability of A & B Axes: .005 Degree
Spindle Power: 5.5 kW (7.5 hp)
Spindle Speed: 0-6,900 RPM
Tool Adaption: HSK 50E or A
Tool Storage (ATC): 20 Total - 10 Per Spindle W/HSK 50
Lubrication - Slides & Ball Screws: Automatic Central Lubricator
Approximate Floor Space (LxWxH): 4.0 x 2.3 x 2.5 m (13.1 x 7.5 x 8.2 Ft)
Approximate Machine Weight: 8,500 kg (18,740 #)
