Colchester - VS2500 x 1250

• Drukuj
• Dodaj do Ulubionych

• ProducentColchester
• Typ / ModelVS2500 x 1250
• ID Numer8516
• Rok produkcji2000
• Cena£ 7.950
• Witryna internetowaVS2500 x 1250

Dane techniczne

• Wznios klow195 mm
• Rozstaw klow1250 mm
• Przelot wrzeciona54 mm

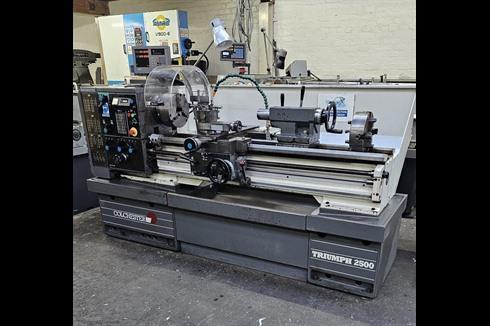

COLCHESTER GAP BED CENTRE LATHE

Model                                                TRIUMPH VS2500 x 1250mm
Serial number                                    LVT50GMR JA/05377
Year                                                   Approx. 2000

CAPACITY
Distance between centres                1250mm
Swing over bed                                 400mm
Swing over cross slide                      246mm
Swing in gap                                     585mm

UNIVERSAL GEARBOX
Longitudinal feeds per rev                0.018 - 1.2mm/rev
Cross feeds                                      0.009 - 0.6mm/rev
English pitches                                 (56) 2 - 56 tpi
Diametrical pitches                           (20) 8-56
Metric pitches                                   (51) 0.2 - 14 mm
Modul pitches                                   (20) 0.2-3.5

HEADSTOCK
Spindle speeds (3 range, inf. var)   14 - 2500 rpm
Main motor                                      7.5 kW (10HP)
Spindle nose                                   6” D.1 Camlock
Bore through spindle                       54mm

TAILSTOCK
Barrel diameter                               73mm
Barrel travel                                    140mm
Taper of centre                                No. 5 Morse

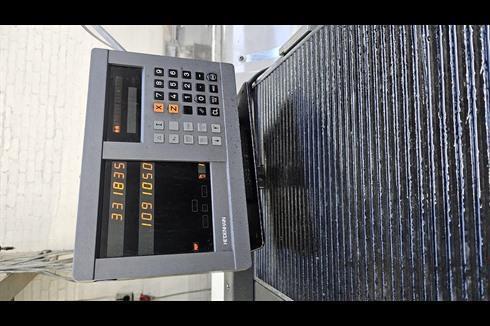

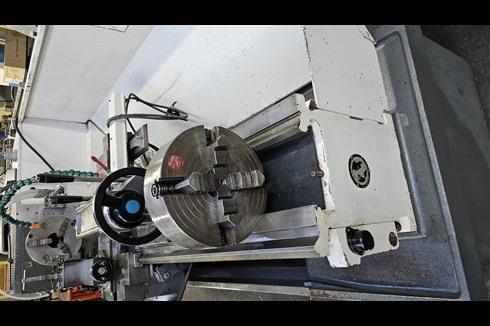

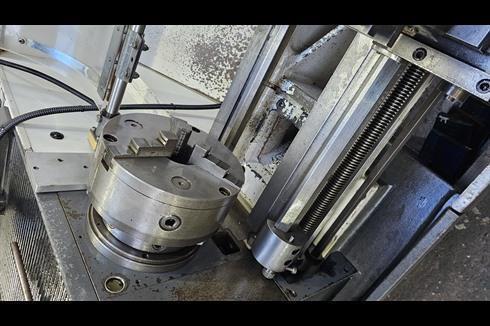

Complete with:- HEIDENHAIN 2 Axis D.R.O., Chuck guard, 3 & 4 jaw chucks, Q.C.T.P. with Toolholders, Taper turning (bracket missing), Thread indicator, Bed stop, Coolant. Serviced and in Excellent condition.

Handlowiec: RON THOMPSON MACHINERY CO

Zapytaj o cenę
