BROADBENT

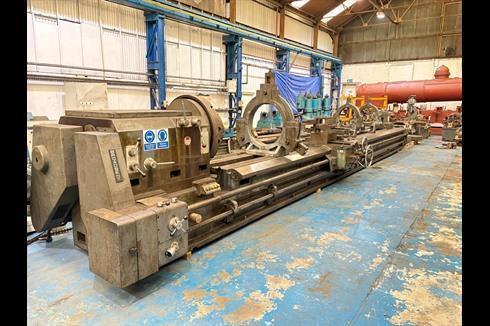

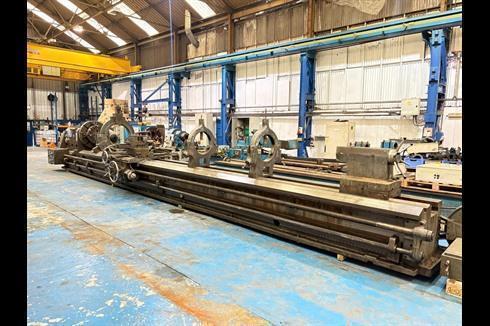

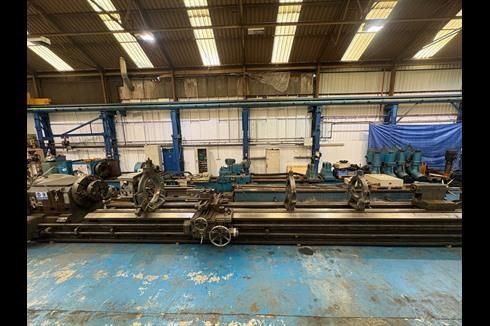

HEAVY DUTY GAP BED CENTRE LATHE
Type SERIES
3748
CAPACITY
Distance between centres 9140
mm 30’
Swing over bed 1041
mm 41”
Swing over saddle 813 mm 32”
Swing in gap 1575
mm 62”

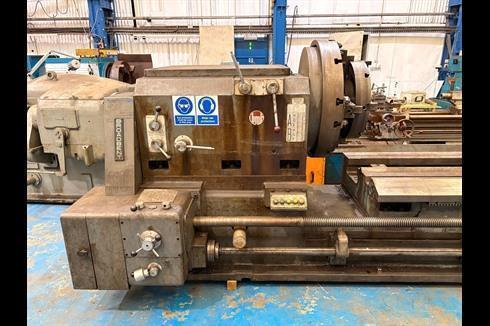

HEADSTOCK
Spindle speeds (18)
3.3 - 360 rpm
Spindle nose flange dia. 381
mm 15”
Spindle bore 115
mm 4 ½”
Main motor 30
kW 40 HP (To be confirmed)
FEEDS
& THREADS
Sliding feeds per/rev. 0.1
– 1.5 mm 0.004” – 0.062”
Surfacing feeds per/rev. 0.05-0.8
mm 0.002” – 0.031”
Threads per
inch (36)
1 - 28 tpi
DP (32)
4 to 56
Metric pitches (30)
1.5 – 18
Module (22)
0 1 - 9

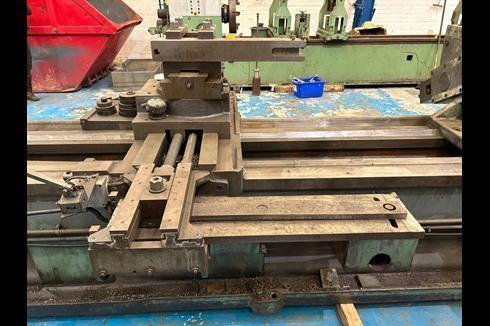

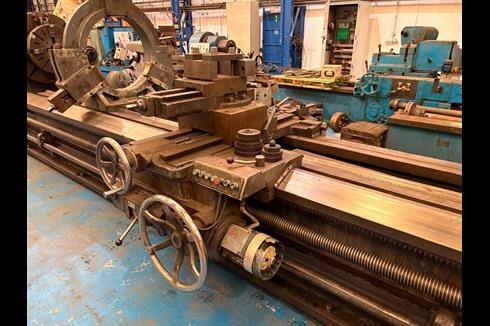

SADDLE & TOPSLIDE
Cross slide travel 863
mm 34”
Top slide travel 381
mm 15”

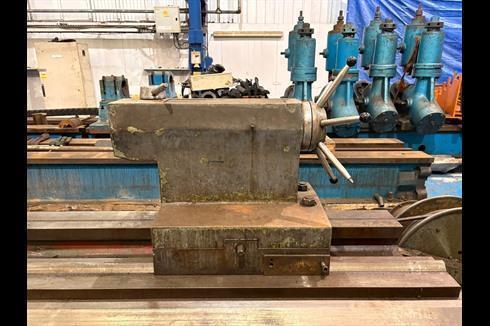

TAILSTOCK
Spindle diameter 133
mm 5 ¼”
Spindle travel 381
mm 15”
Spindle taper 6
MT
Machine complete with :-

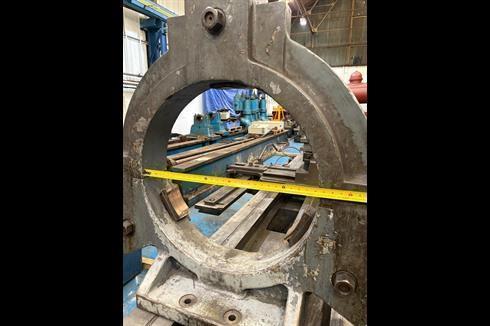

36” Faceplate with 4 adjustable jaws, 54”
Faceplate, Taper turning attachment, Power feed to top slide, 2 x 18” 3 point
steadies, 28” 3 point steady.
N.B.
Whilst every effort has been made to ensure that the above information
is accurate it is not guaranteed.
We advise prospective purchasers to check any vital details.
Health and Safety At Work Act 1974: It is not reasonably practical for ourselves as suppliers to ensure that
for your application the goods comply with requirements of the Act with respect
to guarding etc. Prospective purchasers
should ensure that a guarding specialist inspect the goods prior to use.
