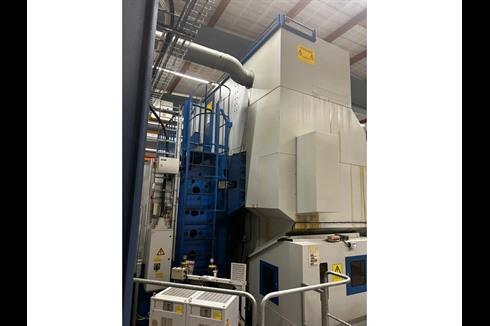

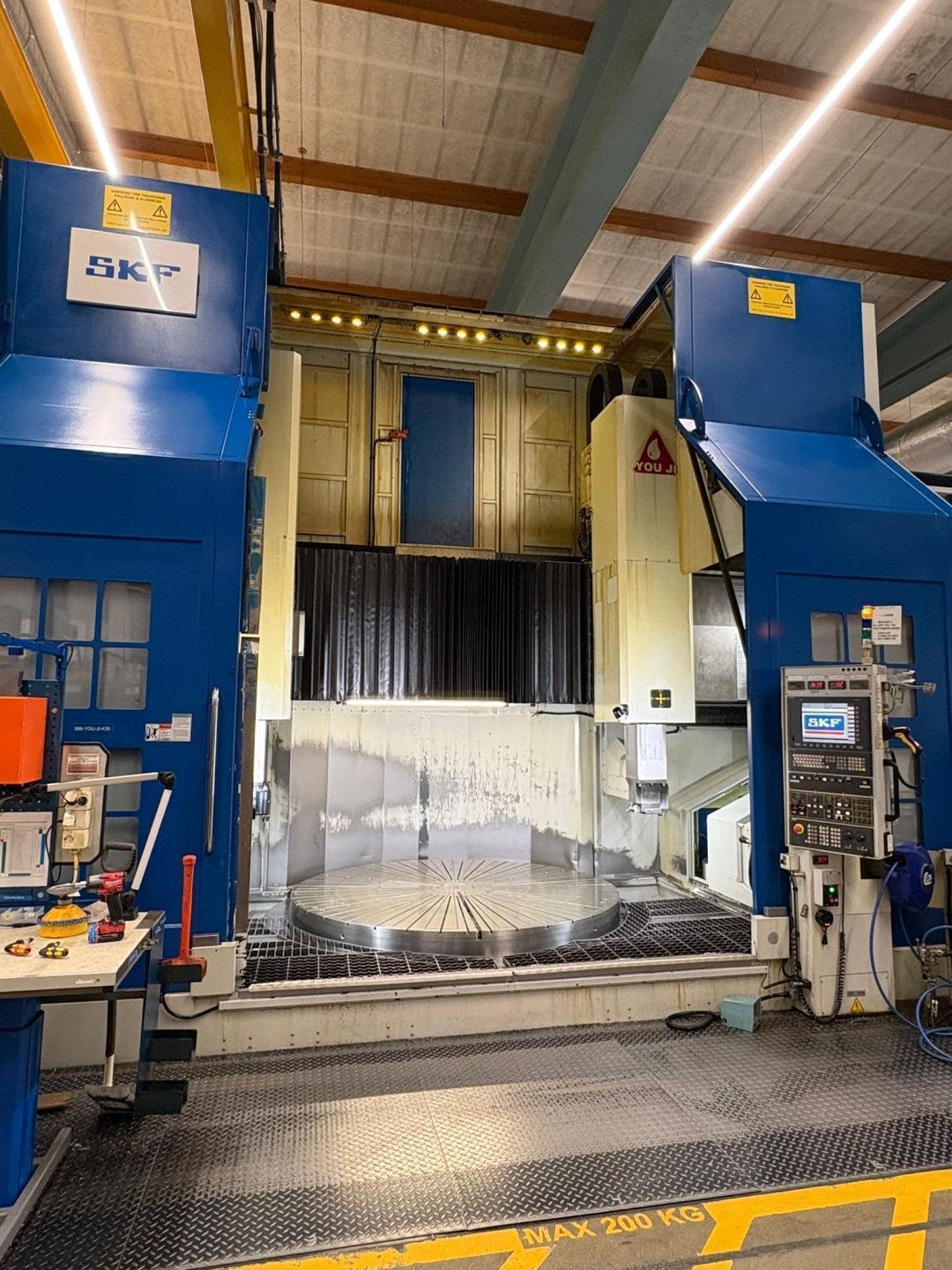

CNC Vertical latheVTS 2500 ATC
MACH-ID 9486
Type: VTS 2500 ATC

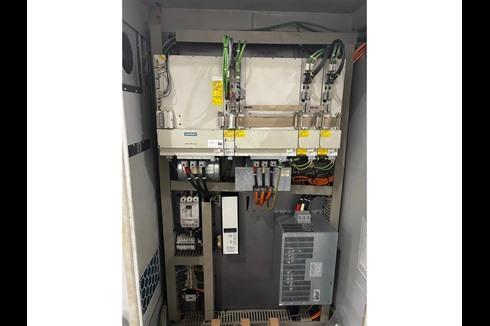

Control: SIEMENS 840D
Year: 2012

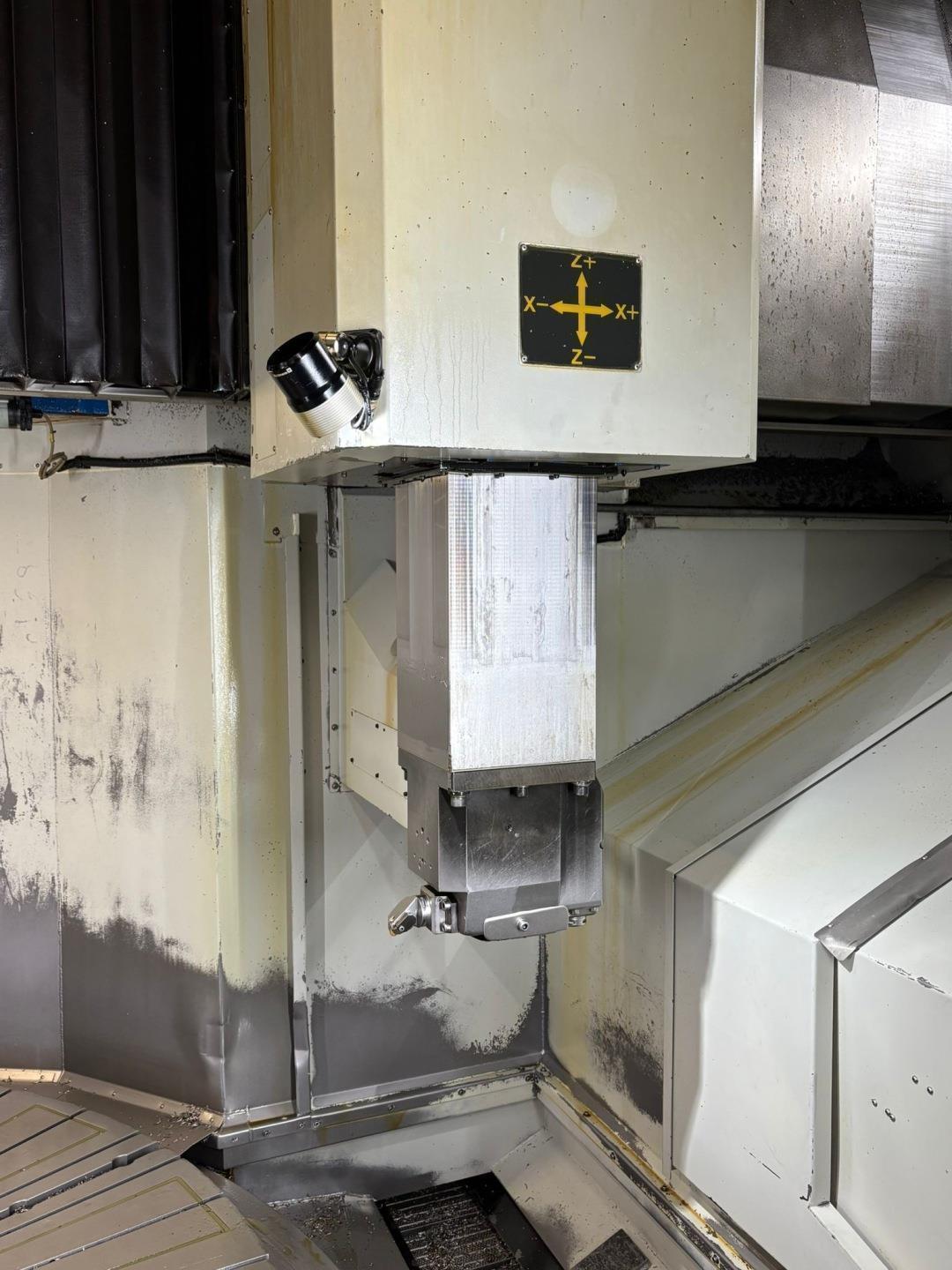

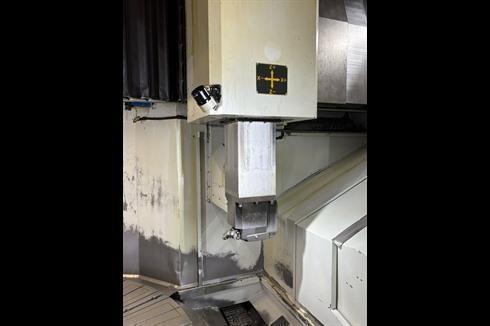

2 RAM Construction
Max Table Torque 6990 Kg/Nm
Feed rate X-Axis 8000 mm/Min
Feed rate Z-Axis 10000 mm/Min
Cutting feed 2000 mm/Min

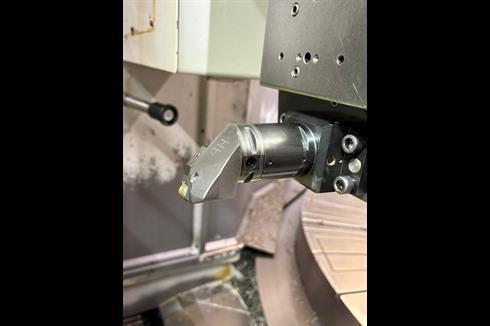

2 x ATC 24 Position with Capto C5
Max. weight in ATC 1000 Kg
High pressure coolant system

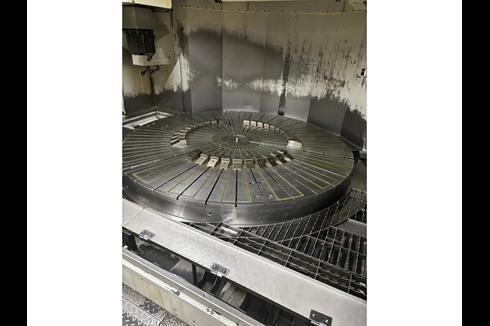

SAV Magnetic table Ø 2500 x 170 hieght
Max. turning Ø: 3000mm
Table Ø: 2500mm

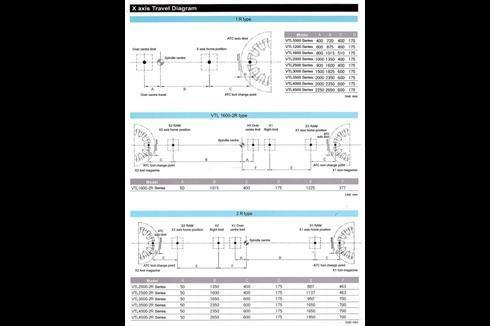

Horizontal movement support:1780mm
ATC / revolver: 24+24
Speeds / ranges: 1 - 160Rpm
Power: 114kW
Chip conveyor: Yes
Vertical movement support: 900mm

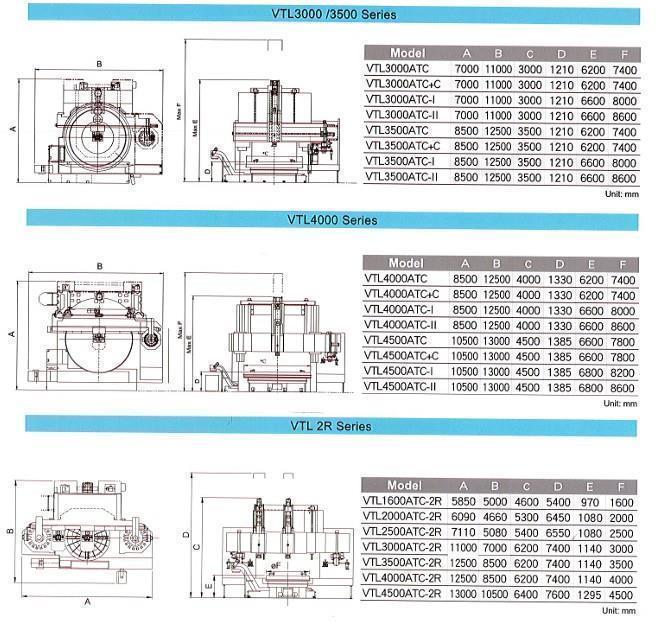

Length: 11400mm
Width: 7000mm
Height: 6000mm
Weight: 54000kg
