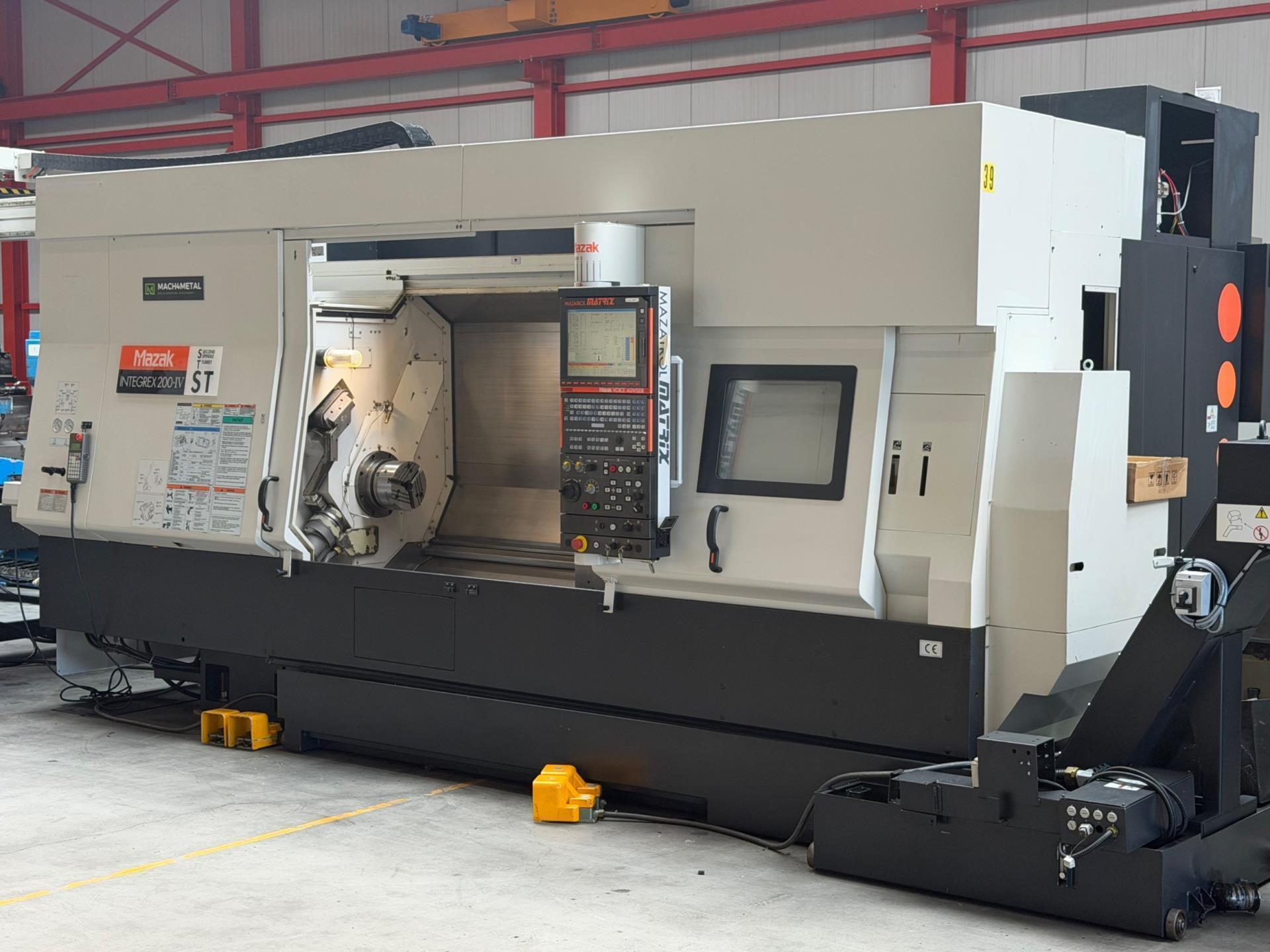

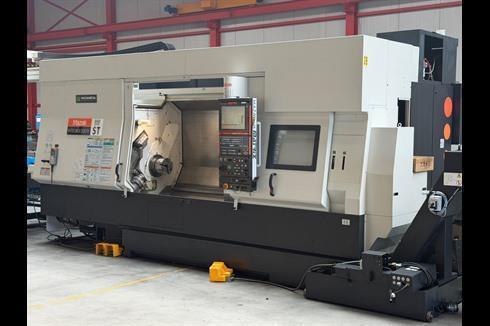

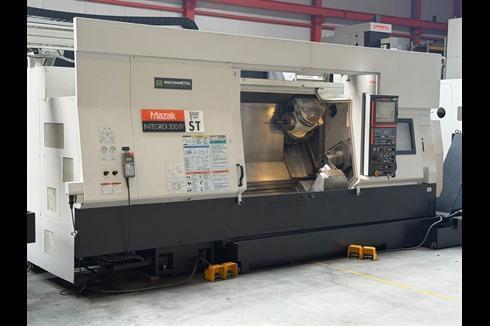

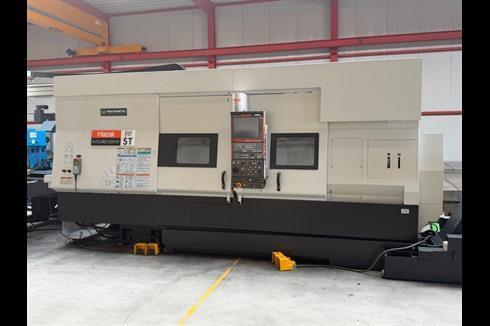

Multi-tasking latheMAZAK - INTEGREX 200-4 ST
MACH-ID 9811
Make: MAZAK
Type: INTEGREX 200-4 ST

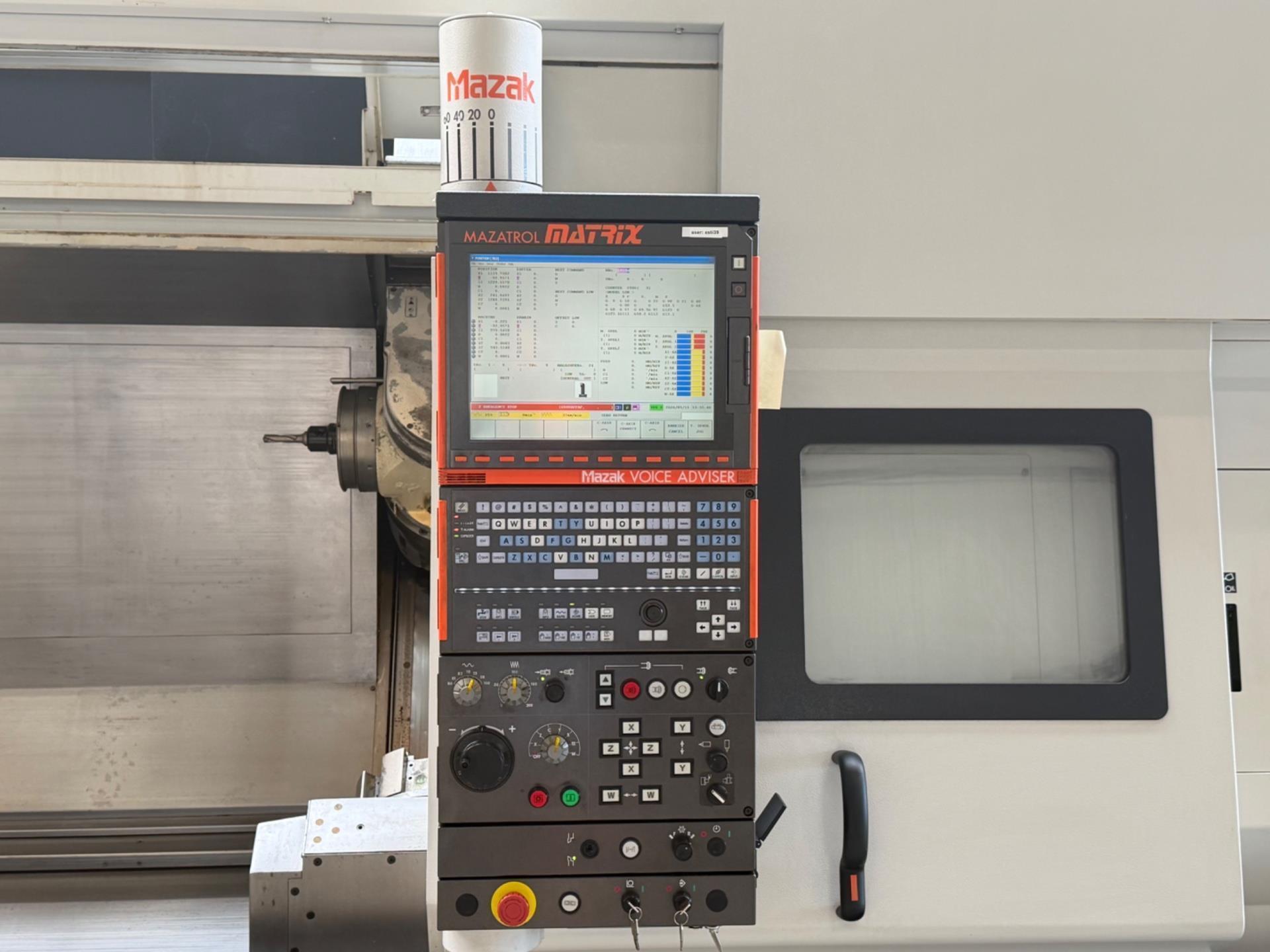

Control: MAZATROL MATRIX

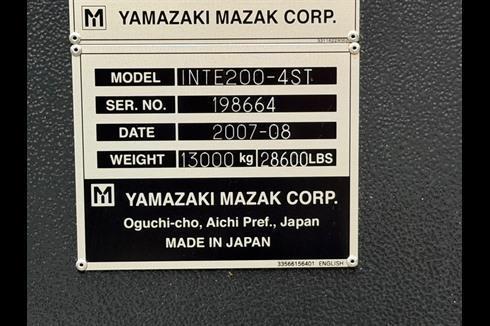

Year: 2007
Multi-Tasking Machining in a Single Machine Setup
Sub spindle for overtaking with full C-Axis 0,001 Degrees
5500 Cutting hours !
The INTEGREX IV series can finish all machining processes.

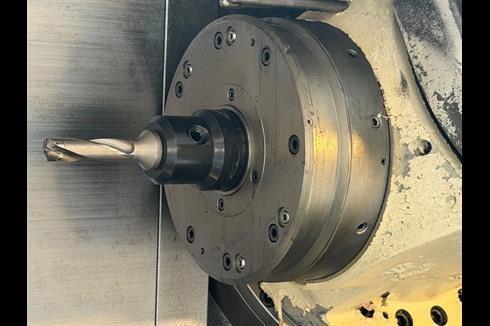

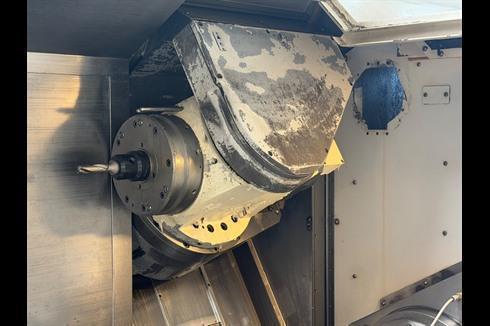

High speed, advanced milling spindle that can tilt up to 240 degrees swiveling.
Lower turret with rotary tool spindle so livew tooling
Chip conveyor with coolant and 15 Bar iKZ

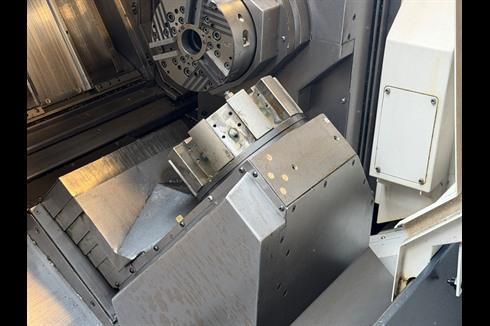

Double chuck KNCS-N 210-53 SMW Autoblock
MAZAK Flex -GL150F Gantry Loader
Gripping range 200 x 120 length x 15 Kg
Max. turning Ø: 660mm
X-Axis: 580mm
Y-Axis: 160mm
Z-Axis: 1545mm
B Axis: 270°
Spindle bore: 65mm
Speedrange: 5000Rpm
Spindle power: 22kW
Subspindle speeds:5000Rpm
Subspindle bore: 65mm
Subspindle power: 18.5kW
ATC / revolver: 40
B-Axis Toolsystem:Capto C6
B-Axis Speedranges:12000Rpm
Length: 5200mm
Width: 2550mm
Height: 2600mm
Weight: 14000kg
