Dane techniczne

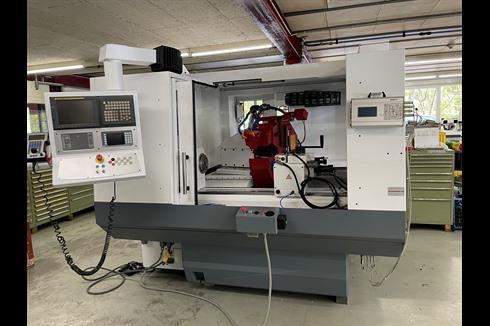

Fanuc 16i-T - sensitron 2 - Dittel - Marposs P4

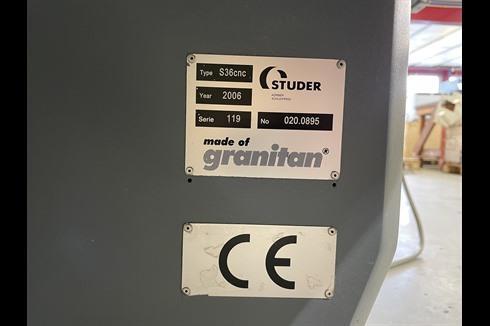

Year 2006
Manufacturing originCH
Voltage400 V
Netweight4500 kg
Custom position8460.2320
Dimensions 2700x2350x2100 mm
TECHNICAL DATA
Control Fanuc 16i-T
Center height 175 mm
Distance between centers 1000 mm
LINEAR AXES
Grinding length 500 mm
Strokes X : 267 mm
Z : 650 mm

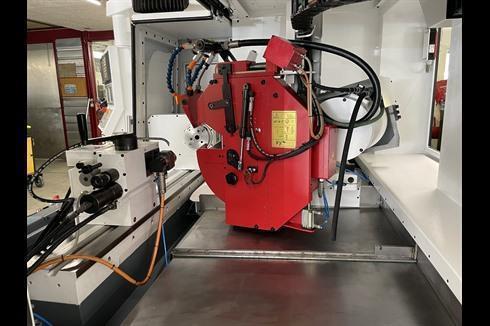

WHEEL HEADSTOCK
Continuous orientation +/- 8.5°.
External grinding wheel size 500x80x203 mm
Power 7.5 kW
Speed 44 m/sec.
WORKPIECE HEADSTOCK
Taper type MT5
C-axis +/- 5
Power 1 kW
Speed 30-1000 min-1
TAILSTOCK
Taper type MT3
Sleeve stroke 35 mm
Sleeve diameter Ø 50 mm
Max. workpiece weight 130 kg
POWER SUPPLY
Voltage 400V 50 Hz
errors and omissions excepted-data given without obligation
Handlowiec: SCEMAMA SA
Zapytaj o cenę
