Dane techniczne
Make/Brand TRUMPF
Model TruPulse 203
Year 2018
VIN/Serial L3423M0470

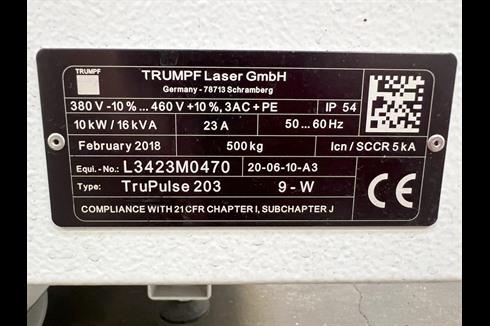

Voltage: 380 V -10% to 460 V +10%, 3-phase AC + PE
Protection Class: IP 54
Power: 10 kW / 16 kVA
Current: 23 A
Frequency: 50 to 60 Hz
Weight: 500 kg
Short-Circuit Current Rating (SCCR): 5 kA
Wavelength: 1064 nm
Output Power (Pulsed): 200 W
Pulse Energy: 55 to 90 J
Pulse Width: 0.3 to 50 ms
Repetition Rate: 833 Hz
Beam Divergence: 12 mrad
Peak Power: 6 to 8 kW
Fiber Diameter: 300 µm
