Dane techniczne

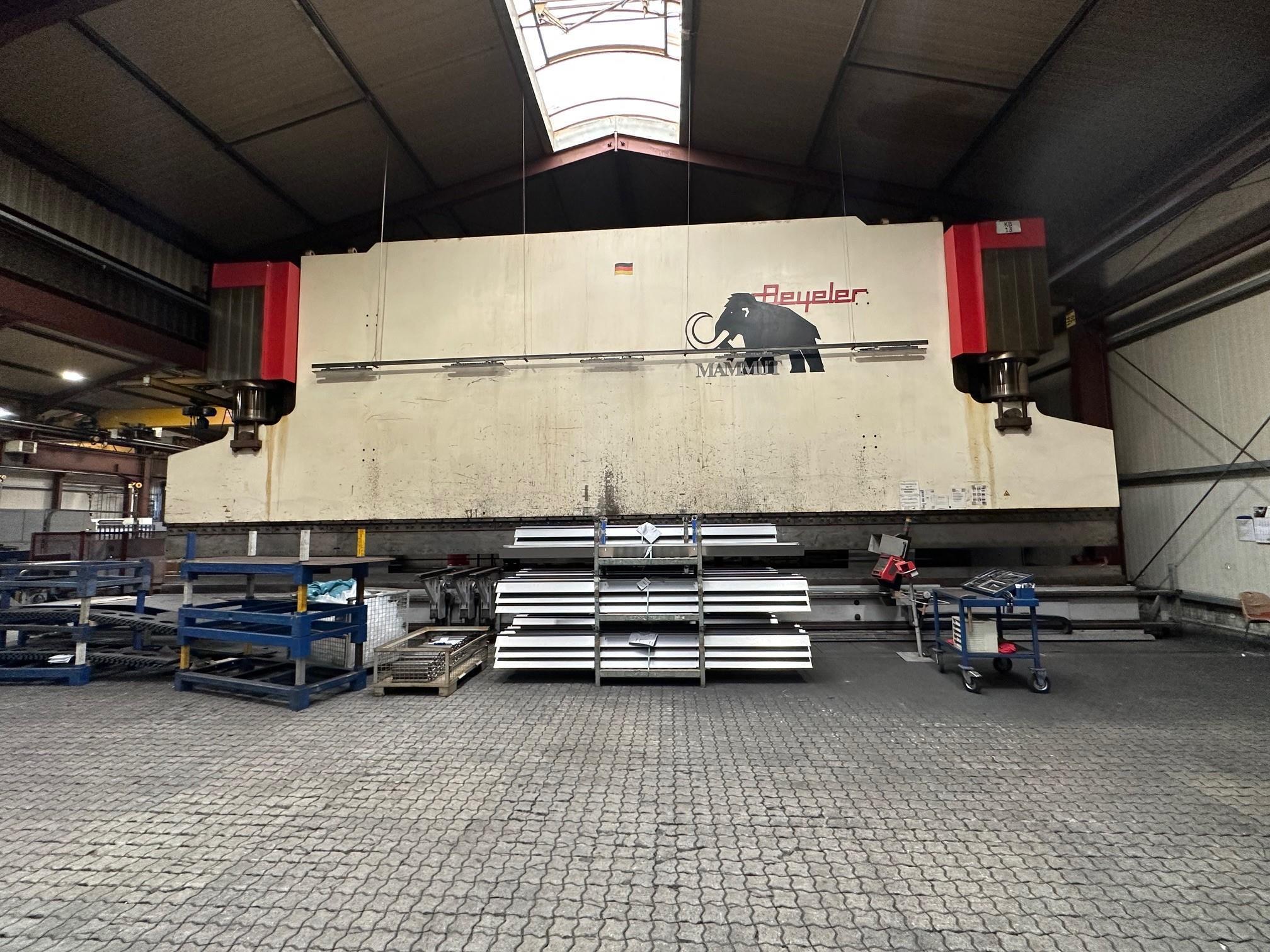

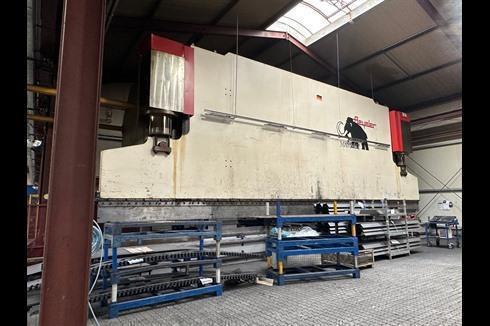

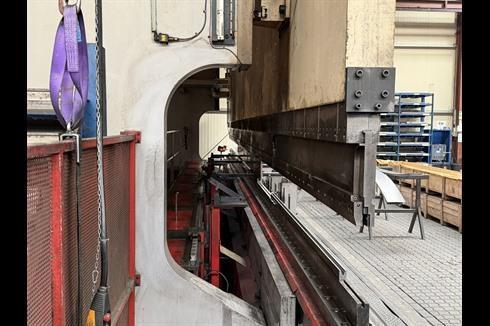

Press brakeBeyeler Mammut - PR10
MACH-ID 9470
Make: Beyeler Mammut
Type: PR10
Control: Cybelec DNC 1200
Year: 2000
Extra Heavy Duty Pressbrake

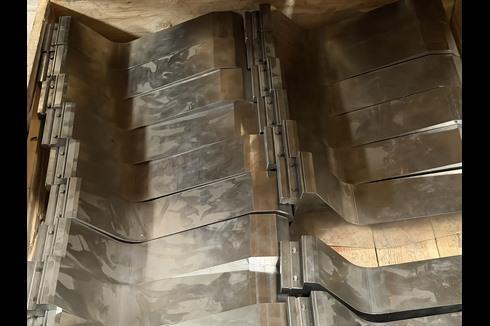

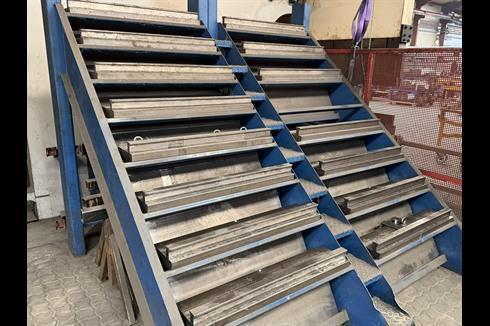

1 set top tooling 88 Gr

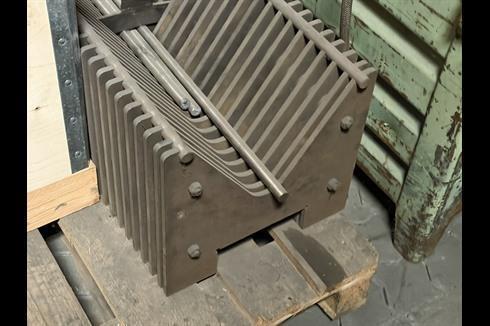

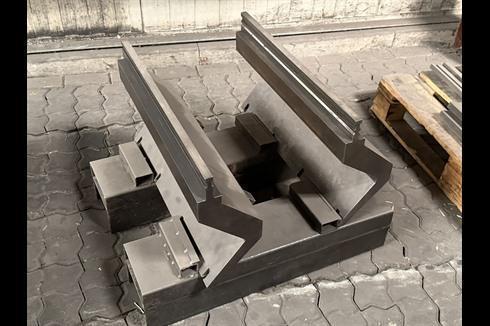

1 set lower dies

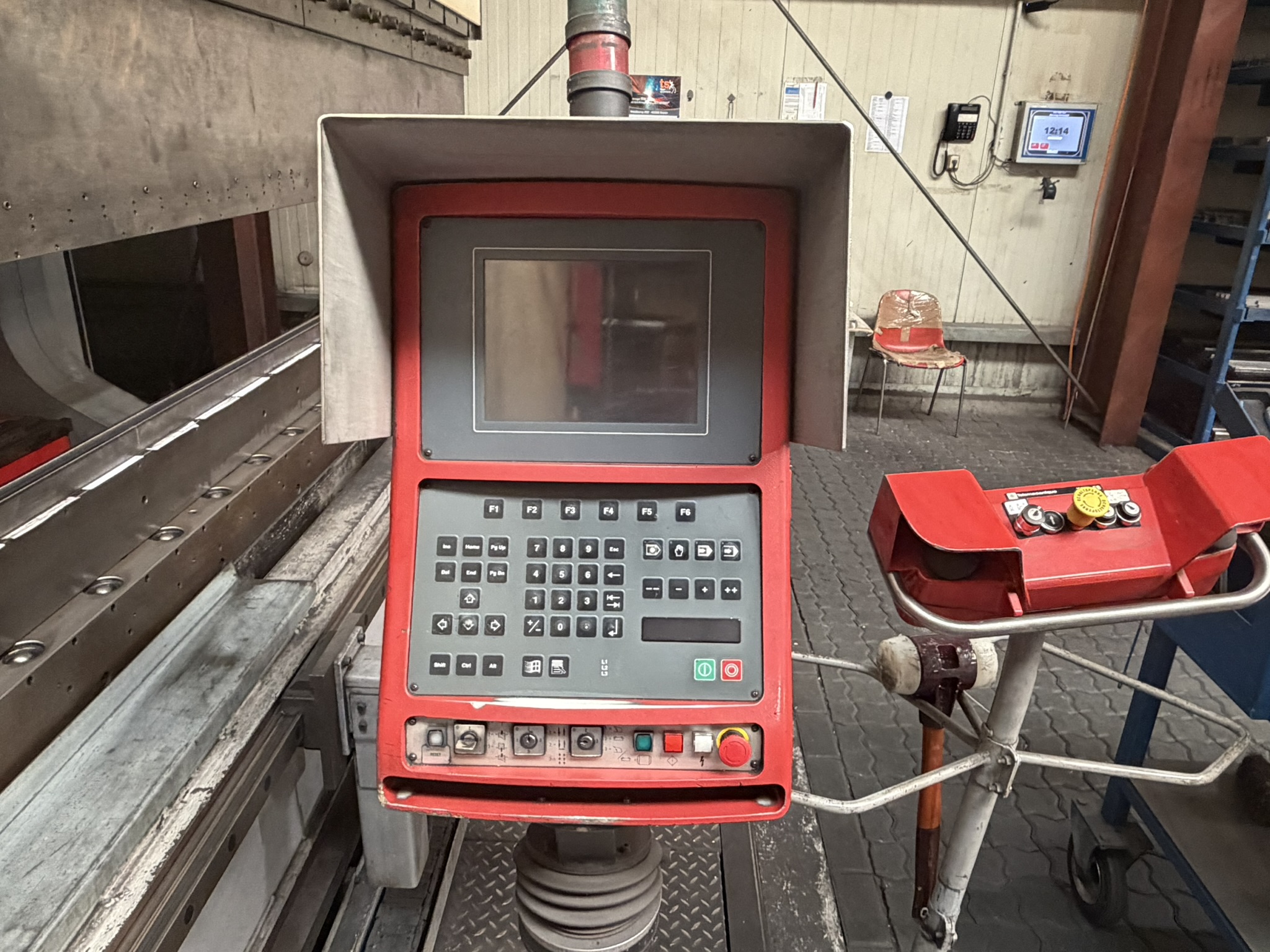

Cybelec DNC 106EC controller
Y1,Y2,X,R1,R2,R3,R4,OWK
Dynamic Crowning Lower Beam
What kind off jobs built for:
Shipbuilding & Naval like ; Hull sections, deck plates, bulkheads ribs
Defence & Military; armored vehicle structures, reinforced structe hardox / strenx
Mining and Heavy Equipment; dump bodies, crusher housing, excevator, chute liners
Contruction and Fabrication; bridge giders, box columns, steel frames
On and Offshore; pilers, decks, spreaders, crane componenet, wind energy offshore parts
Boiler an vessels; pressure vessels, power plant components, tower or pole section
Bending examples:
35 mm thickness at 10 meter length
26 mm thickness at 12 meter length
20 mm thickness at 15 meter length
Max. bending length: 15400mm
Distance between column: 12000mm
Max. pressing force: 2000T
Dis. Beam - Table: 1500mm
Beam stroke: 850mm
Troth beam: 1250mm
Approch speed: 80mm/min.
Working speed: 8mm/min.
Return speed: 80mm/min.
Number of controlled axis:10
Crowning: Yes
Hydraulic toolclamping: Yes
Power: 132kW
Length: 15400mm
Width: 6500mm
Height: 11400mm
Weight: 407000kg
