Eckold - KF 324

• Drukuj
• Dodaj do Ulubionych

• ProducentEckold
• Typ / ModelKF 324
• ID Numer9806
• Rok produkcji2011
• Witryna internetowaKF 324

Dane techniczne

• Nacisk1 t
• Dlugosc stolu1 mm
• Szerokość stolu1 mm
• Skok suwaka1 mm
• CNC MarkaNo CNC
• CNC Modelux

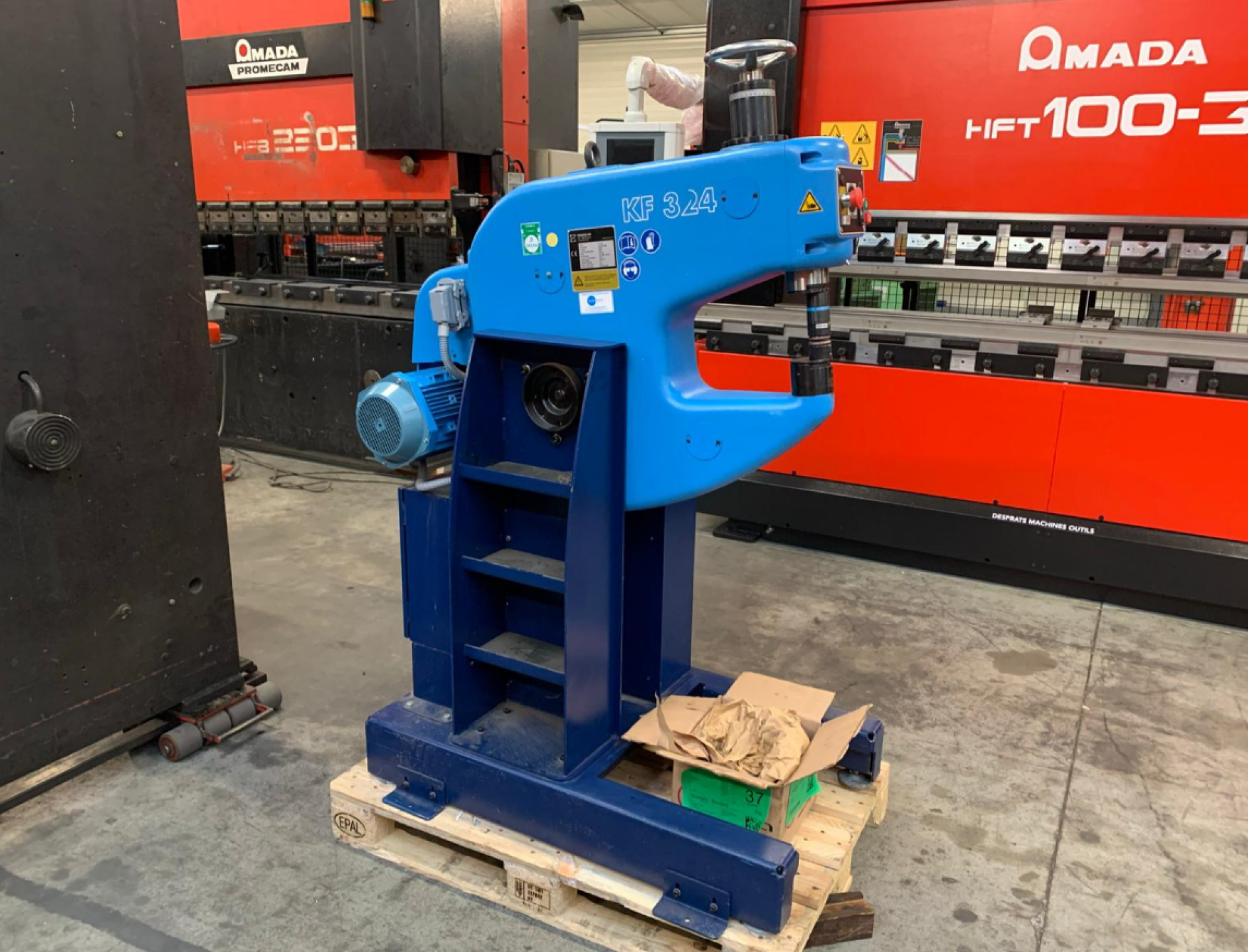

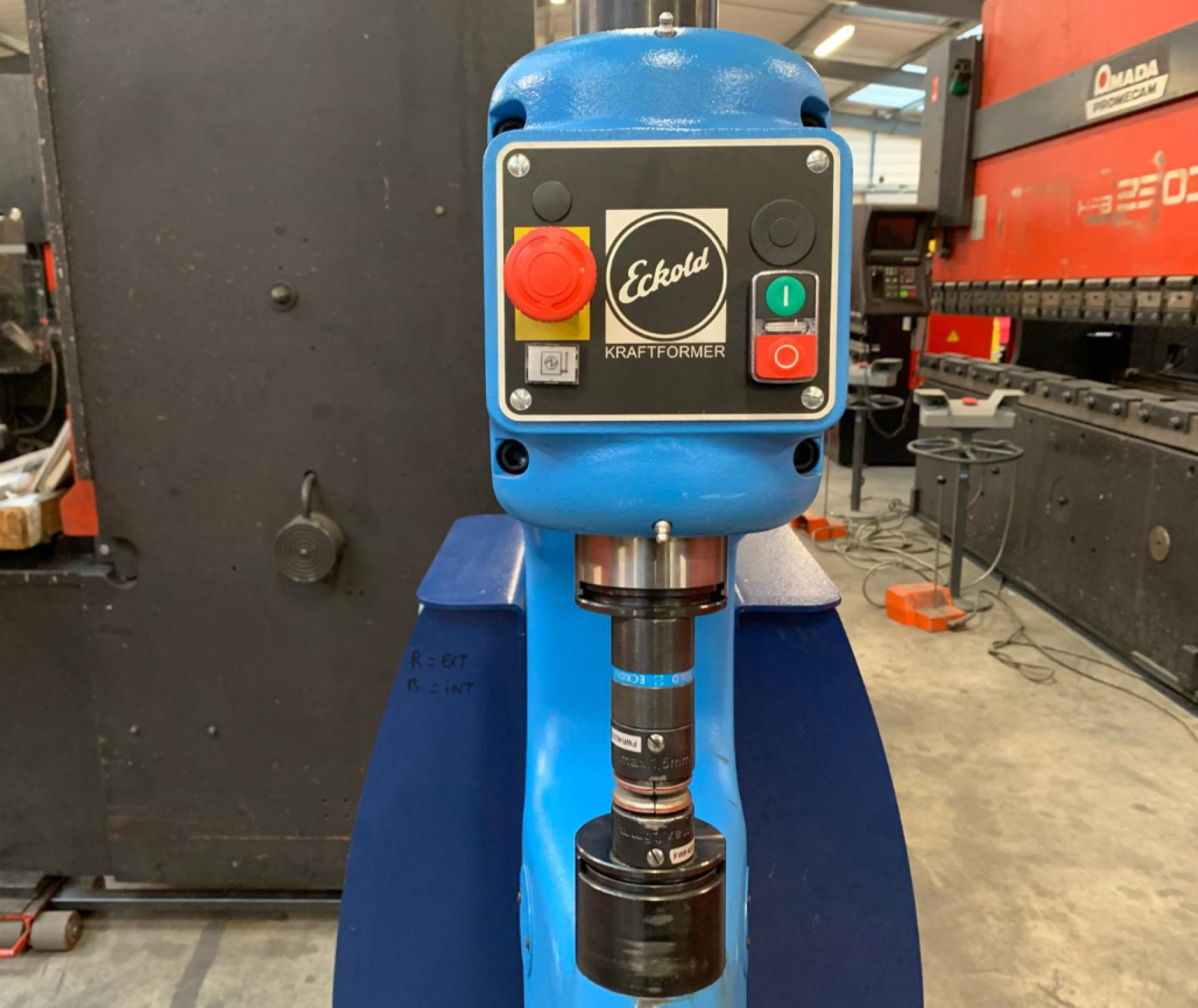

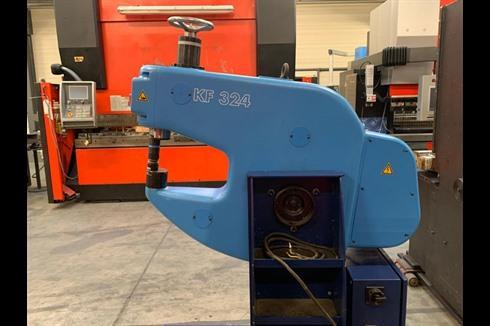

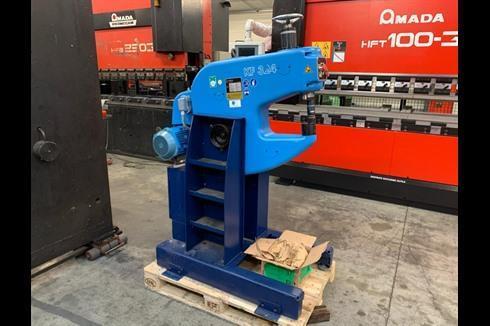

Eckold Kraftformers PiccoloWalter Eckold - KF 324
MACH-ID 9806
Make: Walter Eckold
Type: KF 324
Year: 2011

Eckold Kraftformer; motorised machine for Shrinking, Stretching, Doming, Planishing, Reforming, Flattening, Straightening
For Aircraft production and Maintenance.
For Car body shop specialists
For Artisans and Craftmen
Equipped with tool storage shelf in side column
Machine equipped for tooling:
FWR 402S
FWA 403S

Number of strokes:          400Min.
Maximum sheet thickness:    2.0mm
Horizontal troath:          340mm
Vertical troath:            245mm
Max. thickness Stainles:    1.5mm
Max. thickness Aluminium:   2.5mm
Motorised ram adjustment:   32
Manuel / Hand ram adjustment:Handwheel
Power:                      2.0kW

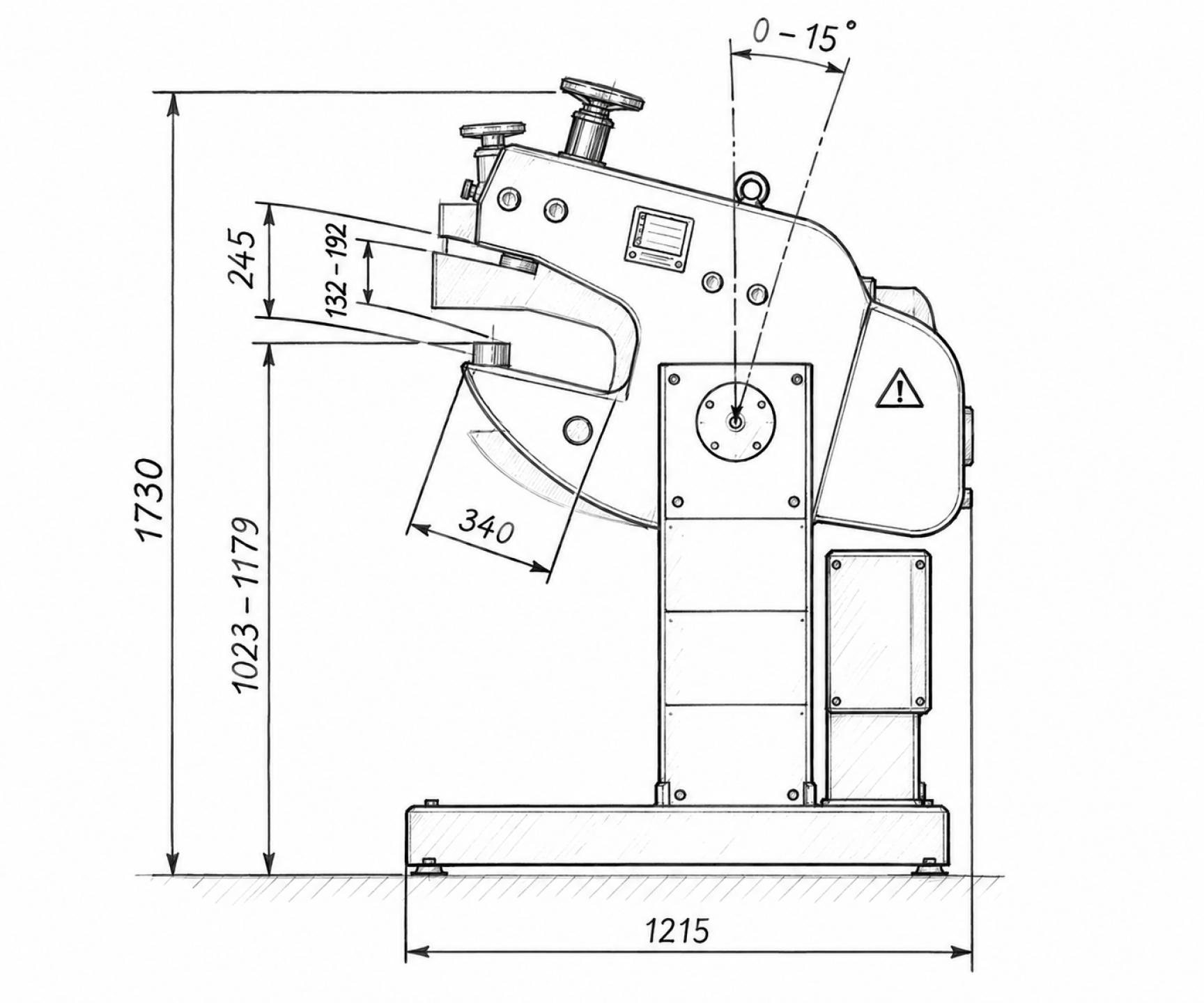

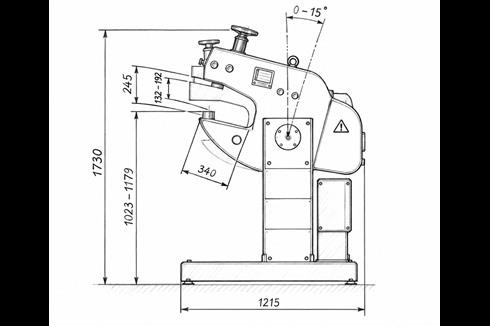

Length:                     1215mm
Width:                      680mm
Height:                     1730mm
Weight:                     504kg

Handlowiec: MACH4METAL BV

Zapytaj o cenę
