Dane techniczne
Brand FPT
Machine no F720
Type SIRIO-M60
CNC Brand Heidenhain
CNC Type TNC 426/430
Year of make 2002
Table length 7.000 mm
Table width 2.500 mm
X 6.000 mm
Y 2.000 mm
Z 1.200 mm
tool changer 40
Spindle taper SK 50
Rapid 15.000 m/min
Speed 312.5 ~ 5.000 RPM
Index by 2.5 °
Controlled rotary table 360 ° - 1.750 x 1.500 mm
probe Heidenhain
Nutrition 6.000 mm/min
Cooling by spindle

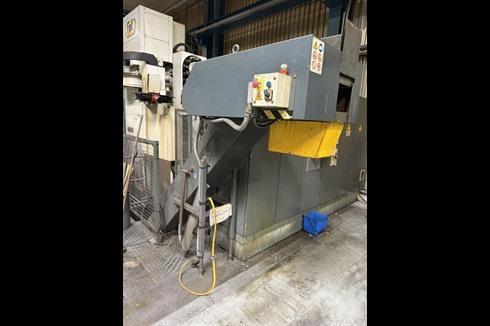

Chip conveyor
Power on the spindle 28 / 35 Kw
Machine weight 45.000 kg

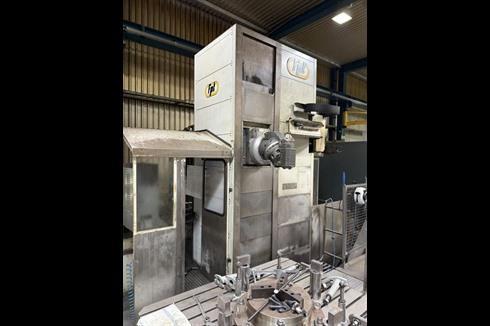

FPT Sirio-M60
Equipped with a Heidenhain TNC 426/430 control system including the corresponding handwheel and probe.

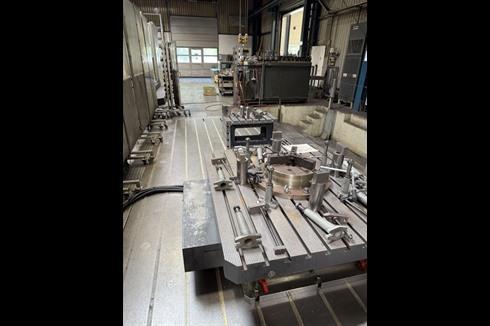

The machine is fitted with a STOLLE T-slot clamping plate measuring 7.000 x 2.500 mm,
and a CNC-controlled rotary table measuring 1.750 x 1.500 mm, fully 360° rotatable (C-axis).

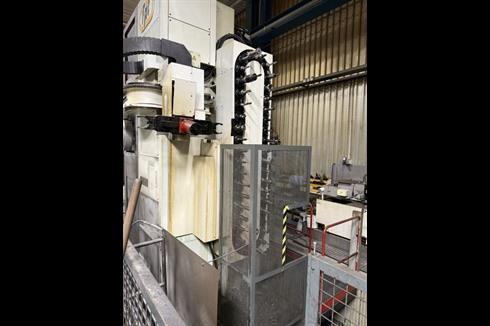

In addition, the machine is equipped with a Huron milling head, indexable in 2.5° increments, and also includes a horizontal milling head.
FPT documentation and manuals are available.

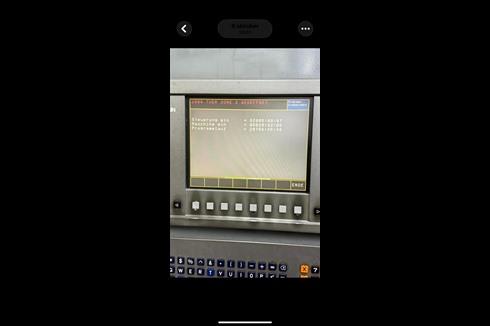

Operating hours:
• Control on: 92.005 hours
• Machine on: 85.020 hours
• Program active: 28.757 hours
