Mikron - HSM 400

  • ProducentMikron
  • Typ / ModelHSM 400
  • ID Numer21347
  • Rok produkcji2002
  • Cena€ 000
  • Witryna internetowaHSM 400

Dane techniczne

  • Przesuw wzdluzny X mm
  • Przesuw poprzeczny Y mm
  • Przesuw pionowy Z mm
  • Prędkość obrotowa rpm
  • Posuw szybki mm/min
  • Ilość narzędzi
  • Ilość palet
  • CNC Marka
  • CNC Modelu


Control: HEIDENHAIN iTNC 530 M
Operating hours: 22211
Technical data
Number of axis total: 3
Number of spindles: 1
Table load max.: 200 kg
Longitudinal travel (X-axis): 400 mm
Transversal travel (y-axis): 450 mm
Vertical travel (z axis): 350 mm
Pallets chanching device:
number: 10
Length: 240 mm
Width: 240 mm

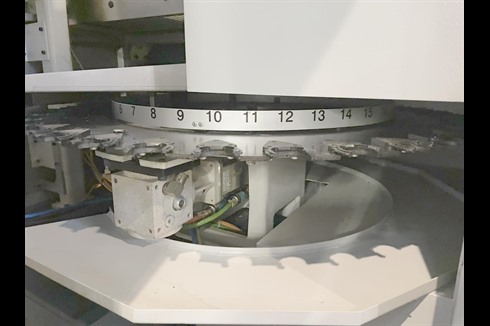

Tool changer:
Number of tools: 36
Time of tool changing: 10 sec
Average chip-to-chip time: 12.5 sec
Spindle nose: HSK: E40
Spindle speeds:
stepless
from: 100 rpm
up to: 42000 rpm
Work feed rate: 1 - 40 m/min
Feeds:
X axis: 0 - 40 m/min
Y axis: 0 - 40 m/min
Z axis: 0 - 40 m/min
Rapid traverse:: 42 m/min
Voltage 50 Hz 3x: 400 Volt
Spindle motor: 12.5 kW
Time under power: 25671 Hour
Operating time: 22211 Hour
Working time: 10475 Hour
Spindle run time: 16516 Hour
Noise level: 75 dB (A)
Machine's weight about: 6500 kg
Overall dimensions machine:
Length: 2100 mm
Width: 2400 mm
Height: 2500 mm
Various accessories:
Set of toolholders (without tools)
Set of collets
Water cooler: BURN
Infrared measuring sensor: m&h
Tool break control: BLUM
Chip conveyor
Handwheel electroinic
Lamp
Hot air shrink machine: HOT SHOT
