Données techniques

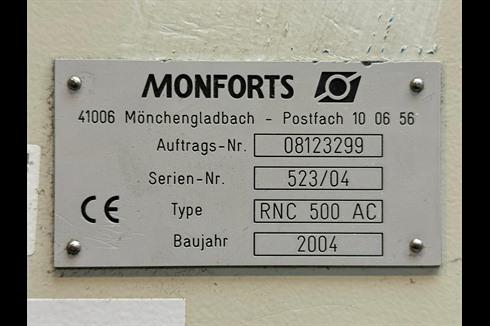

Brand Monforts
Machine no D1049
Type RNC 500AC
CNC Brand Fanuc
CNC Type Series 21i-TB
Year of make 2004
3-axis
Distance between centers 1.500 mm
Center height 300 mm
Turning diameter above the bed 600 mm ø
Turning diameter above the support 500 mm ø
3-jaw chuck 315 mm ø
Spindle speed 16 ~ 4.000 RPM
Spindle Speed 16 ~ 4.000 RPM
Spindle motor 18.5 / 30 Kw
Tool changer 12
Various tools
C axis attachment
Machine size (lxwxh) 6.000 x 2.300 x 2.100 mm
Machine weight 7.500 kg
Monforts RNC 500 AC CNC Turning Lathe

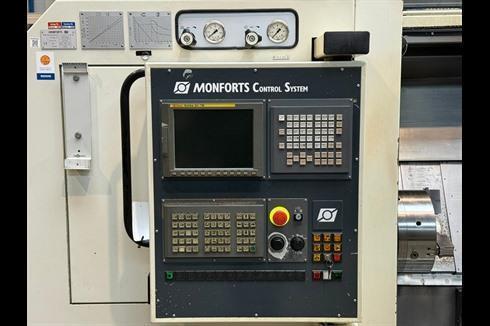

• Control system: Fanuc 21i-TB

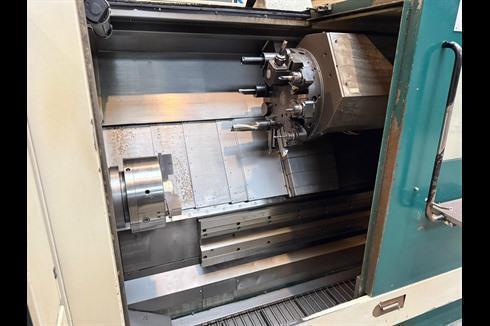

• Turret: 12 stations, fully driven, including various live tools

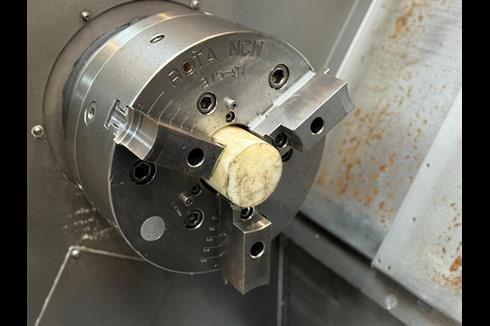

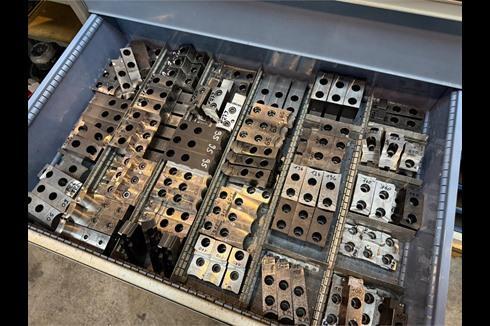

• Hydraulic chuck with additional jaw sets

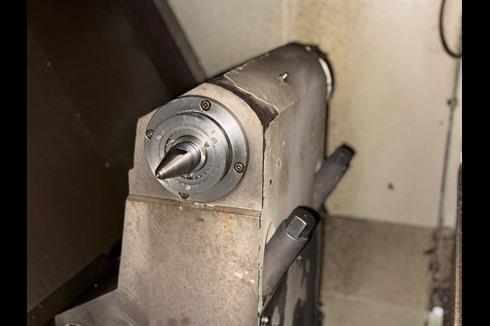

• Tailstock

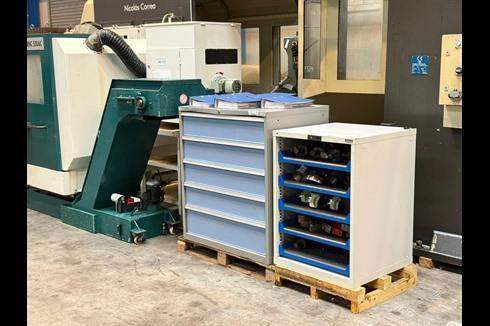

• Chip conveyor: installed
• W+W filtration system
• Documentation: original Monforts and Fanuc manuals included
Marchand: A JANSEN MACHINEHANDEL BV
Demande de prix
