Données techniques
Manufacturing origin Swiss
Netweight 4000 kg
Custom position 8460.2320
TECHNICAL DATA (standard)
Distance between centers 1000 mm
Centers height 175 mm
Max. workpiece weight 120 kg
Longitudinal slide Z
Max. travel 1000 – 1150 mm
Speed 0.001 to 10’000 mm/min
(mod.beg.years2000 : 0.001-5'000 min-1)
Resolution 0.0001 mm
Cross slide X
Max. travel 285 mm
Speed 0.001 to 20’000 mm/min
(mod.beg.years2000 : 0.001-10'000 min-1)
Resolution 0.0001 mm
Wheel headstock (universal variant)
Pivoting -15 to 225°
(mod.beg.years2000 : -15 to 195°)
Pivoting axis 2.5 / 1 ° Hirth
Drive power 7.5 or 9 kW or 11 kW
Wheel 500x63 (80/110F5) x203 mm
Workpiece headstock
Speed 1 – 1500 min-1
Fitting taper MT4 or MT5 / ISO 50
Drive power 1.6 or 3.0 kW or 4.0 kW

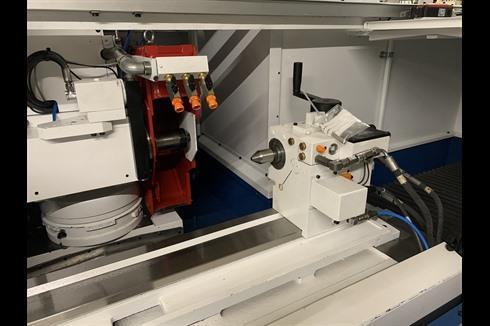

Tailstock
Fitting taper MT3 or MT4
Barrel travel 35 / 50 mm mm
(mod.beg.years2000 : 35 mm.)
Barrel diameter Ø 50 mm
Smooth setting +/- 40 µ
Control Fanuc Oi-TD Standalone Panel i
(mod.beg.years2000 : Fanuc 21i-TB
errors and omissions excepted-data given without obligation
