Données techniques
WITH AWF

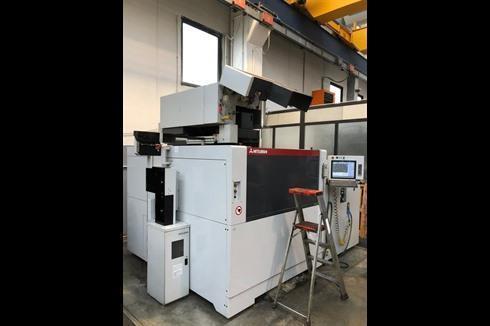

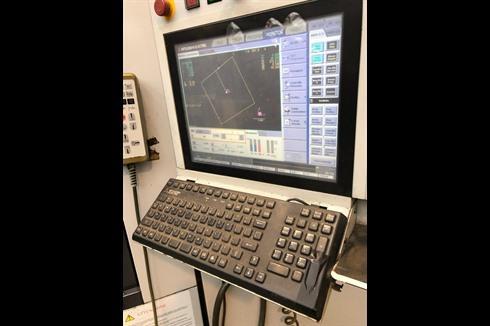

CONTROL UNIT MITSUBISHI 3D Advance
X-axis stroke 750 mm
Y-axis stroke 500 mm
Z-axis stroke 410 mm
U/V-axis strokes ± 100 mm
Rapid feeds X-Y-Z 1,3 m/min
Max piece weight 3000 Kg
Max piece size 1300x1000x405 mm
Table size 1100x875 mm
Draft angle/draft height ± 15 degrees; 360 mm
Wire speed 0-15 m/min
Wire diameter 0,20-0,36 mm
Weight 5700 Kg
Overall dimensions 3495x3143x2633 mm
EQUIPPED WITH:
-CNC Z axis
-Wire crusher
-Linear scales on X and Y axis
-20 Kg reel of thread unit
USED MACHINE
YEAR 2012
Marchand: BENTIVOGLIO MACCHINE UTENSILI S.R.L
Demande de prix
