Données techniques

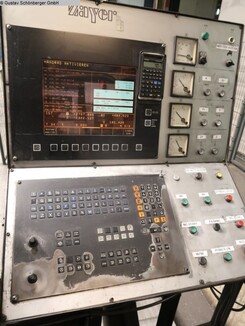

- CNC control Heidenhain TNC 415B

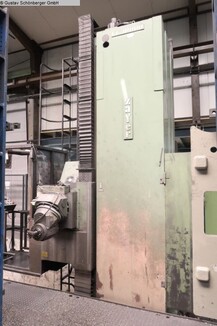

- controlled 2-axes NC-milling head 2,5°

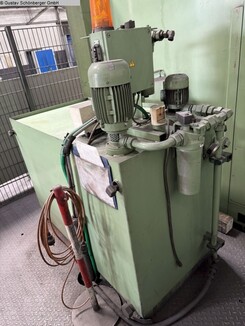

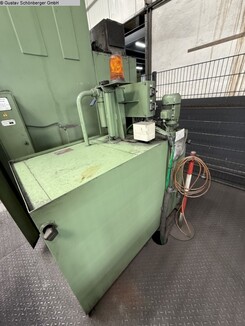

- coolant device
The machine will be sold without the plate field
Accessories:
ca. 20 pieces tool tapers DIN 2080 with bolts DIN 69872
some spare parts like bevel gears for the milling head and ball screw for
X-axis.
Technische Daten / technical details:
Verfahrweg X längs / X-travel longitudinal 10000 mm
Verfahrweg Y quer / Y-travel cross 1500 mm
Verfahrweg Z vertikal / Z-travel vertical 3000 mm
Werkzeugschaft / spindle taper SK50
Drehzahlbereich (2-stufig) / spindle speed (2-steps) 35-3000 UpM /rpm
Vorschub / infeed 6-10000 mm/min
Eilgang X,Y,Z / rapid feed X,Y,Z 10, 15, 10 m/min
Antriebsleistung Hauptmotor 100%ED / drive capacity main motor 100%ED 37
kW
Gewicht der Maschine ca. / weight 39300 kg
Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich -
Technical data, accessories and description of the machine are not binding.
