Données techniques
Pressing capacity 160 ton
Table clamping area 1,100 x 1,280 mm
Ram clamping area 850 x 890 mm
Distance between guides 1,120 mm
Distance between columns (below guide ways) 1,350 mm
Distance between Table and ram in upper position approx. 400 mm
No. of strokes 40 - 120 /min
Adjustment of stoke 67 / 115 / 160 mm
Ram adjustment, motor driven 125 mm
Ejector travel 50 mm
Total electrical load, approx. 40 kW - 500 V - 50 Hz
Weight, approx. 24,000 kg
Accessories / Special Features

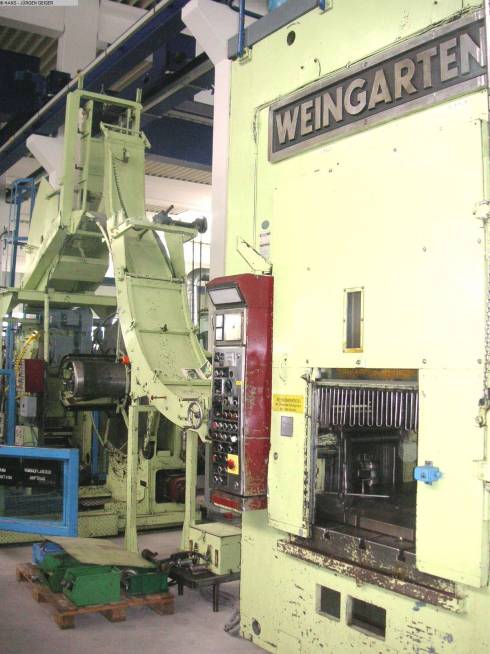

* WEINGARTEN Sheet Metal Uncoiler with overhead loop control (space saving because it does not need a loop-pit). Strip width 375 mm. The loop control guides the strip-material from the uncoiler to the machine thru a straightening device with automatic supervision.
* 8-track slide bearing guide.
* Automatic oil-circulation lubrication.
* Hydraulic overload protection in conjunction with the ORTLINGHAUS Clutch Brake
* Safety doors. * Motor-driven ram adjustment 125 mm.
* Required space: 4 x 2.2 m. Height max. 4.6 m (only press)
