Q U O T A T I O N
We are pleased to offer you ex our stock, subject to prior sale, and error in technical :
MABU (D)

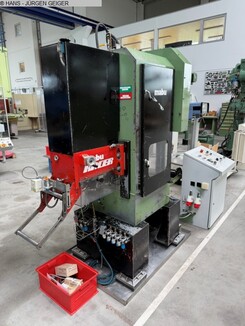

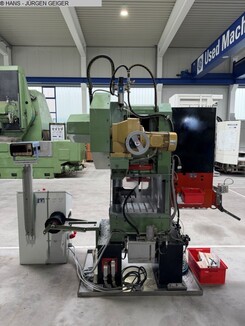

High Speed 4 Column Automatic Punching Press
model 25 VP / RC
year 1985
Press force nominal 25 to
Punching Speeds 120 - 600 strokes/min
Stroke length adjustable 7 - 62 mm
Ram adjustment range 50 mm
Mounting height 225 - 310 mm
Table size 560 x 640 mm
Distance between columns sides 320 / 340 mm
Distance between columns front/back 380 / 400 mm
Opening in table / clamping plate 120 x 230 mm
Ram clamping plate size 240 x 280 mm
MABU Strip feed RACER 11
Max. strip width 150 mm
Max. feed stroke 120 mm
Main drive approx. 3 kW
Total drive approx. 3,5 kW - 380 V - 50 Hz
Weight approx. 2.400 kg
Accessories / Special Features:
• MABU Strip feed device model RACER 11 RCTF, mounted on the left side,
stroke adjustable, infeed height adjustable,
• Automatic continuous stroke and single stroke available as well as inching mode,
piece counter, blow out device

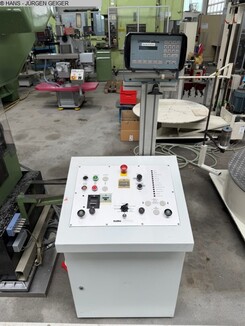

• Sep. control cabinet and switch cabinet, Vibration dampening machine shoes
• Large, soundproof cabin (disassembled)
• Various accessories, manuals and former safety test reports
Condition : very good, press was regularly maintained !
Please click here to view soon a video of the machine running :
https://www.geiger-germany.com/images/videos/xxxxx/xxxx.mp4 !
Delivery : immediately available, FCA Metzingen
Payment : 100 % Net, after conclusion of contract, before loading
We always have a large selection of all kinds of presses available. Please let us know your requirements.
