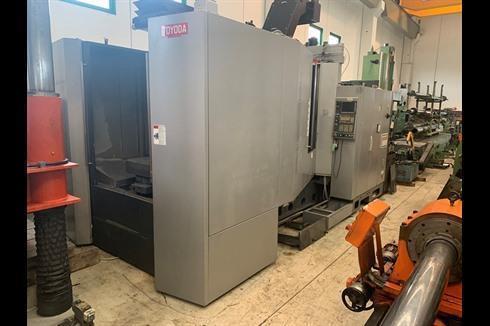

Toyoda - FH 800 SX

Toyoda - FH 800 SX
  • Toyoda - FH 800 SX
  • Toyoda - FH 800 SX
  • Toyoda - FH 800 SX
  • Toyoda - FH 800 SX
  • Toyoda - FH 800 SX
  • Toyoda - FH 800 SX
  • Toyoda - FH 800 SX

Demande de prix
  • MarqueToyoda
  • ModèleFH 800 SX
  • Numéro d'inventaire08839
  • Année de construction2008
  • SiteFH 800 SX

Données techniques

  • Longueur palette800 mm
  • Largeur palette800 mm
  • Longitudinal X1250 mm
  • Transversale Y1100 mm
  • Verticale Z1050 mm
  • Nombre de pallettes2
  • Nombre d'outils ATC121

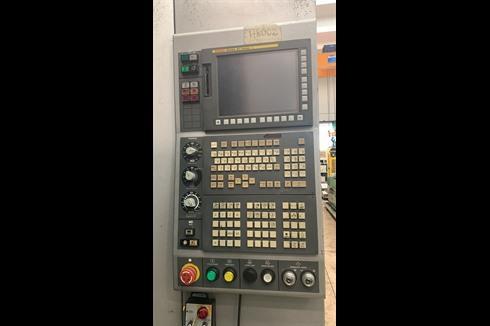

  • CNC MarqueFanuc
  • CNC Modèle31i

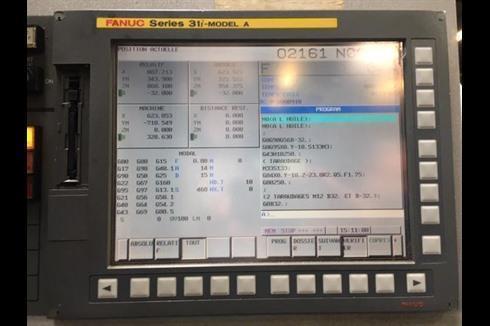

CNC FANUC 31i
WORKING AREA:
Axis X stroke mm 1250
Axis Y stroke mm 1100
Axis Z stroke mm 1050
Distance from spindle nose to table center mm 200/1250
Distance form spindle nose to pallet surface mm 100/1200
Workpiece (swing diameter x height) mm 1200x1250

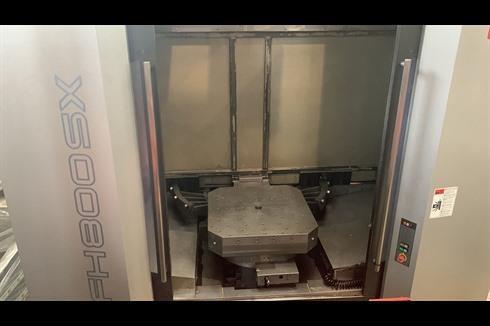

PALLET AND TABLE:
N.2 pallet
Dimensions mm 800x800
Indexing angle (NC-table 0.001 degrees)
Indexing time 0-90 degrees 2.5 s
Pallet height from floor mm 1300
Max load on pallet Kg 1000
SPINDLE:
Spindle speed rpm 6000
Spindle taper ISO 50 DIN 69871
Motor power (30 min./continuous) kW 30/22
RAPID FEEDRATE:
Rapid feedrate m/min 48

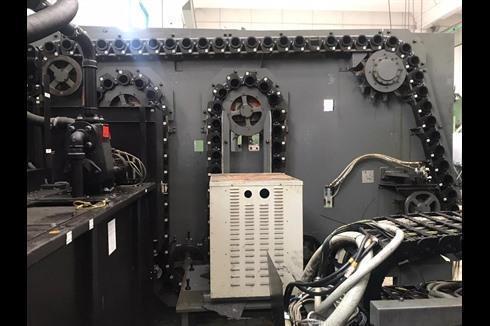

AUTOMATIC TOOL CHANGE:
Tool change 121 positions
Max tool weight Kg 35
Max tool dimensions (diam.xheight) mm 120x670
EQUIPPED WITH:
-Chain chip conveyor
-Knoll high pressure pump through the spindle 70 bar
-Renishaw probe infrared signal OMP 60
-Direct measuring system with absolute liear scales mitutoyo

USED MACHINE
YEAR 2008
FIRST INSTALLATION 2010
