Données techniques

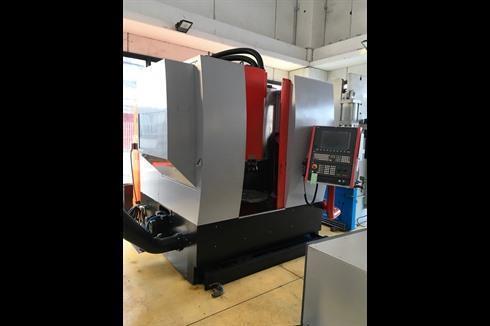

MOD. MAXMILL 500
5 AXIS

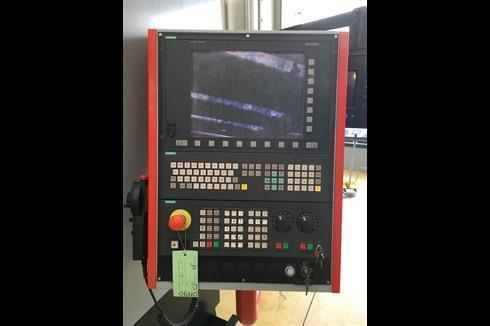

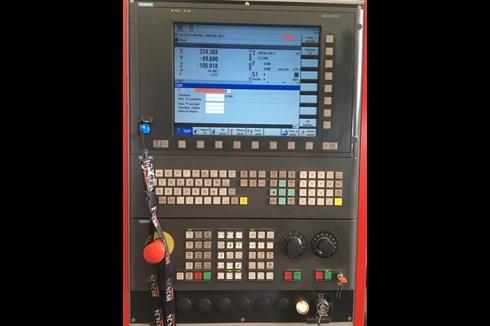

CNC Siemens SINUMERIK 840D SL
WORKING RANGE:
Axis X stroke mm 650
Axis Y stroke mm 550
Axs Z stroke mm 500
Axis B +/- 100 degrees
Axis C mm 360 degrees
Distance between spindle nose/table min/max 150-650

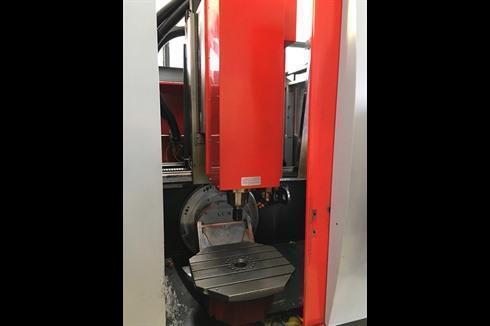

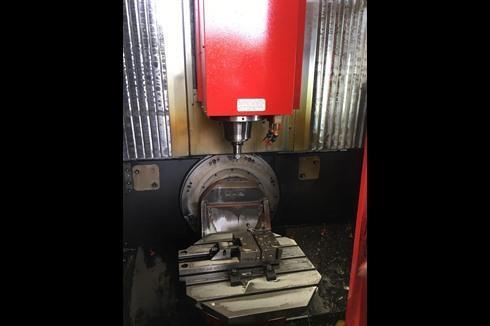

TABLE:
Table dimensions mm 600x600
Max table load mm 250
T-slots number 5
T-slots dimensions mm 16
T-slots distance mm 100

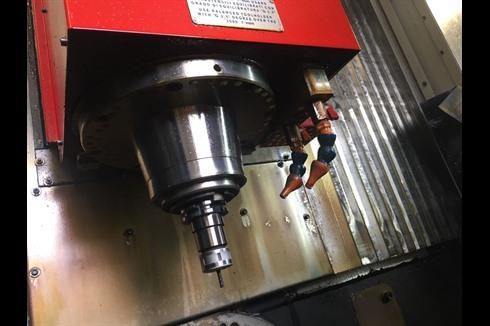

SPINDLE:
Spindle speed rpm 50-10.000
Max spindle power kw 11
Tool holder DIN 69871 ISO 40

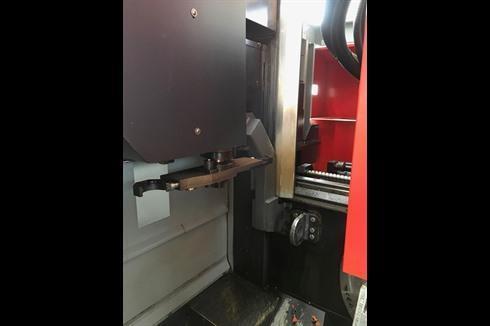

TOOL CHANGE:
Tool magazine 30 positions
Max tool diameter mm 80
Max tool diameter (without adjacent tool) mm 125
Max tool lenght mm 250
Max tool weight Kg 8
OVERALL DIMENSIONS AND WEIGHT:
Height mm 2800
Overall dimensions (without chip conveyor) mm 2430x3500
Machine weight Kg 6850
USED MACHINE
YEAR 2010
Marchand: BENTIVOGLIO MACCHINE UTENSILI S.R.L
Demande de prix
