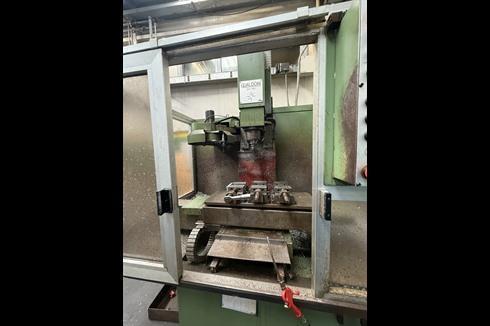

Gualdoni - GV 93 CNC

• Print
• Add to favorites

• BrandGualdoni
• Type/ModelGV 93 CNC
• Stock NumberGV-93-CNC
• Year1998

Technical details

• Table length800 mm
• Table width250 mm
• Longitudinal X450 mm
• Cross Y250 mm
• Vertical Z500 mm
• CNC BrandHeidenhain
• CNC Model360

TABLE 800 x 250   MM.
TABLE TRANSVERSAL TRAVEL (X) 450   MM.
TABLE LONGITUDINAL TRAVEL (W) 250   MM.
HEAD VERTICAL TRAVEL (Y) 500   MM.
SPINDLE TAPER ISO 30
SPINDLE MOTOR POWER 5   KW.
SPINDLE SPEEDS 100 ÷ 8.000   RPM.
WORKING FEEDS (X; Z; Y) 10 ÷ 5.000   MM/MIN.
RAPID FEEDS (X; Z; Y) 15.000   MM/MIN.

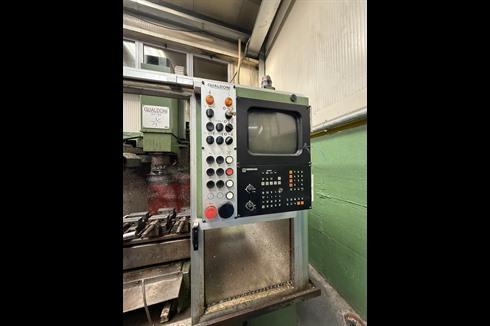

CNC HEIDENHAIN 360
TOTAL WEIGHT 2.000   KG.
BUILT IN 1998
COMPLETE WITH:
- 10 SEATS ATC
- 3 VICES
- SAFETY PROTECTIONS

Dealer: NUOVA LOMBARMET SPA

Price request
