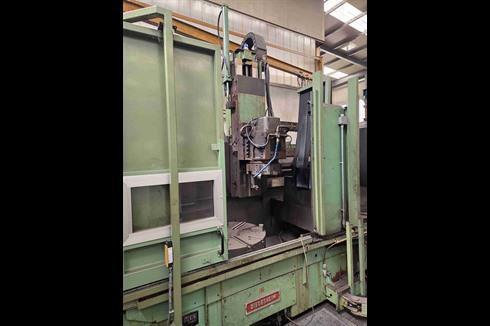

Diedesheim - V 80 21 GE CNC

Diedesheim - V 80 21 GE CNC
  • Diedesheim - V 80 21 GE CNC
  • Diedesheim - V 80 21 GE CNC
  • Diedesheim - V 80 21 GE CNC
  • Diedesheim - V 80 21 GE CNC
  • Diedesheim - V 80 21 GE CNC
  • Diedesheim - V 80 21 GE CNC
  • Diedesheim - V 80 21 GE CNC
  • Diedesheim - V 80 21 GE CNC
  • Diedesheim - V 80 21 GE CNC

Price request
  • BrandDiedesheim
  • Type/ModelV 80 21 GE CNC
  • Stock Numberv-80-21-ge-cnc
  • Year1983

Technical details

  • Table diameter1150 mm
  • Turning diameter1200 mm
  • Turning height600 mm
  • Motor power60 HP/kW
  • Positions ATC0
  • Positions APC0
  • CNC BrandECS
  • CNC Model2702 D

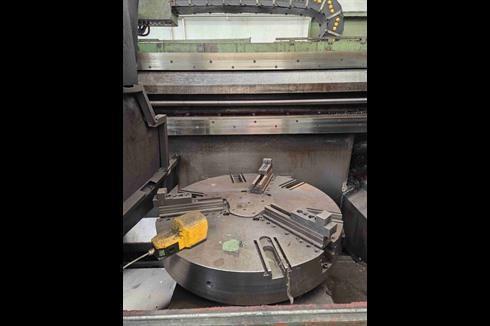

N. 1 SELF CENTERING CHUCK Ø 1.150   MM.
MAX. WORKING Ø 1.200   MM.
N. 1 SELF CENTERING CHUCK Ø 900   MM.
MAX. WORKING Ø 1.000   MM.
MAX. WORKING HEIGHT 600   MM.
MAX WEIGHT ON TABLES 1.000   KG.

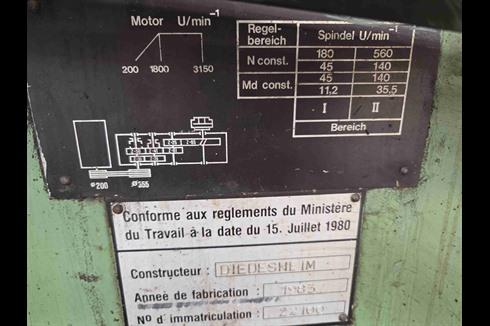

TABLES SPEEDS 11,2 ÷ 560   RPM.
TABLE MOTORS POWER 2 X 60   KW.

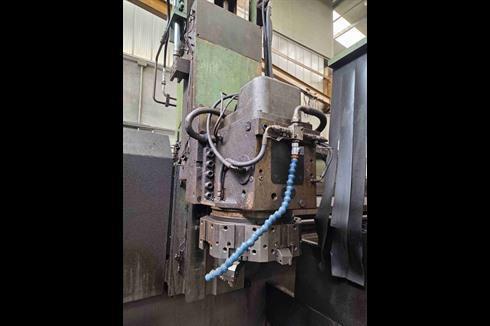

N. 1 VERTICAL TOOL WITH 7 POSITIONS AUTOMATIC SQUARE TURRET:
- VERTICAL TRAVEL (Z) 816   MM.
- TRANSVERSAL TRAVEL (X) 2.618   MM.
WORKING FEEDS (Z; X) 1 ÷ 8.000   MM/MIN.

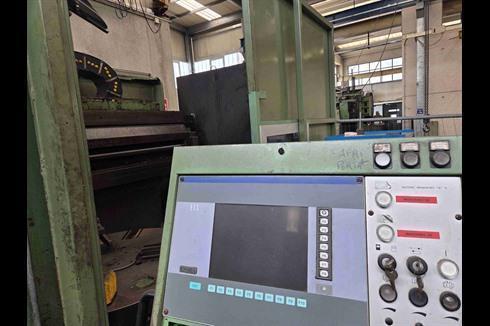

CNC ECS 2702 D
TOTAL WEIGHT 32   TONS.
BUILT/RETROFITTED IN 1983/2003

Dealer: NUOVA LOMBARMET SPA
