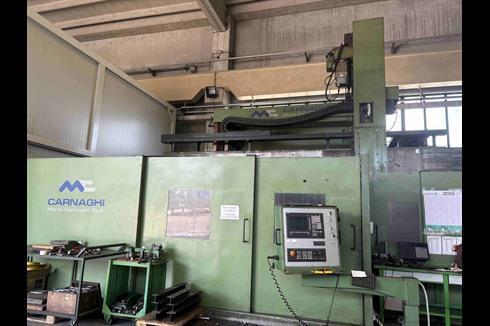

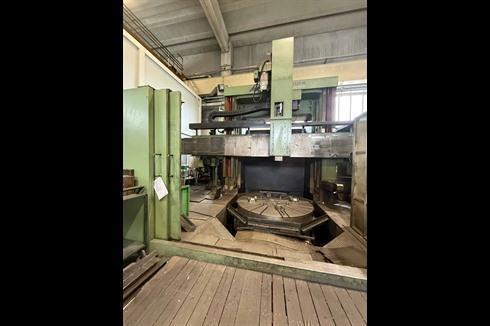

Carnaghi - TGP 20-25 CNC

Carnaghi - TGP 20-25 CNC
  • Carnaghi - TGP 20-25 CNC
  • Carnaghi - TGP 20-25 CNC
  • Carnaghi - TGP 20-25 CNC
  • Carnaghi - TGP 20-25 CNC
  • Carnaghi - TGP 20-25 CNC
  • Carnaghi - TGP 20-25 CNC
  • Carnaghi - TGP 20-25 CNC
  • Carnaghi - TGP 20-25 CNC
  • Carnaghi - TGP 20-25 CNC

Price request
  • BrandCarnaghi
  • Type/ModelTGP 20-25 CNC
  • Stock NumberTGP-20-25
  • Year2005

Technical details

  • Table diameter2500 mm
  • Turning diameter3000 mm
  • Turning height2700 mm
  • Motor power60 HP/kW
  • Positions ATC40
  • Positions APC12
  • CNC BrandSiemens
  • CNC Model840 D

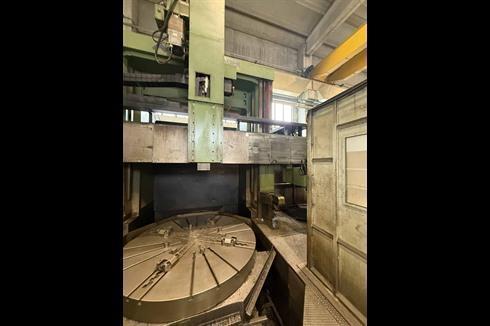

TABLE Ø 2.500   MM.
MAX. WORKING Ø 3.000   MM.
MAX. WORKING HEIGHT 2.700   MM.
MAX. HEIGHT UNDER THE CROSSRAIL 3.000   MM.
MAX WEIGHT ON TABLE 35   TONS.
TABLE MOTOR POWER 60   KW.
TABLE SPEEDS 0,4 ÷ 170   RPM.
TABLE TRAVEL (Y) + 750 / - 750   MM.
"C" AXIS

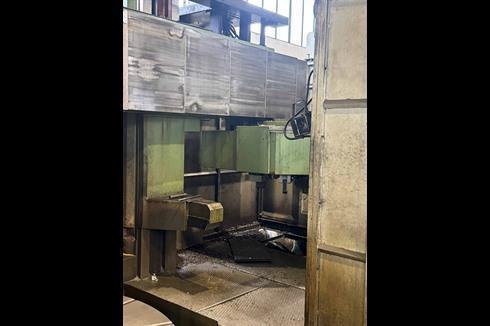

N. 1 RAM TYPE VERTICAL TOOL FOR TURNING AND MILLING:
- RAM SECTION 250 x 250   MM.
- RAM VERTICAL TRAVEL (Z) 1.500   MM.
- MILLING MOTOR POWER 22   KW.
- SPINDLE TAPER ISO 50
WORKING FEEDS 0 ÷ 10.000   RPM.
CNC SIEMENS 840 D
BUILT IN 2005
COMPLETE WITH:

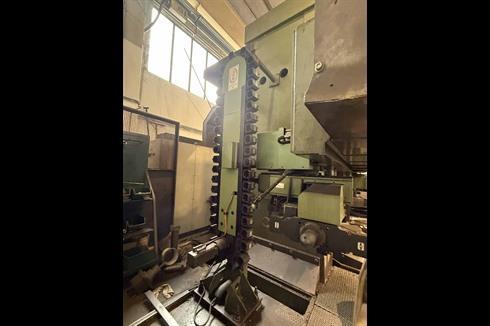

- 40 SEATS ATC FOR MILLING
- 12 SEATS ATC FOR TURNING

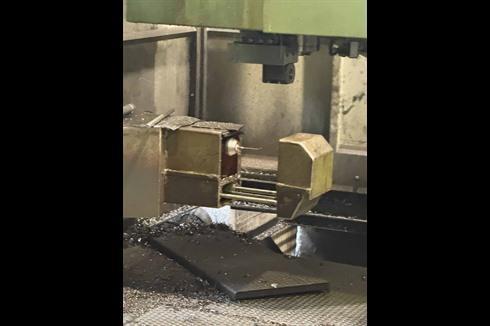

- N. 1 ANGULAR MILLING HEAD
- N. 1 VERTICAL MILLING HEAD
- RENISHAW
- TURNING AND MILLING TOOL HOLDERS
- CHIPCONVEYOR

Dealer: NUOVA LOMBARMET SPA
