Technical details

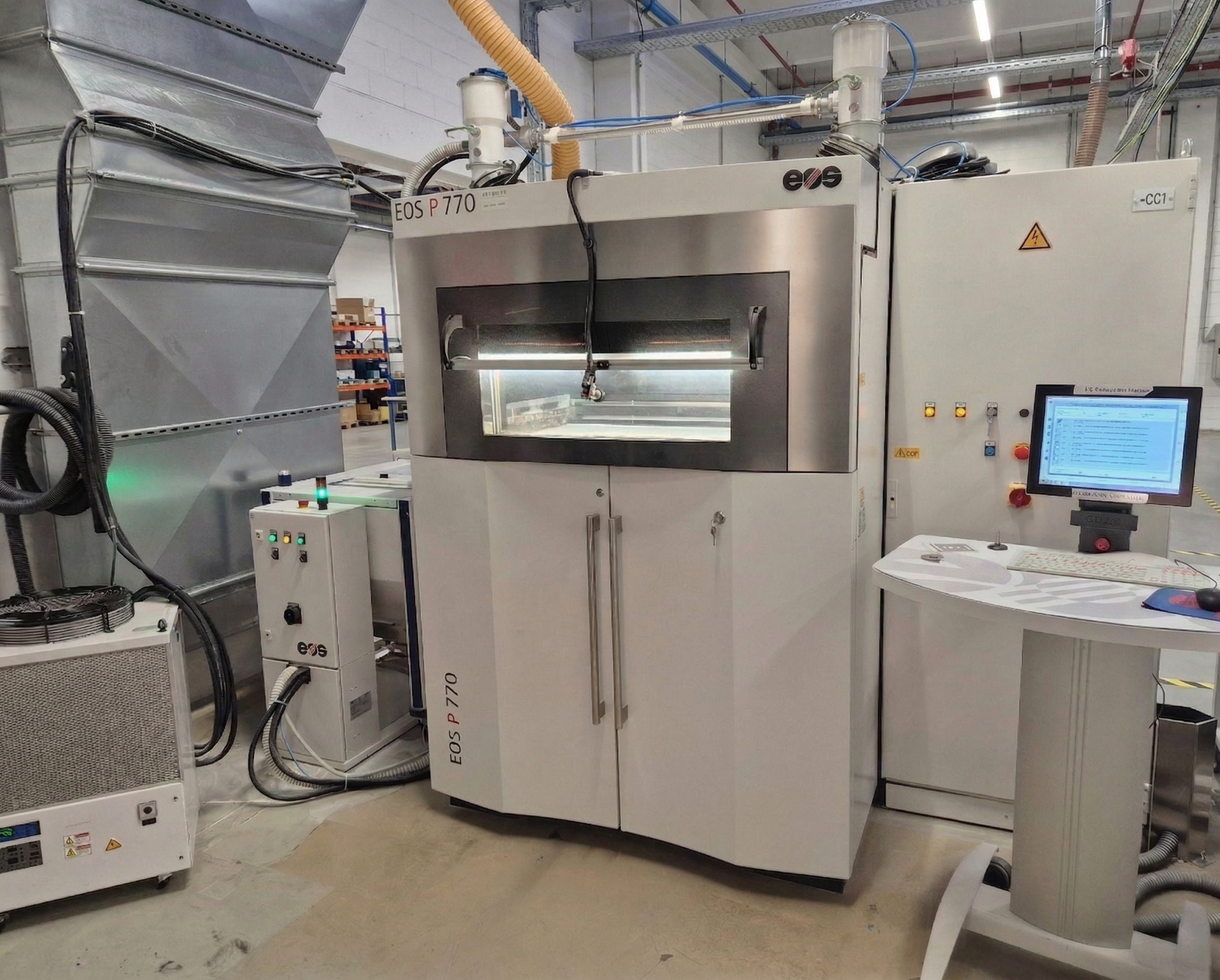

3D printerEOS - P770
MACH-ID 9594
Make: EOS
Type: P770
Year: 2020
Build Volume
700 x 380 x 580* mm (27.6 x 15.0 x 22.8 in)
Laser Type
CO₂; 2 x 70 W
Presicion Optics
2 F-theta-lens(es); 2 High-speed scanner(s)
Scan Speed
up to 10.0 m/s (32.8 ft/s)
Power Supply
1 x 32 A
Power Consumption
max. 12.0 kW / typical 3.1 kW
Machine Dimensions
2250 x 1550 x 2100 mm (88.6 x 61.0 x 82.7 in)
Recommended Installation Space
min. 4800 x 4800 x 3000 mm (189.0 x 189.0 x 118.1 in)
Weight
approx. 2300 kg (5071 lbs)
Software
EOS SYSTEM SUITE
** typical build rate for PA 2200 for 120 μm (0.00472 in) layer thickness
Materials &Processes
EOS has extremely high materials expertise and a comprehensive portfolio of highly developed polymer materials for additive manufacturing. Our materials, systems and process parameters fit together optimally. With the right materials, you can realize the target property profiles in the best possible way for your products. Explore below which polymer materials and processes are compatible with the EOS P 770.
Dealer: MACH4METAL BV
Price request
