Technical details

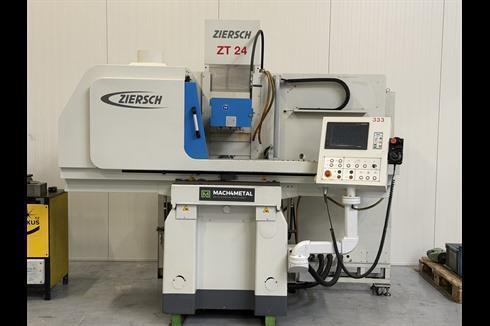

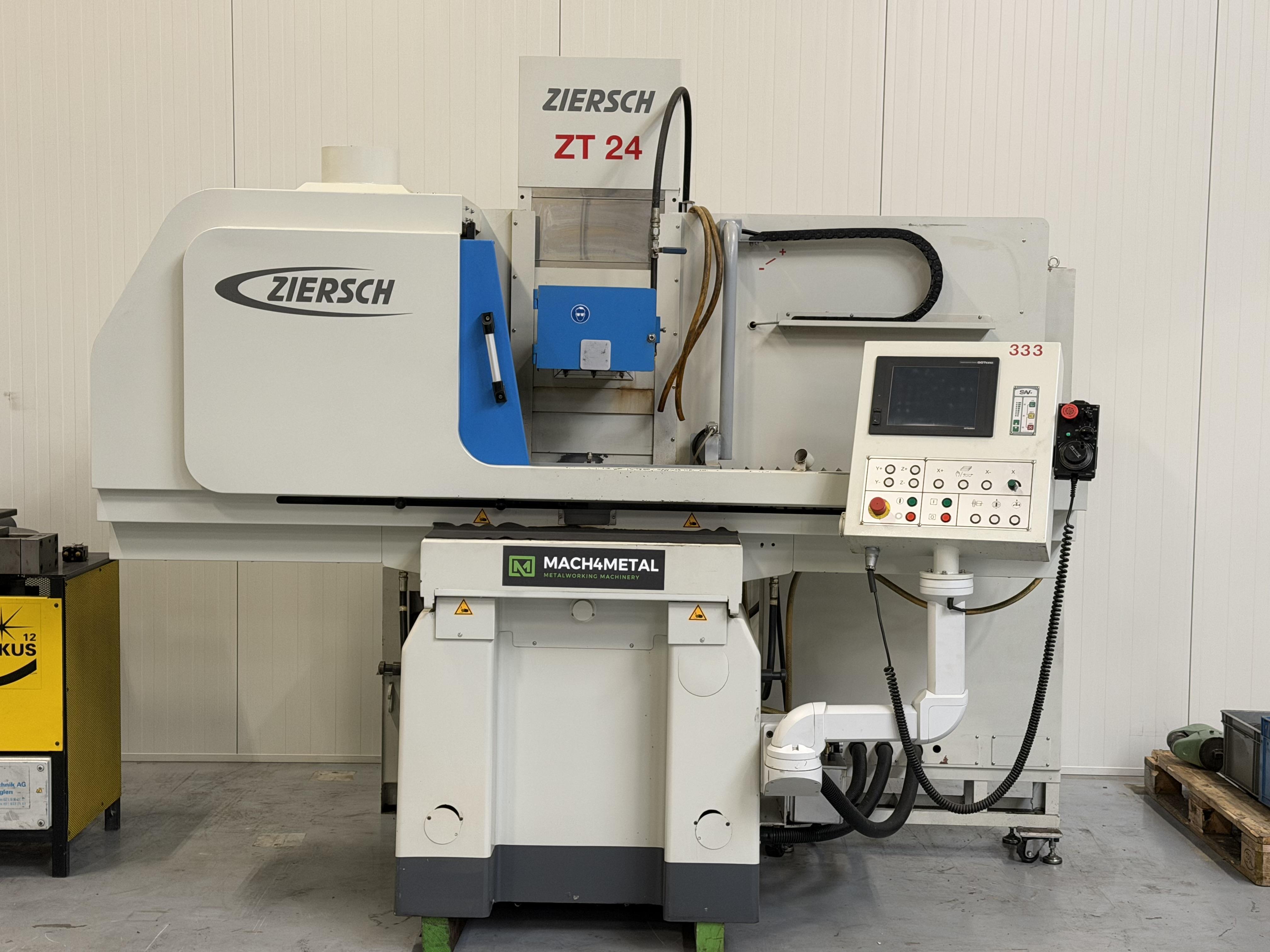

Surface grinderZiersch - ZT 24
MACH-ID 9344

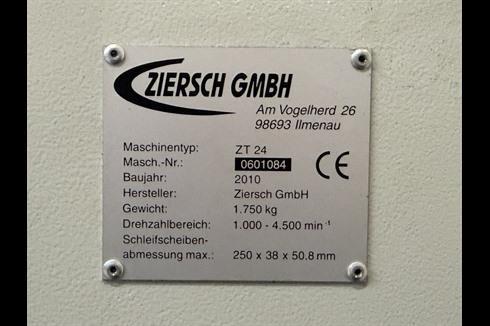

Make: Ziersch
Type: ZT 24

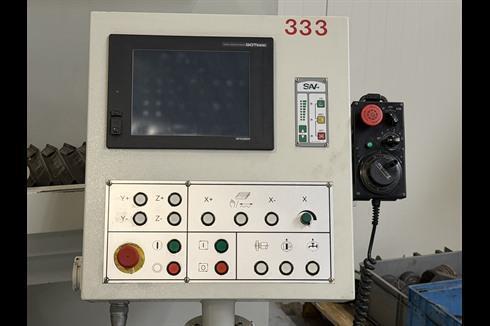

Control: Mitsubishi TOUCH Panel
Year: 2010
Sturdy, cast iron execution of all machine components
High machine weight for maximum rigidity
Preloaded precision linear guideways in the vertical- and cross axis (Bosch Rexroth) for highest accuracy
Scraped and turcite coated slideways in the longitudinal axis provide excellent vibration absorption and a high-quality grinding surface pattern.
Hydraulic longitudinal motion with return cooling unit to achieve good surfaces
Electro-mechanic cross- and vertical motion
Measuring systems in vertical axis (Heidenhain) for precise positioning
Maintenance-free paper band filtration unit with up to 500 l tank and 2-bar pressure pump for effective cooling and rinsing
Integrated rinsing channel
Magnetic separator for prefiltration of the paper band filtration unit
Infinitely variable grinding spindle motor
Machine lamp

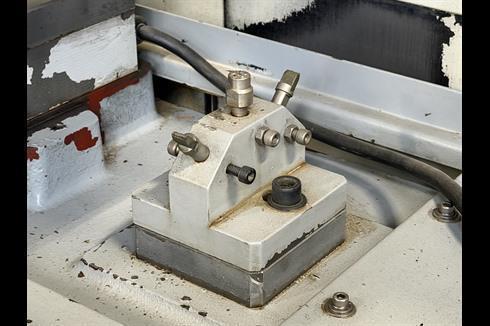

Table-mounted dressing device for high precision and surface finish

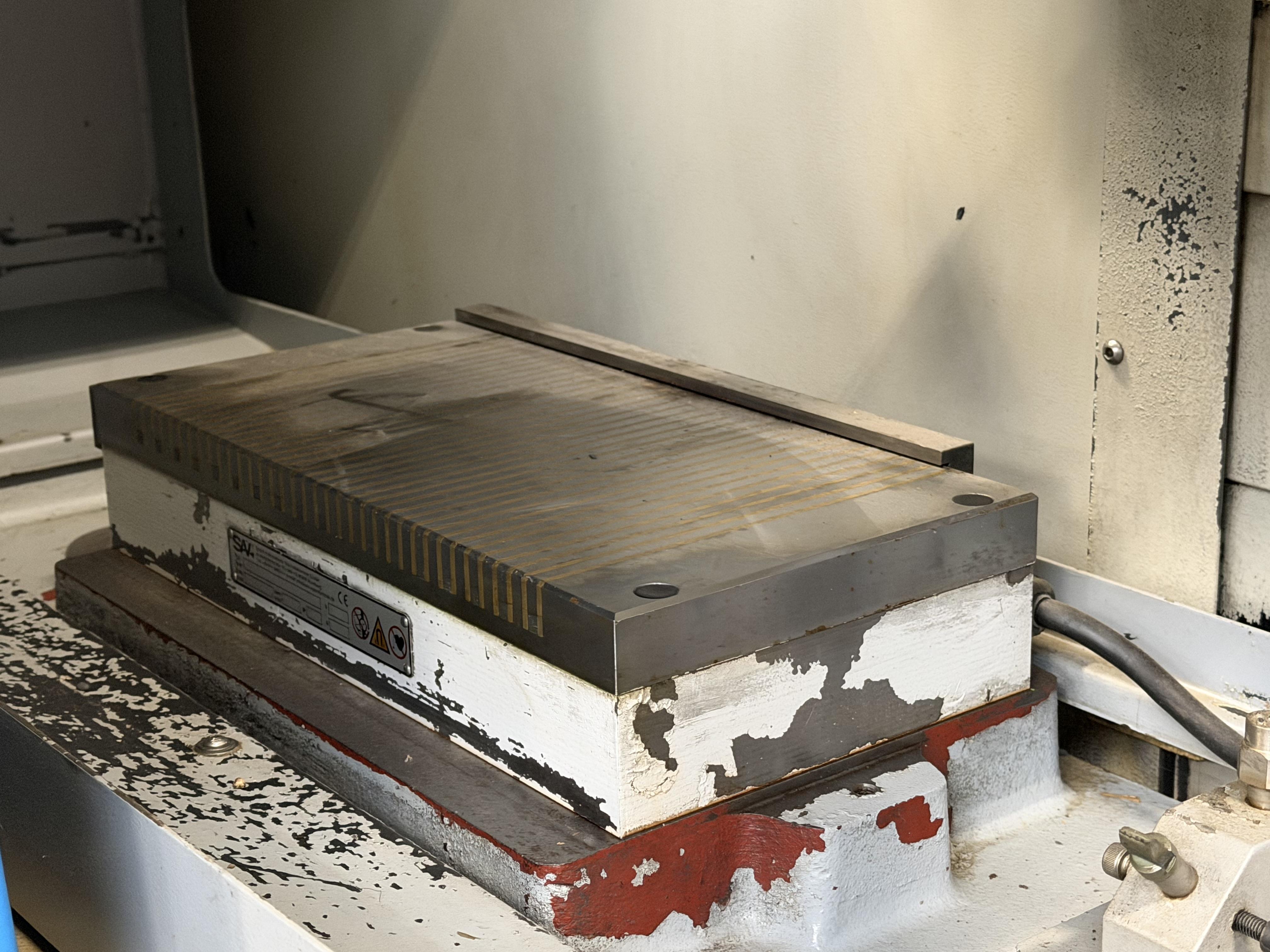

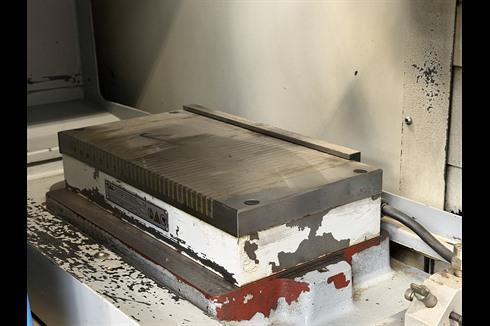

Electro-permanent magnetic chuck (SAV) with integrated pole changing unit and traction regulation
Partial encapsulation of the machine with sliding door and a service door
Effective splash guard and an excellent accessibility
Preparation of the machine for installation of a coolant mist exhaust unit

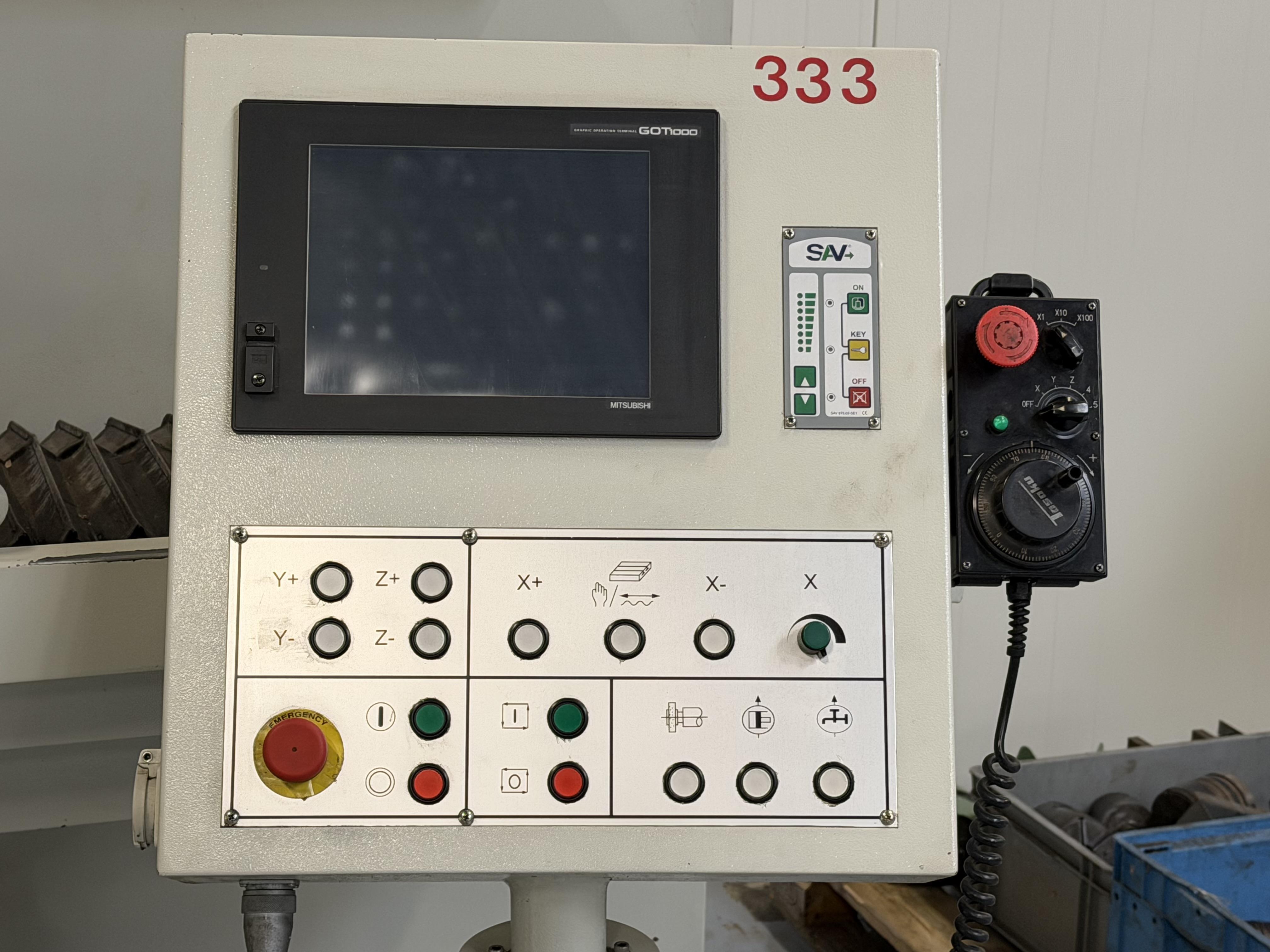

Control system features:
Very comfortable and easy to operate Z-control
Automatic vertical infeed with dressing amount compensation
Fully automatic grinding cycle with dressing cycles
Easy operation via touchscreen
Large and clear colour screen (10.4")
Electronic handwheel, usable in vertical- and cross axis
X - Travel: 600mm
Y - Travel: 220mm
Z - Travel: 540mm
Table Length: 400mm
Table Width: 250mm
Table load: 250
Feed rate X-Axis: 30000mm/min.
Feed rate Z-Axis: 30000mm/min.

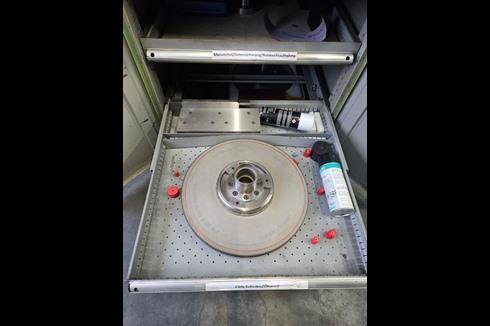

Grinding stone dimensions:250 x 38 x 50,8mm
Power: 3,7kW
Speeds: 4500Rpm
Cooling system: Yes
Feed rate Y-Axis: 30000mm/min.
Length: 3050mm
Width: 2050mm
Height: 2510mm
Weight: 2900kg
Dealer: MACH4METAL BV
Price request
