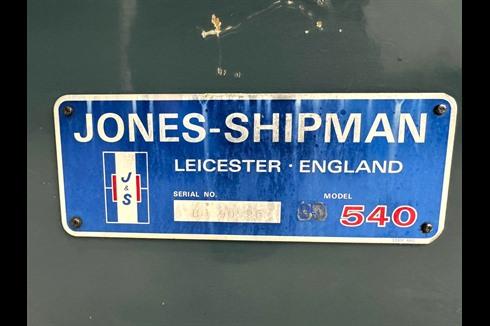

Jones & Shipman - 540

Jones & Shipman - 540
  • Jones & Shipman - 540
  • Jones & Shipman - 540
  • Jones & Shipman - 540
  • Jones & Shipman - 540
  • Jones & Shipman - 540
  • Jones & Shipman - 540
  • Jones & Shipman - 540

Price request

Technical details

  • Grinding length483 mm
  • Grinding width153 mm
  • Grinding height355 mm
  • Wheel diameter180 mm
  • CNC BrandNo CNC
  • CNC Modelx

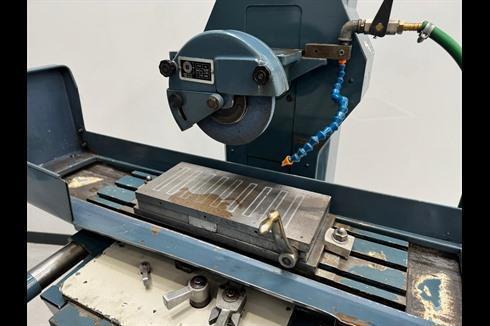

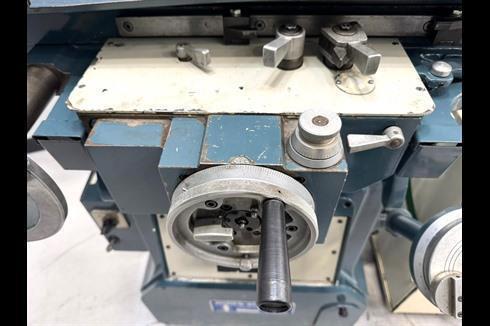

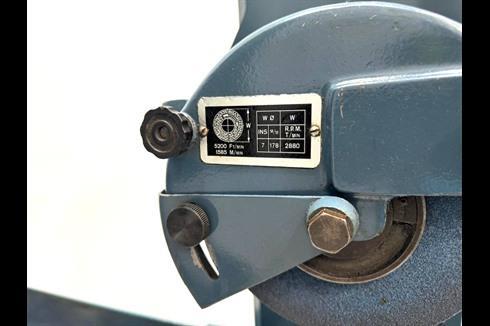

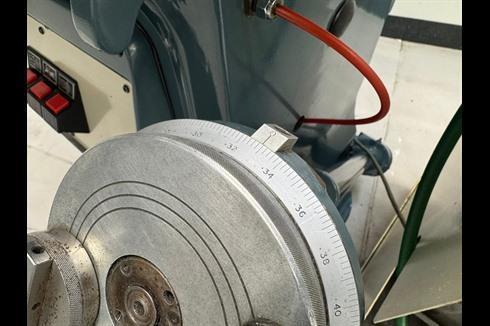

Table size 457 x 153mm. Longitudinal travel of table 483mm. Total cross traverse of table 168mm. Traverse speed range per min 1.5 – 18m. Table traverse per revolution of handwheel 60mm. Grinding wheel size (standard) 180 x 13 x 31mm. 75mm bore. Grinding wheel size (max) 180 x 25 x 31mm. 75mm bore. Speed of grinding wheel 3000rpm. Wheelhead motor 1.5kW. Hydraulic pump motor 0.55kW. Hydraulic tank capacity 15.5 litres. Manual rise & fall to Wheelhead. Machine fitted with 355mm x 152mm Magnetic Chuck. Coolant & Dust Extraction. Approximate weight  915 kg.

Dealer: GM MACHINERY LTD
