Technical details

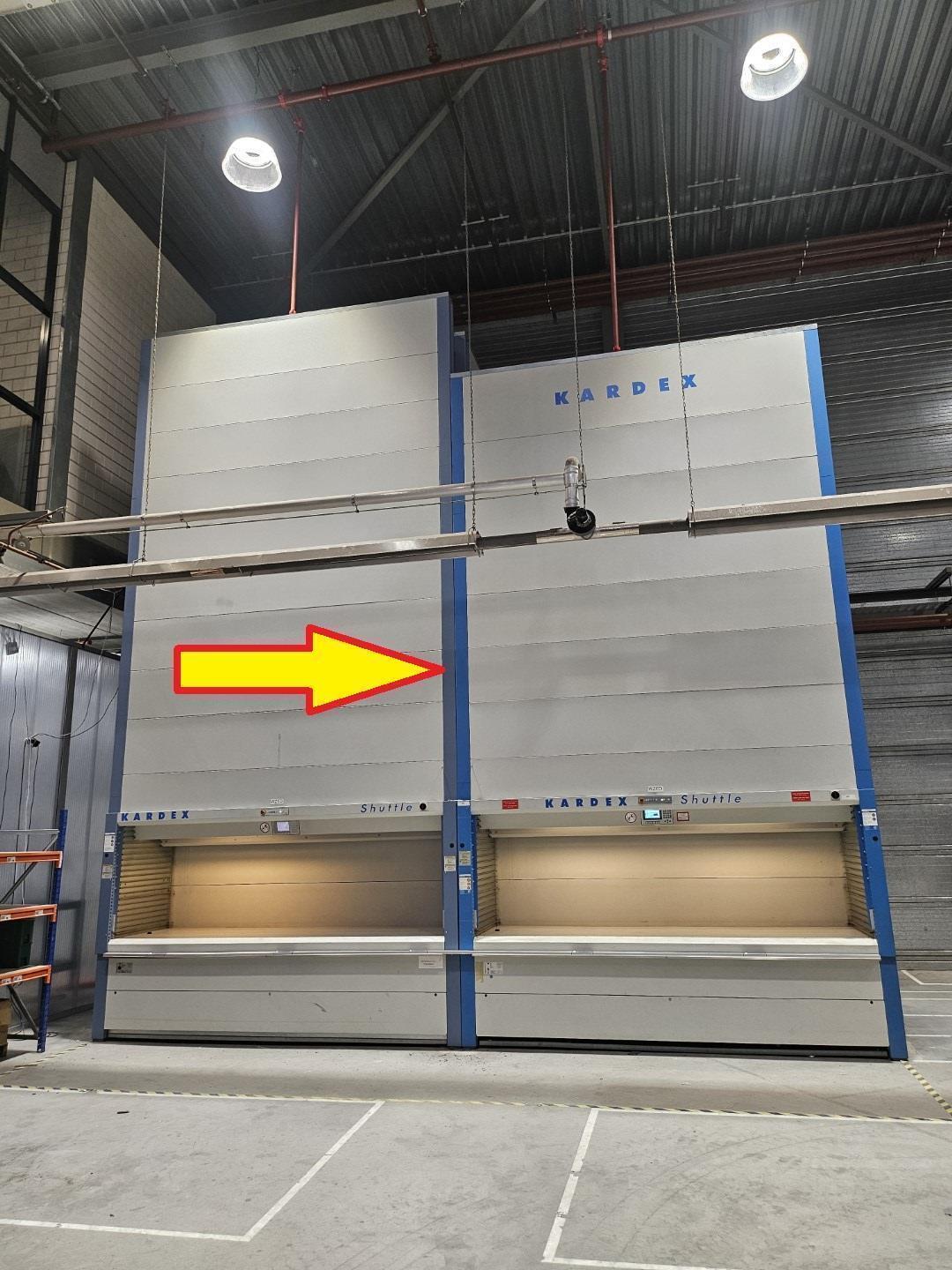

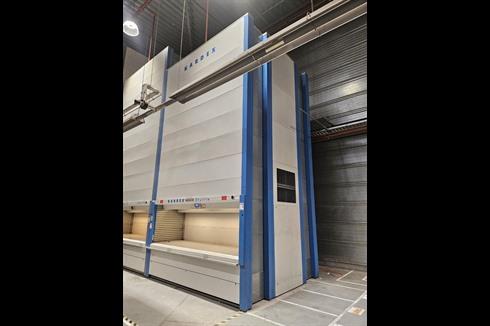

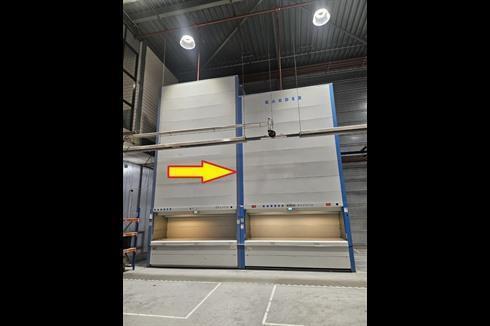

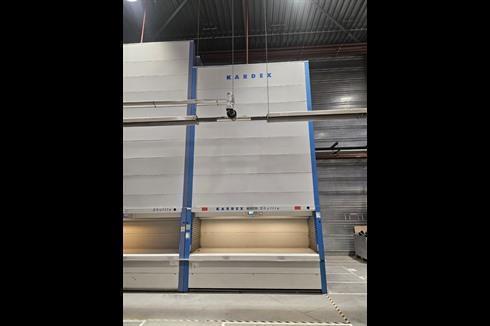

Geautomatiseerd magazijnoptimalisatie opslagsysteem KARDEX Shuttle XP500
System Type : SHUTTLE-XP-500-3050x864
Control : C2000, with B/W OP2000 display
Serial No. : 06007153/001
Year of construction : 2006 Total Load : 2 x 33.550 kg
Load per tray : Medium : 205 kg (evenredig verdeeld)
Tray dimension : 3050 x 864 mm
Number of tray's : 36 pieces (more or heavier trays on request)
Dimensions Shuttle W x D x H : 3380 x 3074 x 6050 mm
(height Kardex is adjustable to available height)
Power : 3/N/PE400 V , 11 A , 50/60 HZ , 4,9 kVA
Deze aanbieding is geldig mits systeem is onverkocht
Technical details each Shuttle:
- Maximum total capacity of the KARDEX Shuttle XP : 2 x 33.500 kg
- Maximum tray capacity : 36 tray's Medium : 210 kg each,
evenly distributed, more or heavier trays can be ordered.
- Tray dimensions : 3050 x 864 mm
- Machine dimensions : Wide x Depth x Height : 3380 x 3074 x 6050 mm
- Footprint of the system appx: 10,39 m2
- Capacity with 36 trays : appx. 95 m2 , every tray is appx. 2,64 m2
- Electronic volume measuring system in 25 mm screen (grid)

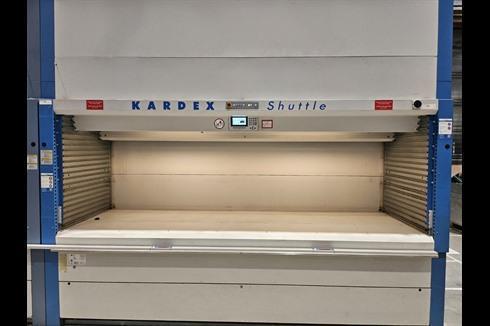

- An access opening with sliding doors to protect people and stored goods

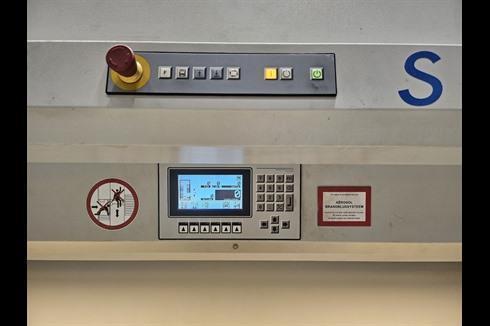

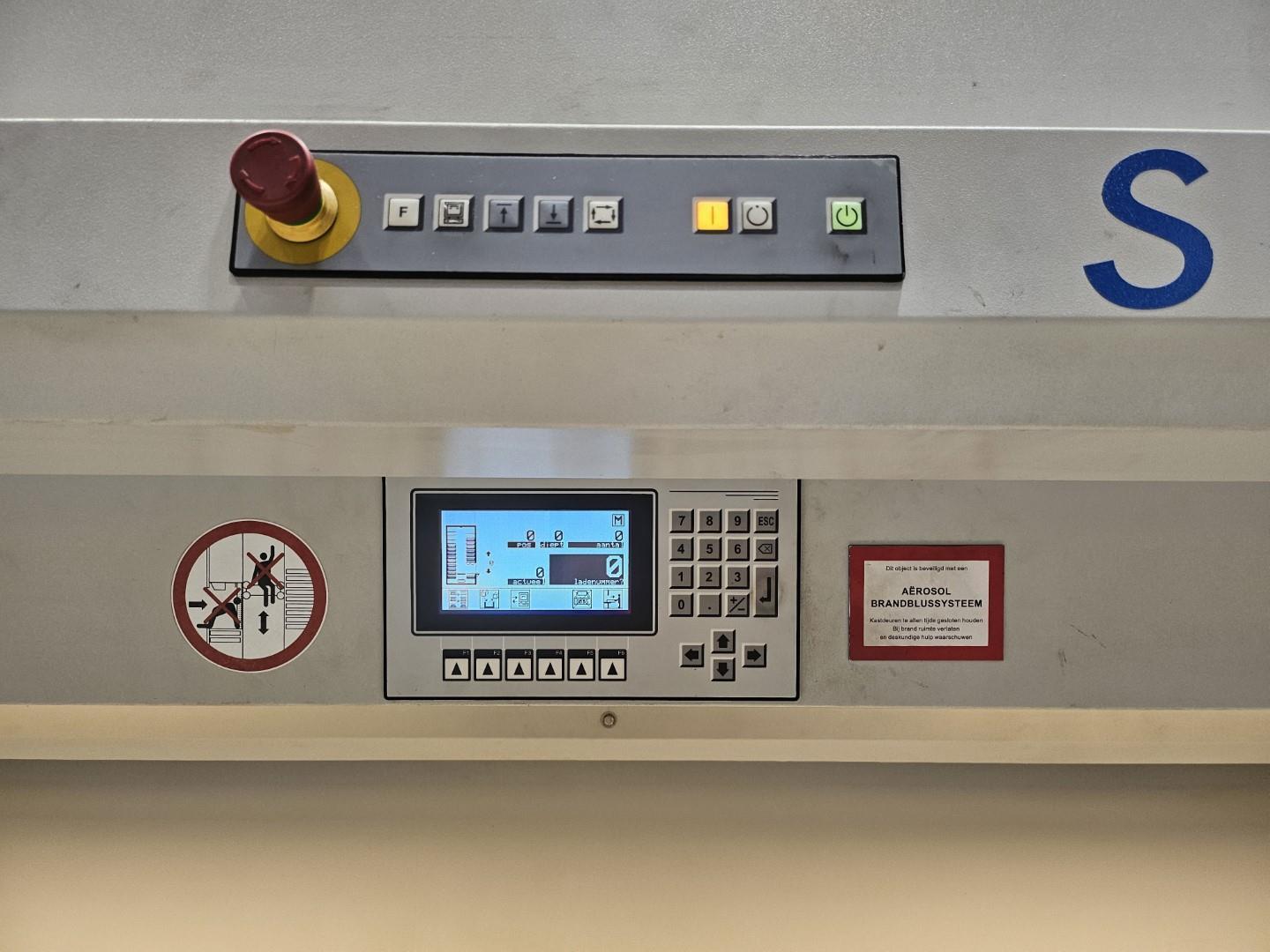

- Control C2000, with B/W OP2000 display

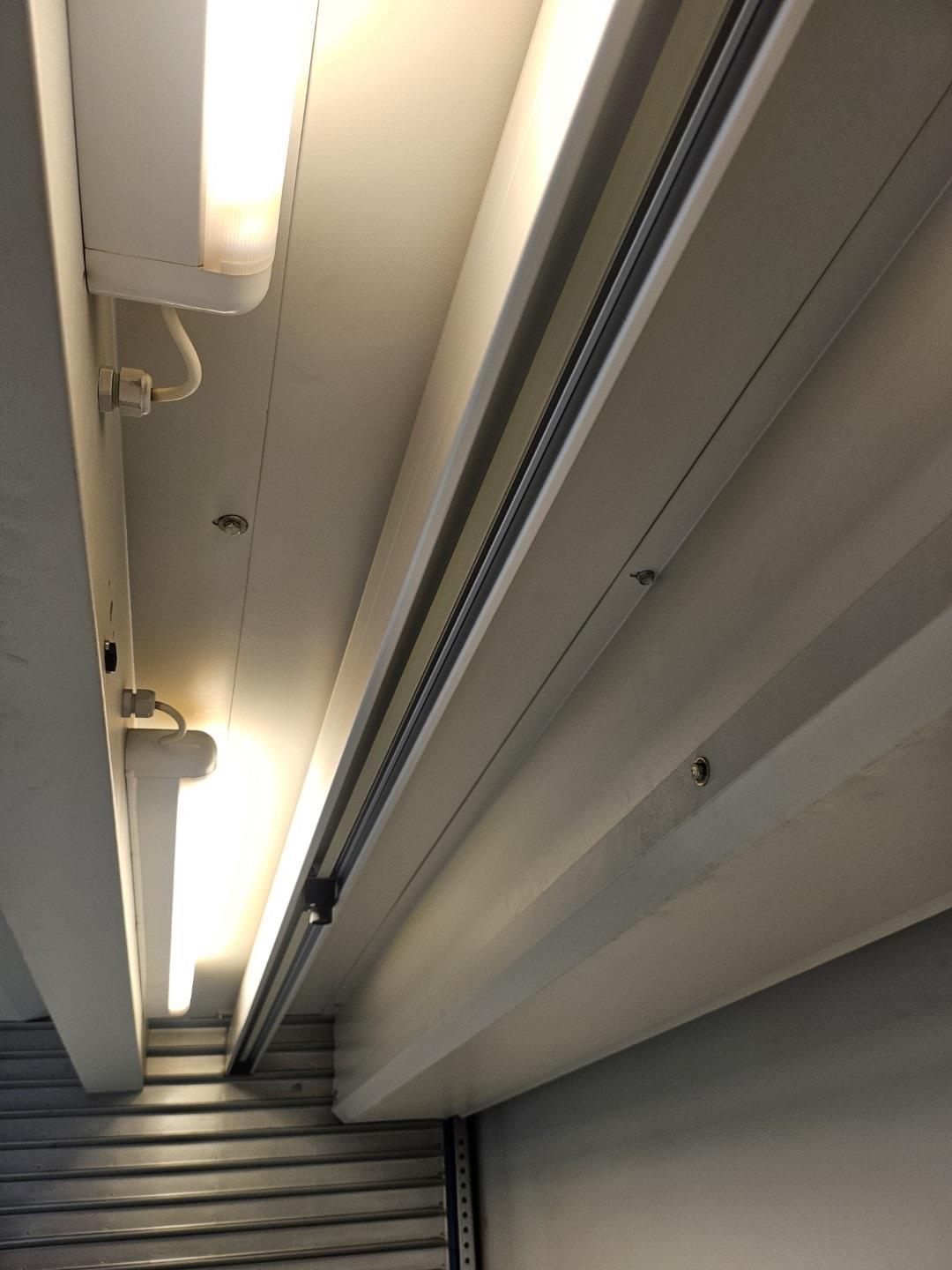

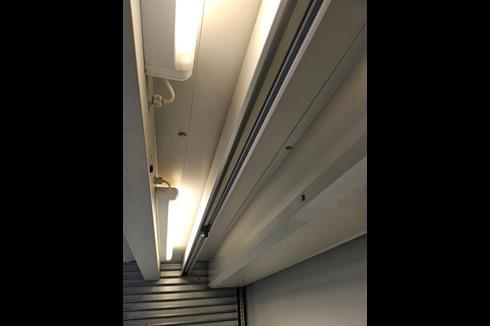

- LED anti-dazzle lighting above access point
- Use of toothed-belt for minimum noise
- Use of toothed-belt for fastest order picking
- Distances can be realized in steps of 25mm by arranging the support profile. a prerequisite for high compression storage
- Weight management controls the weight of the tray
- Including light pointer
Prijs : Op aanvraag alleen via e-mail
Prijs : excl. BTW, inclusief transport en montage
Levertijd : uit voorraad
Machinehandel De Leeuw BV is gespecialiseerd in gebruikte paternoster systemen van onder andere Kardex , Hanel / Haenel , Electrolux , Bertello , Megamat , Lista , Denocard en automatische opslag systemen zoals de Kardex Shuttle XP en XPlus systemen.
