Technical details

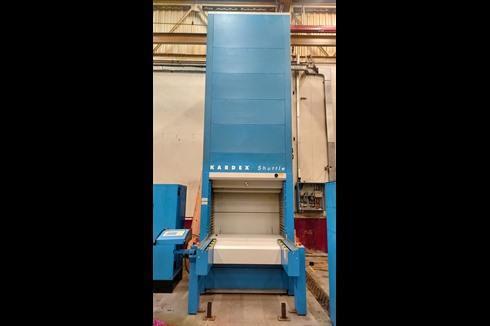

Geautomatiseerd magazijnoptimalisatie opslagsysteem KARDEX Shuttle XP250
System Type : SHUTTLE-XP-250-1250x610

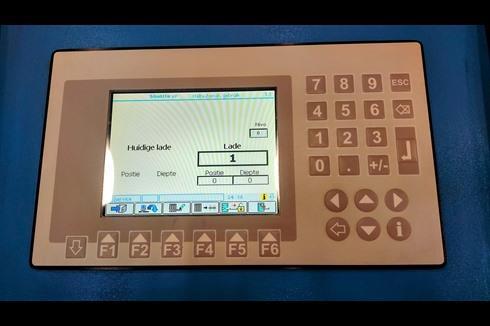

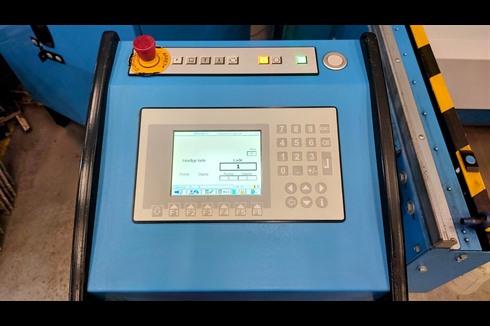

Control : C3000, with OP3000 OPGraphic color display
Serial No. : 11008569/001
Year of construction : 2011
Total Load : 2x33.500 kg
Load per tray : 310 kg
Tray dimension : 1250 x 610 mm
Number of tray's : 41 pieces (more on request)
Dimensions Shuttle W x D x H : 1580 x 2312 x 5050 mm
(height Kardex is adjustable to available height)
Dimensions Shuttle D with full tray extraction table : 3182 mm
Power : 3/N/PE400 V , 17 A , 50/60 HZ , 8,6 kVA
Deze aanbieding is geldig mits systeem is onverkocht
Technical details each Shuttle:
- Maximum total capacity of the KARDEX Shuttle XP : 2 x 33.500 kg
- Maximum tray capacity : tray's Light , 310 kg each , evenly distributed ,
more trays can be ordered.
- Tray dimensions : 1250 x 610 mm
- Machine dimensions : Wide x Depth x Height : 1580 x 2312 (3300) x 5050 mm
- Footprint of the system appx: 5,21 m2
- Capacity with 41 trays : appx. 31,3 m2 , every tray is appx. 0,76 m2
- Electronic volume measuring system in 25 mm screen (grid)
- An access opening with sliding doors to protect people and stored goods
- Control C3000 with graphic colour display OP 3000
- LED anti-dazzle lighting above access point
- Personal Key-code possibility
- Containers locking / security
- Use of toothed-belt for minimum noise
- Use of toothed-belt for fastest order picking
- The working positions can be adjusted individually depending on the body size
- Distances can be realized in steps of 25mm by arranging the support profile.
a prerequisite for high compression storage
- Weight management controls the weight of the tray/Shuttle
- Weight management controls the speed regulation
- Automatic full tray extraction table
Prijs : Op aanvraag alleen via e-mail
Prijs : excl. BTW, inclusief transport en montage
Levertijd : uit voorraad
