Technical details
material width: 300 mm
material thickness: 20 mm
no of straightening rolls: 6
cross cut max: 600 mm²
total power requirement: kW
weight of the machine ca: 06 t
dimensions of the machine ca: 11 x 074 x 18 m

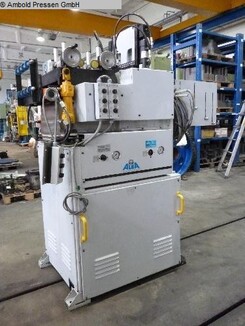

Straightening machine: feed rollers number 2 - diameter 120 mm, straightening
rollers number 6 - diameter 45 mm, center distance 80 mm, take-off speed 5-20 m/
min, Deduction height above floor 1500 mm, dimensions 1100x740x1800 mm,
weightapprox. 600 kg
The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Dealer: AMBOLD PRESSEN GmbH
Price request
