Technical details
pressure: 320 t
chamfer lenght: 3050 mm
distance between columns: 2600 mm
column arm: 410 mm
ajustment speed: 100 mm/sec
working feed: 100 mm/sec
return speed: 100 mm/sec
stroke: 365 mm
dayligth: 530 mm
table height: 900 mm
oil volume: 250 ltr.
control: DNC 880 S
total power requirement: 37 kW
weight of the machine ca: 17250 kg.
range L-W-H: 4570 x 1820 x 3250 mm

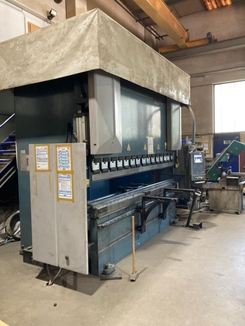

electro-hydraulic CNC press brake

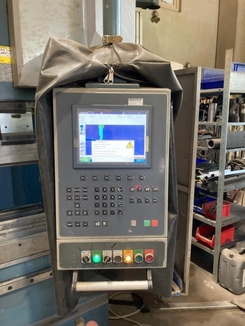

- with CYBELEC CNC control - “DNC 880S”

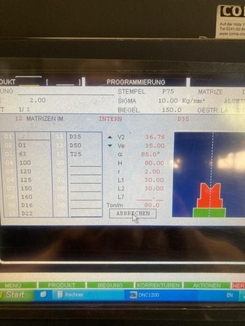

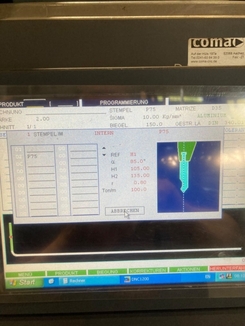

* 2D graphic display for display and multiple simulation
* Graphic 2D programming
* simple handling
* automatic bending sequence calculation and collision detection
* large product and tool library
* automatic tonnage calculation (pressure)
- swiveling operation, front right
- CNC-controlled axes : Y1 + Y2 + X + R + CNC crowning
- Upper beam with solid, self-lubricating quadruple guide

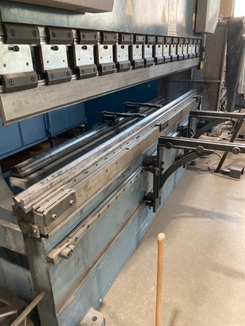

- CNC electro-motorized backgauge (X axis)
* with 2x manually adjustable stop fingers
* Adjustment range up to max. 650 mm
- CNC electro-motorized height adjustment of the backgauge (R axis)
* Adjustment range up to max. 250 mm
- CNC electro-motorized table crowning
- FIESSLER LASER safety device at the front
- 1x freely movable foot switch
- Large hydraulic oil tank to keep the operating temperature low
- original operating instructions
