Oerlikon - DM01

  • BrandOerlikon
  • Type/ModelDM01
  • Stock Number21307
  • Year1971
  • Price€ 000
  • WebsiteDM01

Technical details

  • Center height mm
  • Center distance mm
  • Spindle bore mm
  • CNC Brand
  • CNC Model


Technical data
Centre height: 260 mm
Distance between centres: 2000 mm
Swing over cross-slide: 340 mm
Swing over bed: 520 mm
Swing in gap: 620 mm
Length of the gap: 145 mm
Workpiece weight on centres max.: 760 kg
Spindle hole: 42 mm
Taper in spindelstock metric: 50
Taper in spindle:
Camlock: D6"
Spindle speeds:
number (steps): 13
from: 20 rpm
up to: 1800 rpm
Pitch of leadscrew: 6 mm
Steep thread transmission: 6:1
Taper in tailstock:: 5 MT
Spindle diameter: 80 mm
Spindle stroke: 200 mm
Feeds:
length:
from: 0.045 mm/r
up to: 2.52 mm/r
Frontal:
from: 0.003 mm/r
up to: 1.75 mm/r
Voltage 50 Hz 3x: 380 Volt
Spindle motor: 15 HP
Machine's weight about: 2500 kg
Overall dimensions machine:
Length: 3740 mm
Width: 1300 mm
Height: 1600 mm

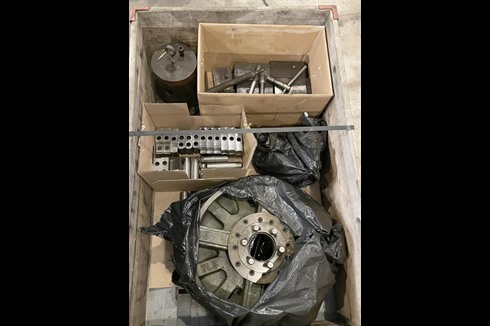

Various accessories:
Face plate diameter: 550 mm
3-jaw chuck diameter: 315 mm
Set of jaws hard
Set of jaws
Coolant system
Three-jaw bezel folds open
Quick change tool
Set of steel holders
Lamp
Drilling tailstock
Chip protector
